Data sheet PDF

Product Description

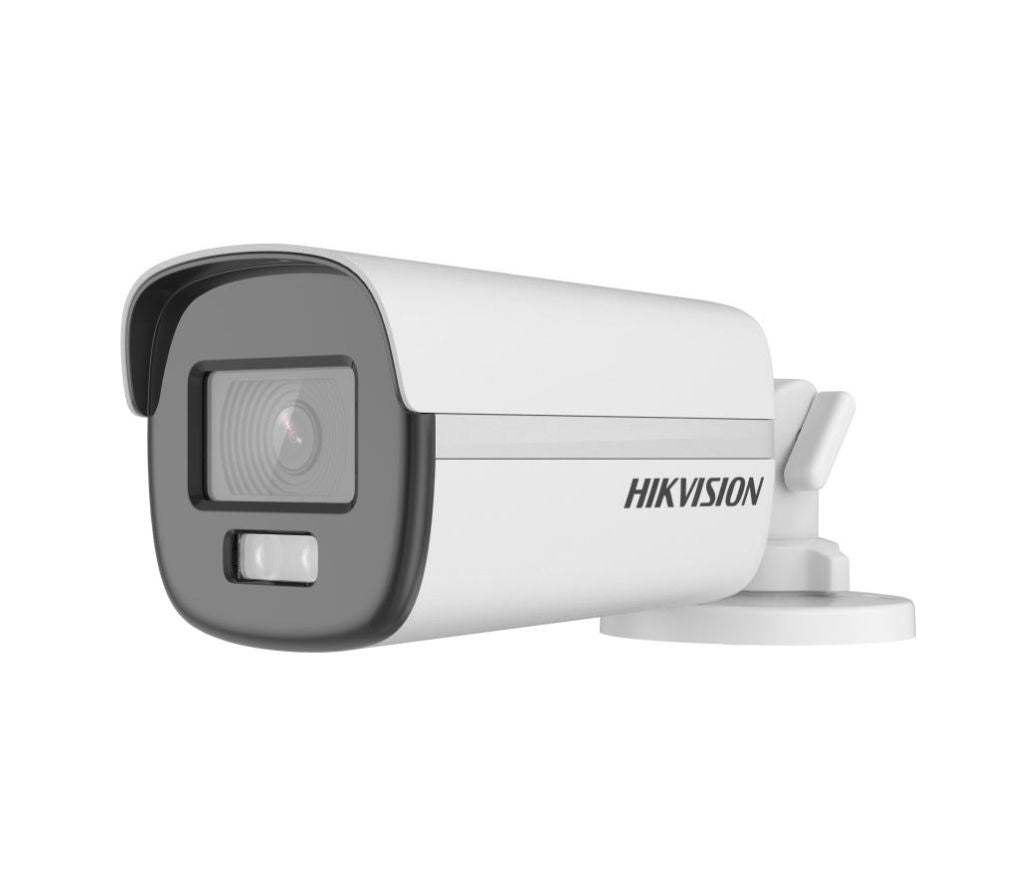

2 MP ColorVu Fixed Bullet Camera

• High quality imaging with 2 MP, 1920 ? 1080 resolution
• 24/7 color imaging with F1.0 aperture
• 3D DNR technology delivers clean and sharp images
• 2.8 mm, , 6 mmfixed focal lens
• Up to 40 m white light distance for bright night imaging
• Water and dust resistant (IP67)

Specification

• Camera
• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) ? 1080 (V)
• Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Angle AdjustmentPan: 0? to 360?, Tilt: 0? to 180?, Rotation: 0? to 360?
• Signal SystemPAL/NTSC
• Light AlarmSolid Light Alarm (White Light)
• Lens
• Lens Type2.8 mm, , 6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 98?, vertical FOV: 51?, diagonal FOV: 115?

  , horizontal FOV: 76?, vertical FOV: 41?, diagonal FOV: 90?

  6 mm, horizontal FOV: 50?, vertical FOV: 27?, diagonal FOV: 58?

• Lens MountM12
• Illuminator
• Supplement Light TypeWhite Light
• Supplement Light RangeUp to 40 m
• Smart Supplement LightYes
• Image
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image SettingsBrightness, Mirror, Sharpness, Anti-Banding, AGC
• Frame Rate

  TVI: 1080p@25fps/30fps

  CVI: 1080p@25fps/30fps

  AHD: 1080p@25fps/30fps

  CVBS: PAL/NTSC

• Day/Night ModeColor
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementDWDR, BLC, HLC, Global
• Noise Reduction3D DNR/2D DNR
• White BalanceAuto/Manual
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS
• General
• MaterialMetal
• Dimension194.2 mm ? 78 mm ? 74.5 mm (7.65" ? 3.07" ? 2.93")
• WeightApprox. 516 g (1.14 lb)
• Operating Condition-40?C to 60?C (-40?F to 140?F), Humidity: 90% or less (non-condensing)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power

  12 VDC ? 25%, Max. 4 W

  *You are recommended to use one power adapter to supply the power for one camera.

• Approval
• ProtectionIP67
