Data sheet PDF
Product Description

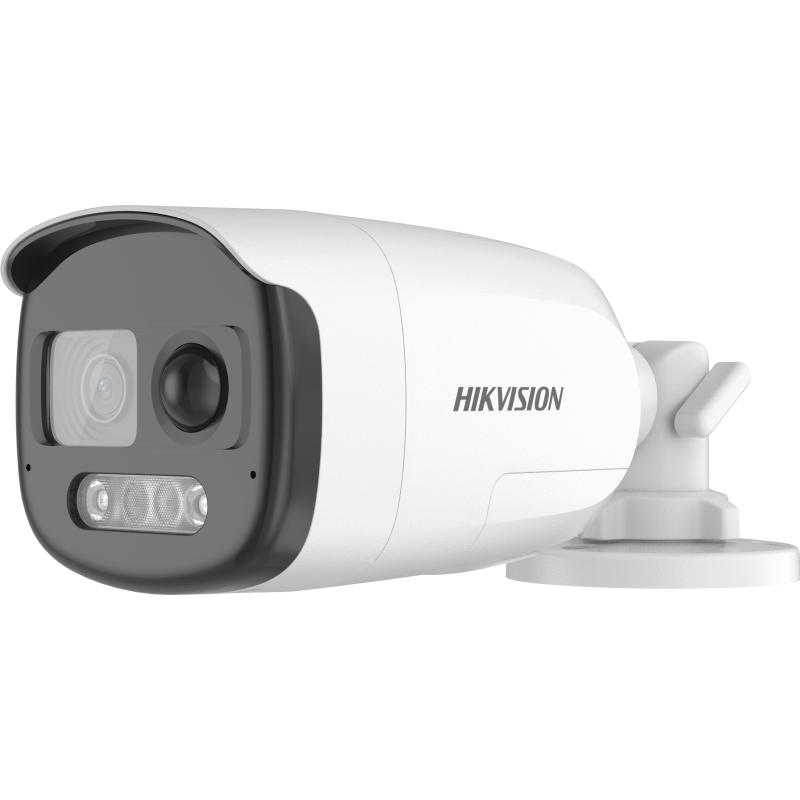

2 MP ColorVu PIR Siren Audio Fixed Bullet Camera
? Specification
Camera
Image Sensor 2 MP CMOS
Signal System PAL/NTSC
Resolution 1920 (H) ? 1080 (V)
Frame Rate TVI: 1080p @ 25 fps/30 fps
Min. Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Slow Shutter Max. 16 times
Lens 2.8 mm, 3.6 mm, 6 mm fixed focal lens
Field of View
2.8 mm, horizontal FOV: 98?, vertical FOV: 52?, diagonal FOV: 116?
3.6 mm, horizontal FOV: 77?, vertical FOV: 42?, diagonal FOV: 91?
6 mm, horizontal FOV: 51?, vertical FOV: 28?, diagonal FOV: 59?
Lens Mount M12
Light Alarm Flashing Light Alarm (Red & Blue)
Day & Night Color
WDR (Wide Dynamic Range) ?130 dB
Angle Adjustment Pan: 0? to 360?, Tilt: 0? to 180?, Rotation: 0? to 360?
Menu
White Light Auto/Off
Image Mode STD/HIGH-SAT/HIGHLIGHT
AGC Yes
Day/Night Mode Color
White Balance Auto/Manual
AE (Auto Exposure) Mode WDR, BLC, HLC, Global, HLS
Privacy Mask 4 programmable privacy masks
Motion Detection 4 programmable motion areas
Noise Reduction 3D DNR/2D DNR
Language English
Function Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding,
Smart Light
Interface
Video Output 1 HD analog output
Alarm 1 line out
Audio In Built-in mic
General
Operating Conditions -40?C to 60?C (-40?F to 140?F), Humidity: 90% or less (non-condensing)
Power Supply 12 VDC ? 25%
*You are recommended to use one power adapter to supply the power for one camera.
Consumption Max. 11.4 W
Protection Level IP67
Material Front cover: Metal, Main body: Plastic
White Light Range Up to 40 m
PIR Range Angle: 110?, Range: 11 m
Communication HIKVISION-C
Dimension 82.6 mm ? 77.1 mm ? 213.2 mm (3.25" ? 3.04" ? 8.39")
Weight Approx. 467 g (1.03 lb.)
? Dimension
? Accessory
? Optional
DS-
