DS-2CE12H0T-PIRLO
DS-2CE12H0T-PIRLO
Out of stock
Description
Description

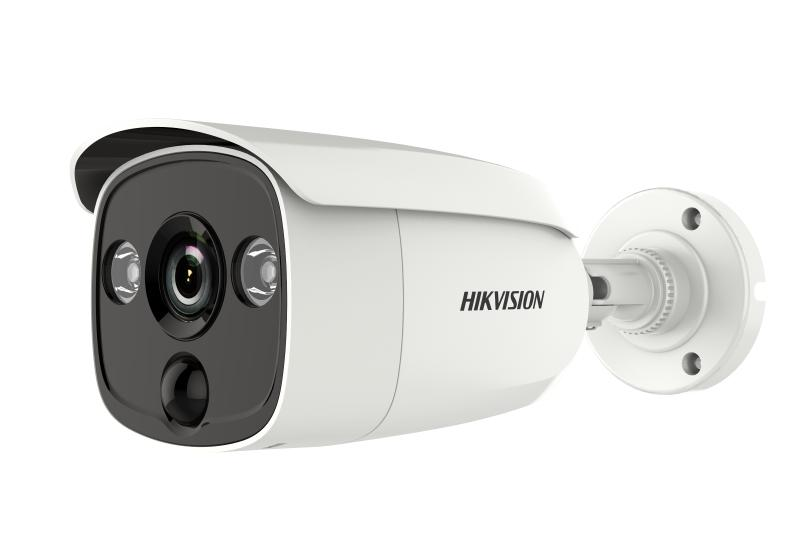

5 MP PIR Fixed Bullet Camera
- 5 MP PIR bullet camera
- PIR detection, strobe light alarm and alarm out to warn off intruders in real time
- EXIR 2.0: advanced infrared technology with 20 m IR distance
- Water and dust resistant (IP67)
Couldn't load pickup availability
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
5 MP PIR Fixed Bullet Camera
- 5 MP PIR bullet camera
- PIR detection, strobe light alarm and alarm out to warn off intruders in real time
- EXIR 2.0: advanced infrared technology with 20 m IR distance
- Water and dust resistant (IP67)
? Specification
Camera
Image Sensor 5 MP CMOS image sensor
Max. Resolution 2560 (H) ? 1944 (V)
Min. Illumination 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/20 s to 1/50,000 s
NTSC: 1/20 s to 1/50,000 s
Day ? Night ICR
Angle Adjustment Pan: 0? to 360?, Tilt: 0? to 180?, Rotate: 0? to 360?
Signal System PAL/NTSC
Lens
Lens Type 2.8 mm, 3.6 mm fixed lens
Focal Length ? FOV 91? (2.8 mm), 70? (3.6 mm), 45? (6 mm)
Lens Mount M12
Image Parameters Switch STD/HIGH-SAT
Image Settings Brightness, Sharpness, Mirror, Smart IR
Frame Rate TVI: 5 MP@20fps, 4 MP@25fps, 4 MP@30fps, 1080P@25fps, 1080P@30fps
Day/Night Mode Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement BLC
White Balance Auto/Manual
White Light AUTO/OFF
AGC Support
Interface
Video Output 1 HD analog output
General
Material
Front cover: Metal
Main body: Plastic
Dimension 88.6 mm ? 81.3 mm ? 224.7 mm (3.49" ? 3.20" ? 8.85")
Weight Approx. 443 g (0.98 lb.)
Operating Condition ?-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
Communication HIKVISION-C
Language English
Power Supply 12 VDC ? 25%
Consumption Max. 3.5 W
IR Range Up to 20 m
Approval
Protection IP67
