Product Description

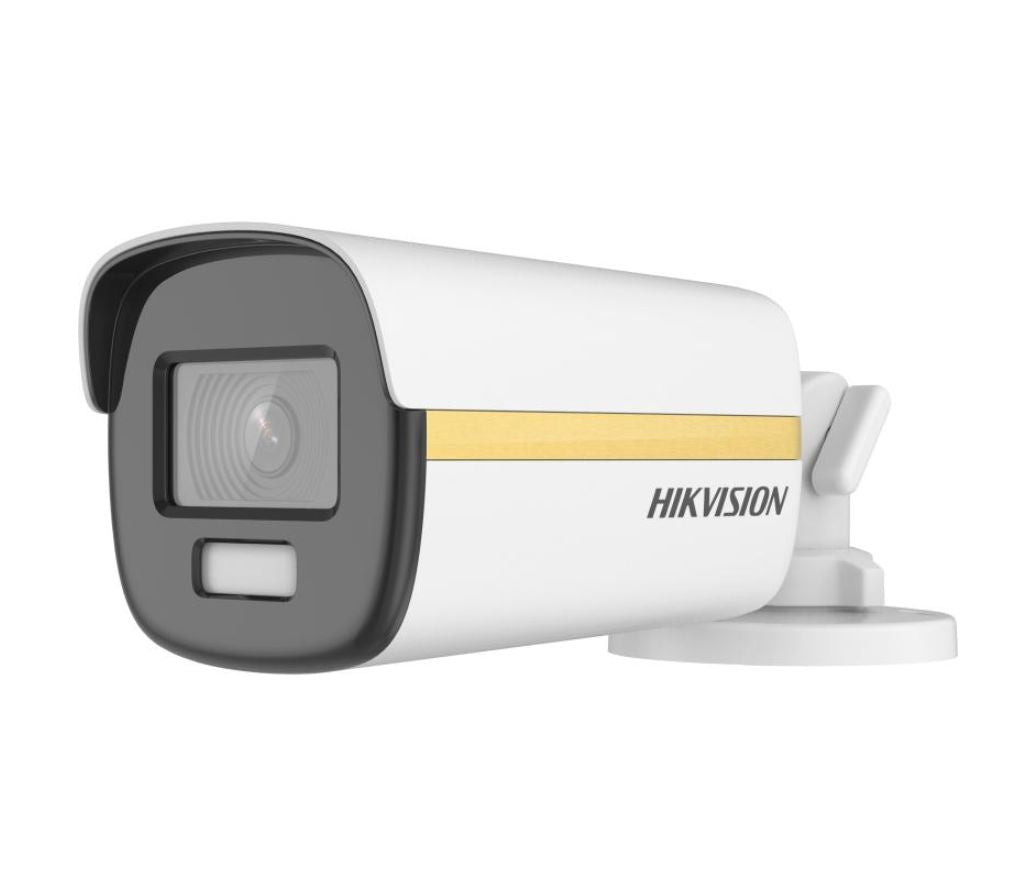

4K ColorVu PoC Fixed Mini Bullet Camera

• High quality imaging with 8 MP, 3840 ? 2160 resolution
• 24/7 color imaging
• Clear imaging against strong back light due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• 2.8 mm, , 6mm fixed focal lens
• Up to 40 m white light distance for bright night imaging
• Water and dust resistant (IP67)








Specification

Camera

Lens

Illuminator


Interface

Event

General

Approval

• Camera
• Image Sensor8 MP CMOS
• Signal SystemPAL/NTSC
• Max. Resolution3840 (H) ? 2160 (V)
• Min. Illumination0.0005 Lux@(F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
• Day & Night24/7 Color Imaging
• Angle AdjustmentPan: 0? to 360?, Tilt: 0? to 180?, Rotation: 0? to 360?
• Lens
• Lens Type2.8 mm, , 6mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 110?, vertical FOV: 59?, diagonal FOV: 131?

  , horizontal FOV: 93?, vertical FOV: 48?, diagonal FOV: 113?

  6 mm, horizontal FOV: 57?, vertical FOV: 30?, diagonal FOV: 67?

• Lens MountM16
• Illuminator
• Supplement Light TypeWhite Light
• Supplement Light RangeUp to 40 m
• Image
• Frame RateTVI: 8 MP @ 12.5 fps/15 fps, 3k/5MP @ 20 fps, 1080P @ 25 fps/30 fps
• Wide Dynamic Range (WDR)?130 dB
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Day/Night ModeColor
• White BalanceAuto/Manual
• Image EnhancementWDR, BLC, HLC, Global, HLS
• Privacy Mask4 programmable privacy masks
• Noise Reduction3D DNR/2D DNR
• Image SettingsBrightness, Contrast, Mirror, Sharpness, Anti-Banding, Smart Light, AGC
• Interface
• Video Output1 HD analog output
• AlarmSolid Light Alarm (White Light)
• Event
• Motion Detection4 programmable motion areas
• General
• LanguageEnglish
• Operating Condition-40?C to 60?C (-40?F to 140?F), Humidity: 90% or less (non-condensing)
• MaterialMetal
• CommunicationHIKVISION-C
• Dimension194.2 mm ? 78 mm ? 74.5 mm (7.65" ? 3.07" ? 2.93")
• WeightApprox. 566 g (1.25 lb.)
• Power

  12 VDC ? 25%/PoC.at, Max. 5.1 W

  *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.

• Approval
• ProtectionIP67
