Product Description

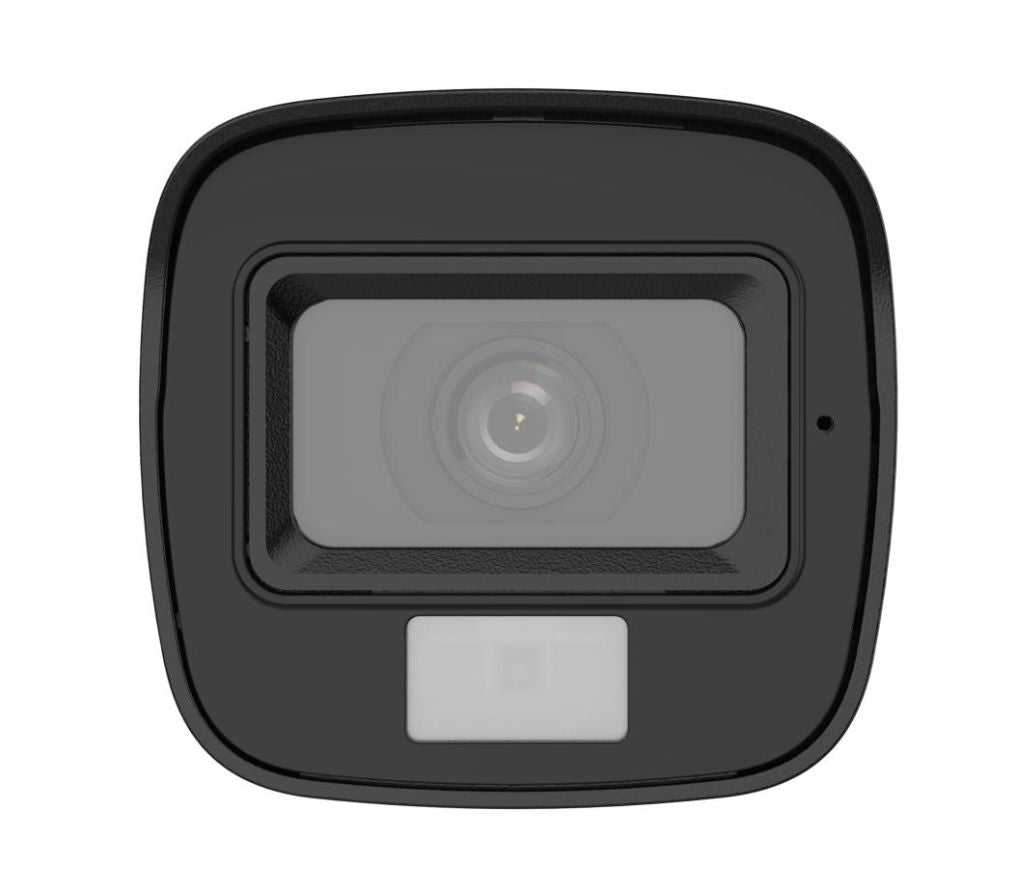

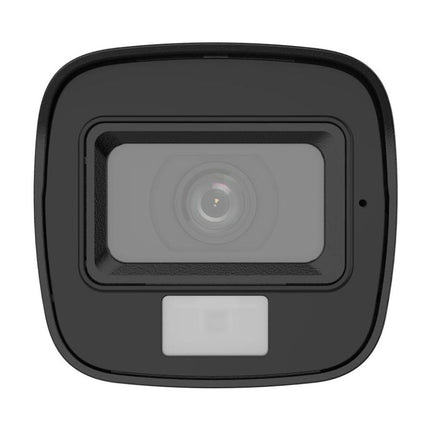

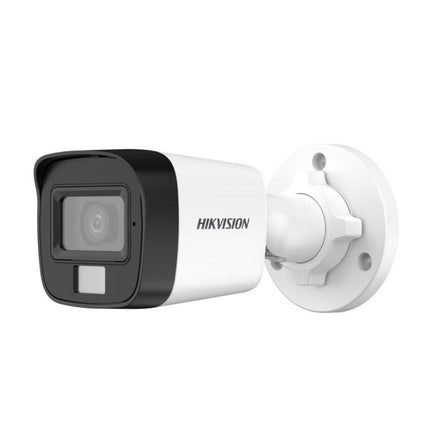

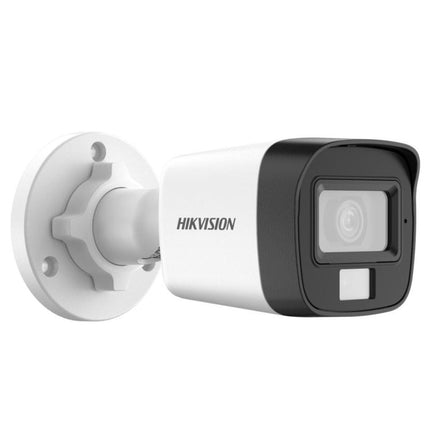

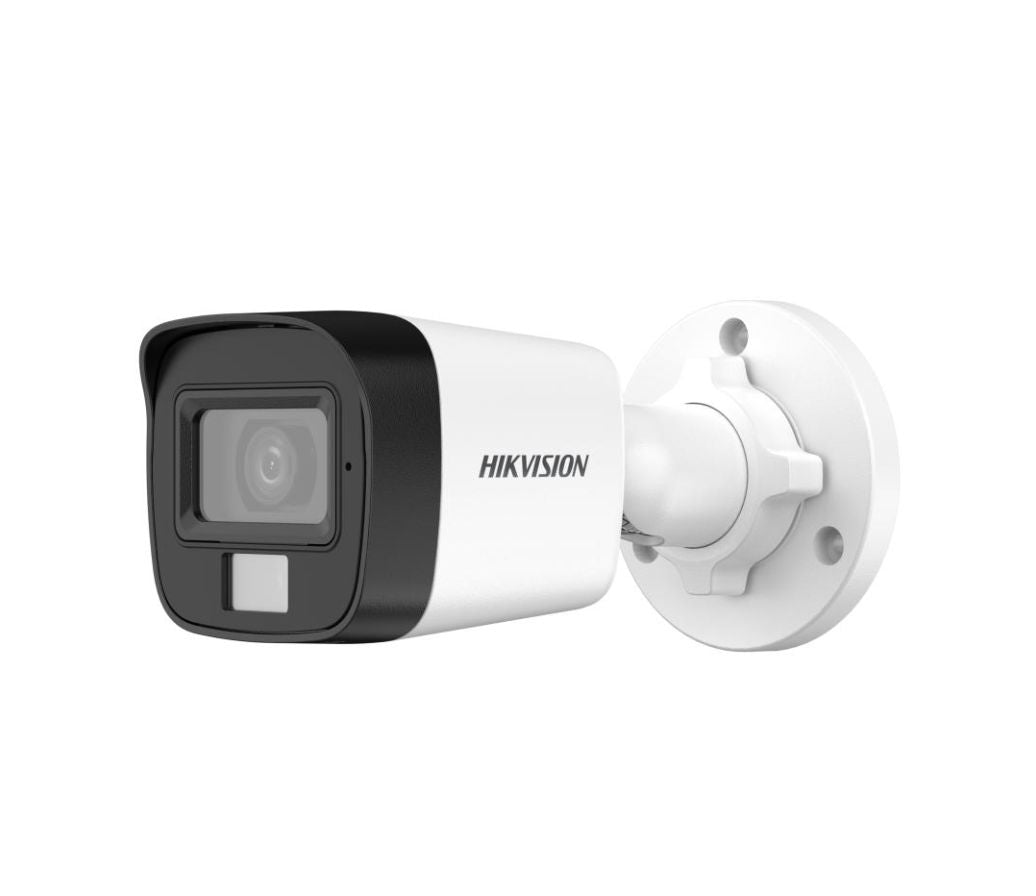

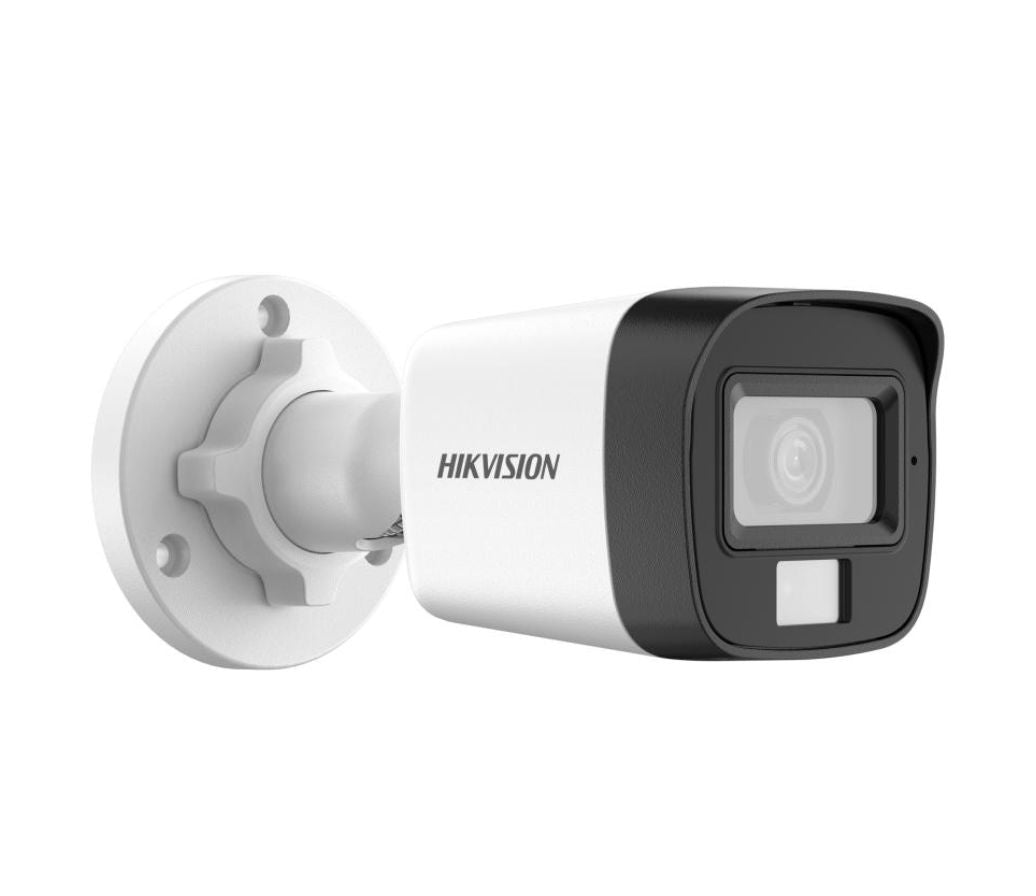

2MP Smart Hybrid Light Audio Fixed Mini Bullet Camera

• High quality imaging with 2 MP, 1920?1080 resolution
• 2.8 mm, fixed focal lens
• Up to 30 m IR distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS?
• Up to 20 m white light distance for bright night imaging
• High quality audio with audio over coaxial cable, built-in mic
• Water and dust resistant (IP67)

Specification

• Camera
• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) ? 1080 (V)
• Min. Illumination0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
• Day & NightICR
• Angle AdjustmentPan: 0 to 360?, Tilt: 0 to 180?, Rotation: 0 to 360?
• Signal SystemPAL/NTSC
• Lens
• Lens Type2.8 mm, fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 101?, vertical FOV: 56?, diagonal FOV: 118?

  , horizontal FOV: 78?, vertical FOV: 42?, diagonal FOV: 92?

• Lens MountM12
• Illuminator
• Supplement Light TypeWhite Light;IR
• Supplement Light Range

  IR : Up to 30 m

  White Light : Up to 20 m

• Image
• Image SettingsBrightness, Sharpness, Smart IR
• Frame Rate

  TVI: 1080P @ 30 fps, 1080P @ 25 fps

  AHD: 1080P @ 30 fps, 1080P @ 25 fps

  CVI: 1080P @ 30 fps, 1080P @ 25 fps

  CVBS: PAL/NTSC

• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementDWDR/BLC/HLC/Global
• White BalanceAuto/Manual
• AGCYes
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS
• General
• MaterialMetal
• Dimension138.8 mm ? 60.9 mm ? 57.9 mm (5.47" ? 2.4 " ? 2.3")
• WeightApprox. 266 g (0.59 lb.)
• Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply

  12 VDC ? 25%

  *You are recommended to use one power adapter to supply the power for one camera.

• ConsumptionMax. 3.3 W
• Approval
• ProtectionIP67
