Product Description

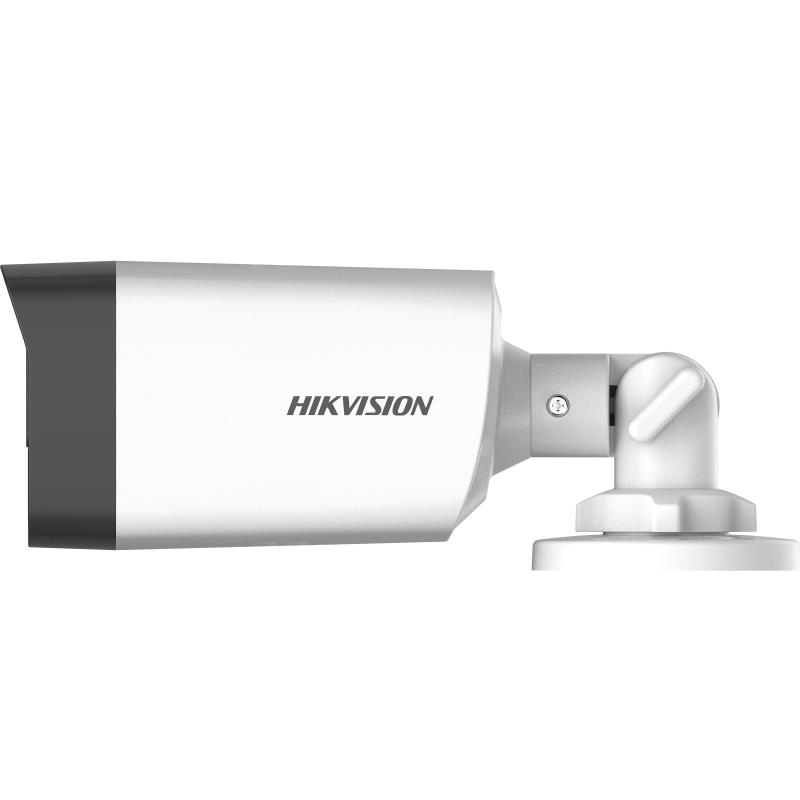

5 MP Fixed Bullet Camera

• High quality imaging with 5 MP, 2560 ? 1944 resolution
• 2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed focal lens
• Up to 30 m IR distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)

Specification

• Camera

• Lens

• Image

• Interface

• General

• Approval

• Camera
• Image Sensor5 MP CMOS
• Max. Resolution2560 (H) ? 1944 (V)
• Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time

  PAL: 1/25 s to 1/50, 000 s

  NTSC: 1/30 s to 1/50, 000 s

• Day & NightICR
• Angle AdjustmentPan: 0 to 360?, Tilt: 0 to 180?, Rotation 0 to 360?
• Signal SystemPAL/NTSC

• Lens
• Lens Type2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens
• Focal Length & FOV

  2.4 mm, horizontal FOV: 103?, vertical FOV: 81?, diagonal FOV: 142?

  2.8 mm, horizontal FOV: 86?, vertical FOV: 63?, diagonal FOV: 120?

  3.6 mm, horizontal FOV: 80?, vertical FOV: 63?, diagonal FOV: 112?

  6 mm, horizontal FOV: 55?, vertical FOV: 40?, diagonal FOV: 70?

• Lens MountM12

• Image
• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, Mirror, Smart IR
• Frame Rate

  TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps

  AHD: 5M@20fps, 4M@30fps, 4M@25fps

  CVI: 4M@30fps, 4M@25fps

  CVBS: PAL/NTSC

• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementDWDR/BLC/HLC/Global
• Noise ReductionYes
• White BalanceAuto/Manual
• AGCYes

• Interface
• Video OutputTVI/AHD/CVI/CVBS

• General
• Material

  Front Cover: Metal

  Main Body: Plastic

• Dimension78.9 mm ? 75.4 mm ? 216.6 mm (3.10" ? 2.97" ? 8.53")
• WeightApprox. 330 g (0.73 lb.)
• Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply12 VDC ? 25%
• Consumption

  Max. 4.3 W




• IR RangeUp to 30 m

• Approval
• ProtectionIP67
