Data sheet PDF
Product Description

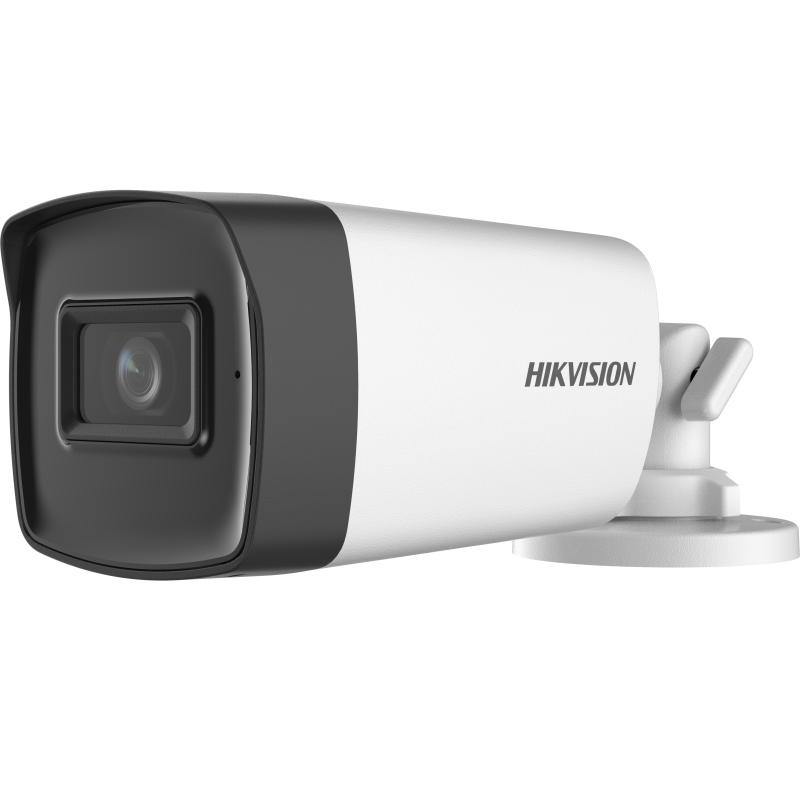

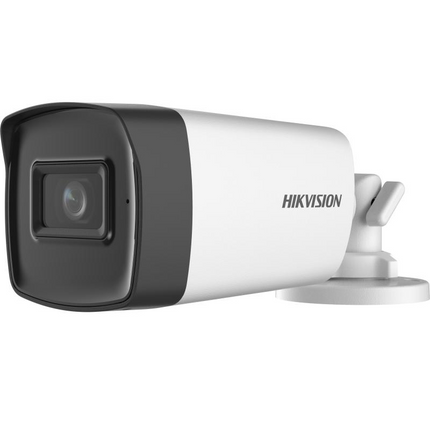

5 MP Audio Fixed Bullet Camera
? Specification
Camera
Image Sensor 5 MP CMOS
Signal System PAL/NTSC
Resolution 2560 (H) ? 1944 (V)
Frame Rate
TVI: 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps
AHD: 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps
CVI: 4 MP @ 30 fps, 4 MP @ 25 fps
CVBS: PAL/NTSC
Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Lens 2.8 mm, 3.6 mm, 6 mm fixed focal lens
Field of View
2.8 mm, horizontal FOV: 85?, vertical FOV: 63?, diagonal FOV:110?
3.6 mm, horizontal FOV: 80?, vertical FOV: 63?, diagonal FOV:105?
6 mm, horizontal FOV: 57?, vertical FOV: 43?, diagonal FOV:72?
Lens Mount M12
Day & Night ICR
WDR (Wide Dynamic Range) Digital WDR
Angle Adjustment Pan: 0? to 360?, Tilt: 0? to 180?, Rotation: 0? to 360?
Menu
Image Mode STD/HIGH-SAT
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
AE (Auto Exposure) Mode DWDR, BLC, HLC, Global
Noise Reduction 2D DNR
Language English
Function Brightness, Mirror, Smart IR, Sharpness
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
Audio In Built-in mic
General
Operating Conditions -40?C to 60?C (-40?F to 140?F), Humidity: 90% or less (non-condensing)
Power Supply 12 VDC ? 25%
Consumption Max. 4.5 W
Protection Level IP67
Material Front cover: Metal, Main body: Plastic
IR Range Up to 40 m
Communication HIKVISION-C
Dimension 78.9 mm ? 75.4 mm ? 216.6 mm (3.10" ? 2.97" ? 8.53")
Weight Approx. 338 g (0.75 lb.)
