Product Description

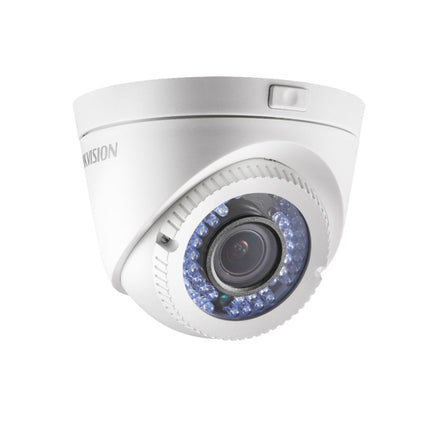

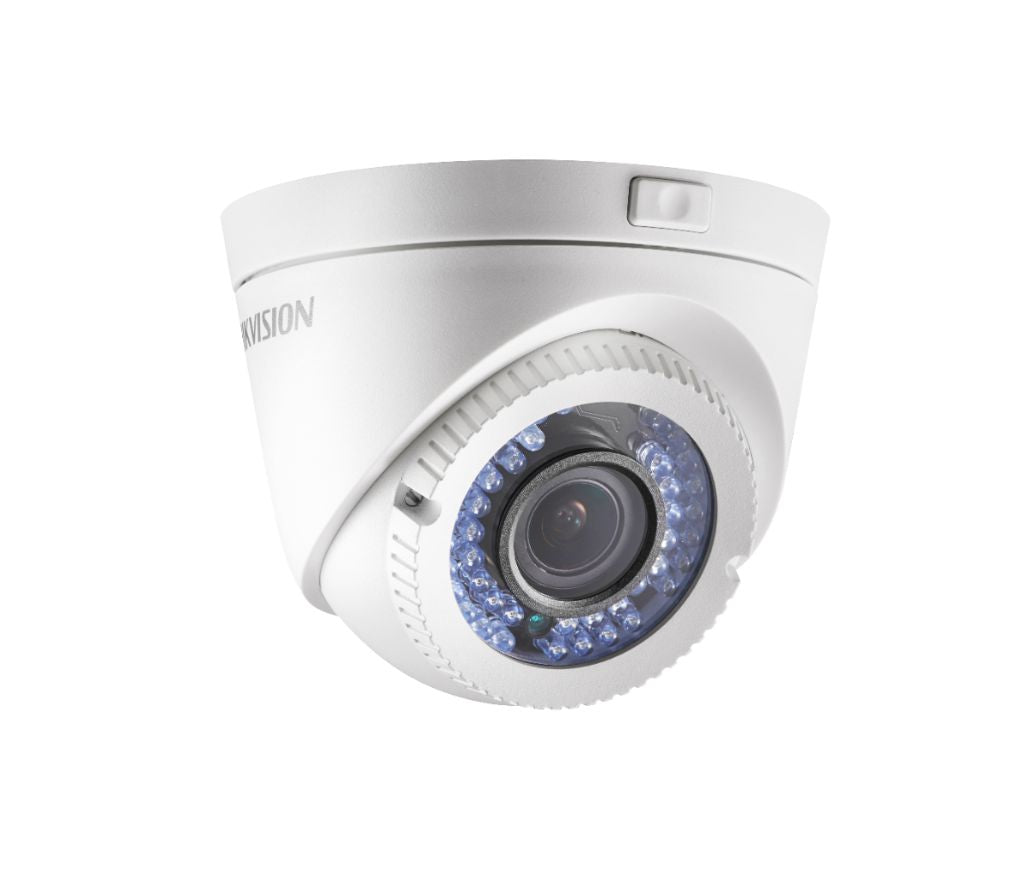

2MP PoC Manual Varifocal Turret Camera

• 2 MP varifocal PoC turret camera
• 2.8 mm to 12 mm varifocal lens
• Up to 40 m IR distance for bright night imaging
• Water and dust resistant (IP67)
• Transmits both HD video and power over the same coaxial cable

Specification

• Camera
• Image Sensor2 MP progressive scan CMOS
• Max. Resolution1920 (H) ? 1080 (V)
• Min. Illumination0.01 Lux@(F1.4, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0? to 360?, Tilt: 0? to 75?, Rotation: 0? to 360?
• Signal SystemPAL/NTSC
• Lens
• Lens TypeVarifocal lens, manual adjustment, 2.8 mm to 12 mm
• Focal Length & FOVHorizontal FOV 105.2? to 32.8?
• Lens Mount?14
• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 40 m
• Image
• Image SettingsAGC;Brightness;Sharpness;Mirror
• Frame Rate

  PAL: 1080p@25fps

  NTSC: 1080p@30fps

• Day/Night ModeAuto/Color/BW (Black and White)
• Image EnhancementBLC;DWDR
• Noise Reduction2D DNR
• Interface
• Video Output1 HD analog output
• General
• Power12 VDC ?15%/PoC.at, max. 6.5 W
• MaterialMain body: Metal, Enclosure: Plastic
• Dimension? 130.5 mm ? 102.4 mm (? 5.14" ? 4.03")
• WeightApprox. 710 g (1.57 lb.)
• Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), Humidity 90% or less (non-condensation)
• LanguageEnglish
• Approval
• ProtectionIP67
