Product Description

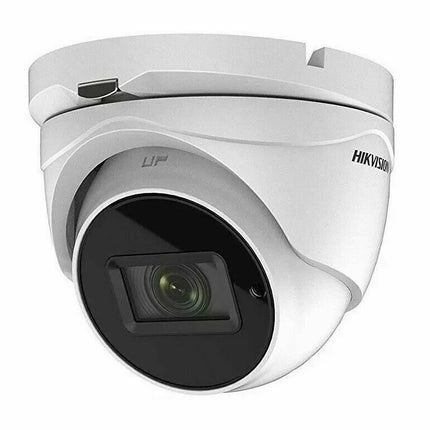

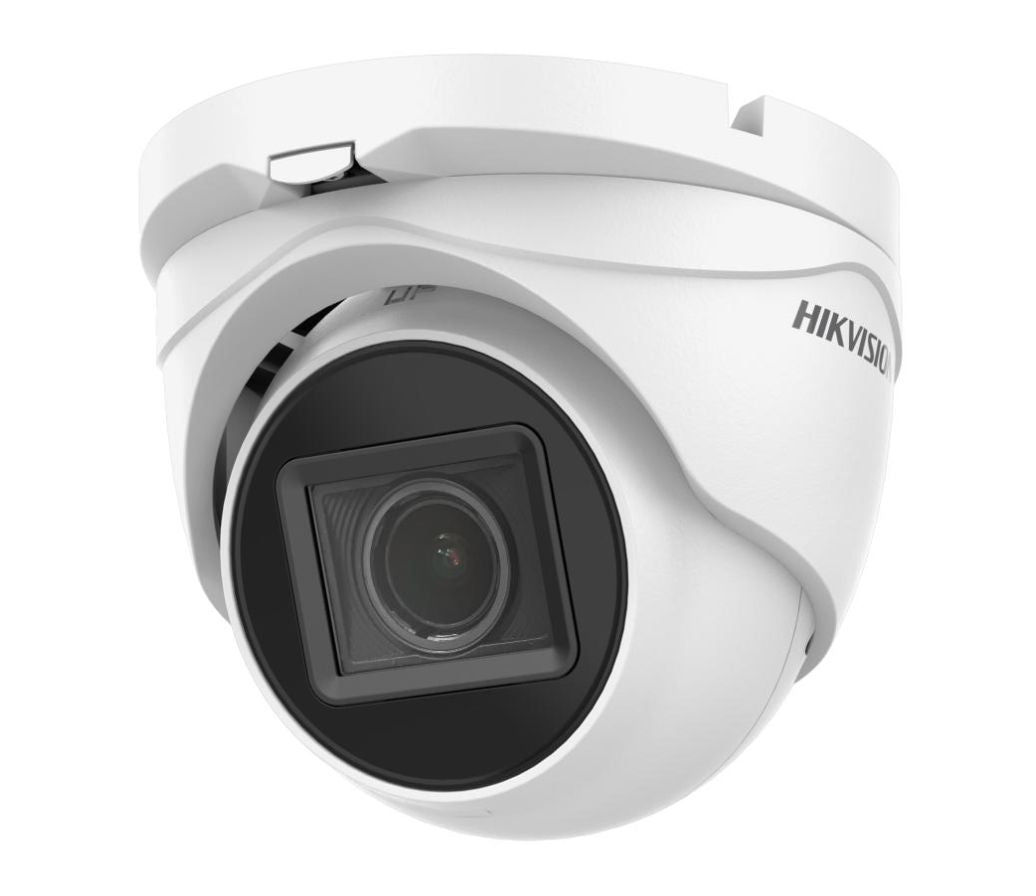

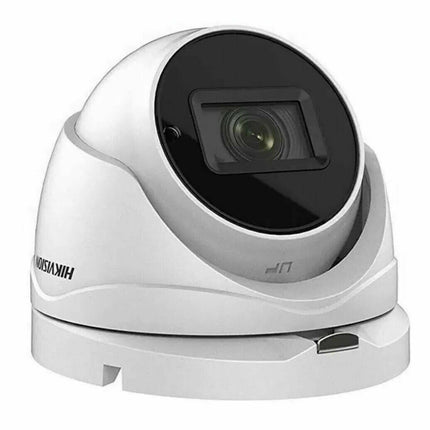

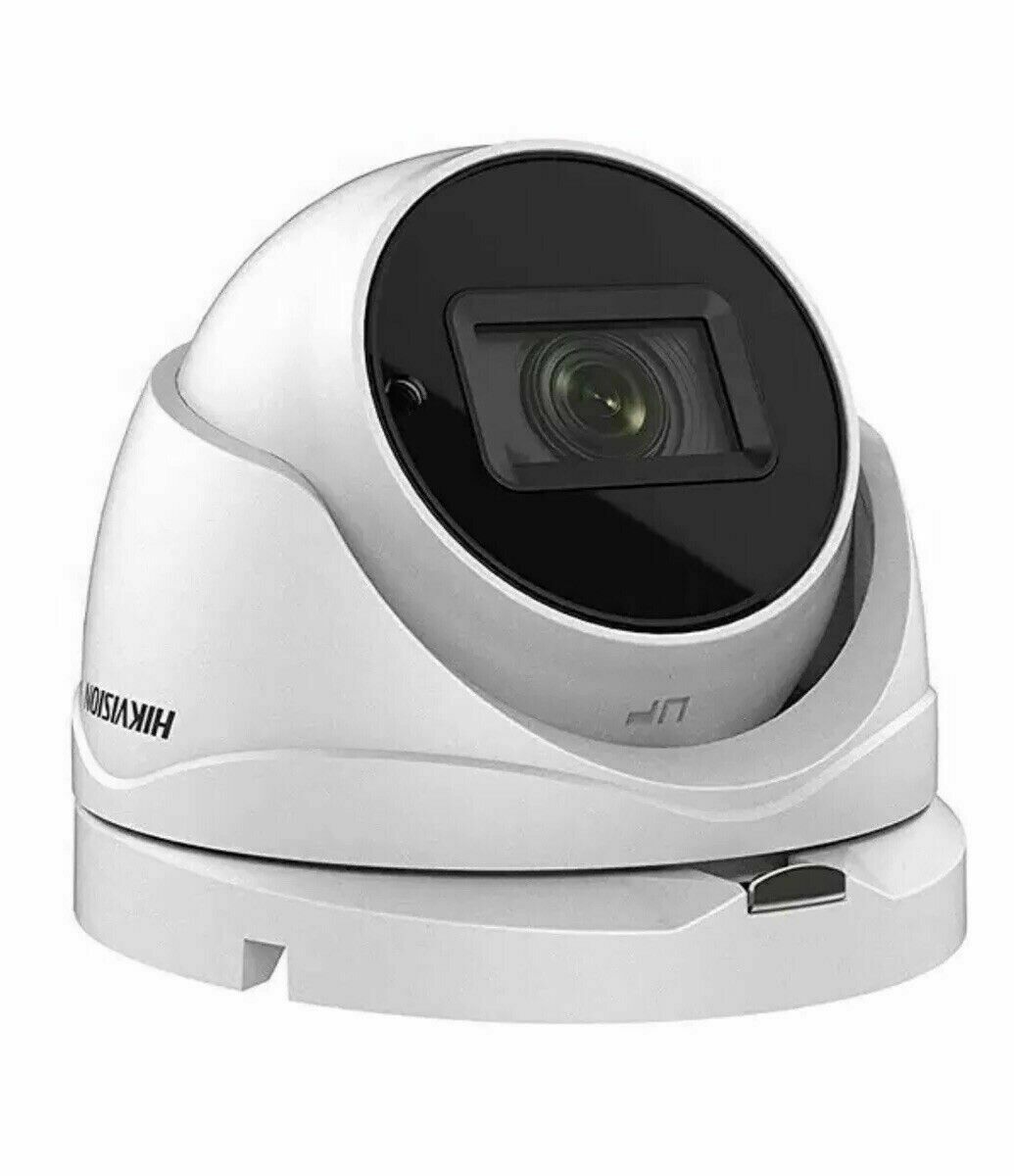

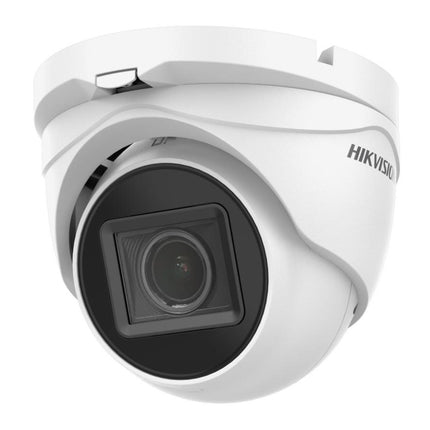

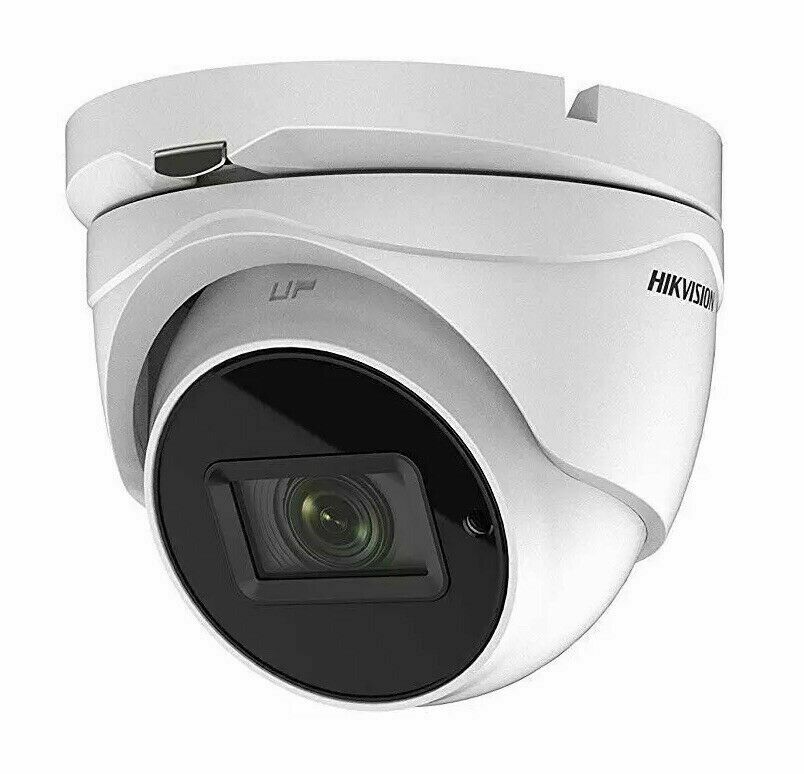

5 MP Motorized Varifocal Turret Camera

• High quality imaging with 5 MP, 2560 ? 1944 resolution
• 2.7 mm to 13.5 mm motorized varifocal lens
• Up to 40 m IR distance for bright night imaging
• Water and dust resistant (IP67)

Specification

• Camera
• Image Sensor5 MP CMOS
• Signal SystemPAL/NTSC
• Resolution2560 (H) ? 1944 (V)
• Frame Rate

  TVI: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps

  AHD: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps

  CVI: 4 M @ 30 fps, 4 M @ 25 fps

  CVBS: PAL/NTSC

• Min. Illumination0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Lens2.7 mm to 13.5 mm motorized varifocal lens
• Field Of Viewhorizontal FOV: 95? to 26?, vertical FOV: 72? to 20?, diagonal FOV: 126? to 33?
• Lens Mount?14
• Day & NightIR Cut Filter
• WDR (Wide Dynamic Range)Digital WDR
• Angle AdjustmentPan: 0? to 360?, Tilt: 0? to 75?, Rotation: 0? to 360?
• Image
• Day/Night ModeAuto/Color/BW (Black and White)
• Image ModeSTD/HIGH-SAT
• AGCYes
• White BalanceAuto/Manual
• AE (Auto Exposure) ModeBLC;HLC;Global;DWDR
• Noise Reduction2D DNR
• LanguageEnglish
• FunctionSharpness;Brightness;Smart IR
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS
• General
• IR RangeUp to 40 m
• Operating Conditions-40?C to 60?C (-40?F to140?F), Humidity: 90% or less (non-condensing)
• Power Supply

  12 VDC?15%

  *You are recommended to use one power adapter to supply the power for one camera.

• ConsumptionMax 6.2 W
• Protection LevelIP67
• MaterialMetal
• CommunicationHIKVISION-C

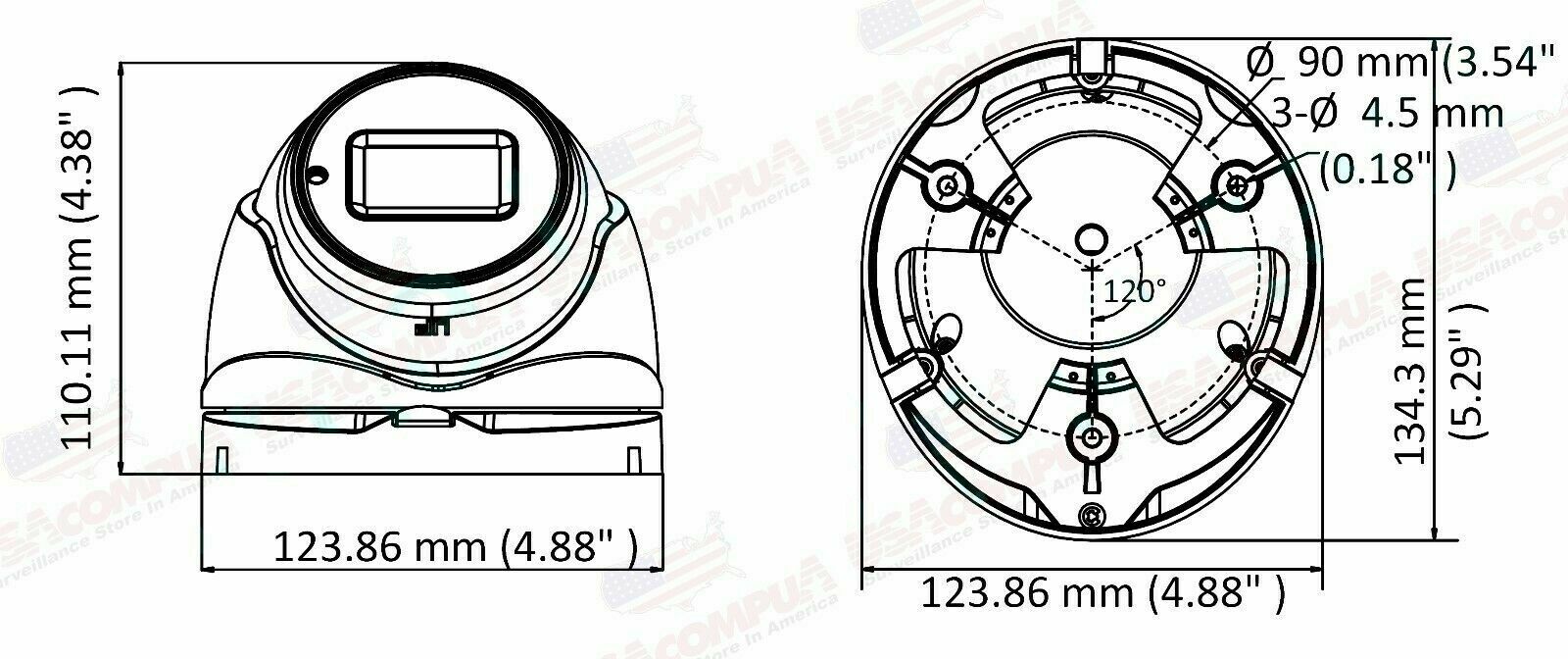

• Dimension123.87 mm ? 110.24 mm ? 134.3 mm (4.87" ? 4.34" ? 5.29")
• WeightApprox. 555 g (1.22 lb.)
