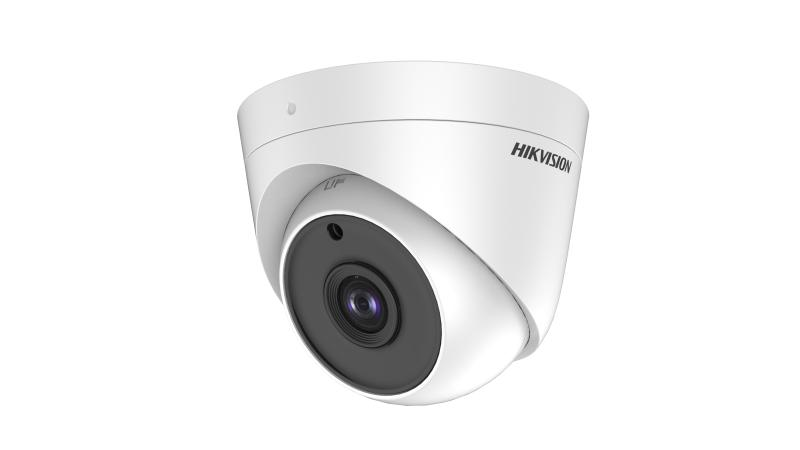

DS-2CE56H0T-ITPF Hikvision 5MP Turbo HD Analog 4in1 Indoor IR Turret
DS-2CE56H0T-ITPF Hikvision 5MP Turbo HD Analog 4in1 Indoor IR Turret
Out of stock
Description
Description
DS-2CE56H0T-ITPF Hikvision 5MP Turbo HD Analog 4in1 Indoor IR Turret
This listing includes:
-  (1) ANALOG CAMERA: DS-2CE56H0T-ITPF
DS-2CE56H0T-ITPF  view data sheet
5 MP Indoor Fixed Turret Camera
- 5 MP turret camera
- EXIR 2.0: advanced infrared technology with 20 m IR distance
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Couldn't load pickup availability
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
5 MP Indoor Fixed Turret Camera
- 5 MP turret camera
- EXIR 2.0: advanced infrared technology with 20 m IR distance
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Specification
Camera
- Camera
- Image Sensor5 MP CMOS image sensor
- Max. Resolution2560 (H) ? 1944 (V)
- Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0? to 360?; Tilt: 0? to 75?; Rotate: 0? to 360?
- Lens
- Lens Type2.8 mm, , 6 mm fixed lens
- Focal Length & FOV85.5? (2.8 mm), 80.1? (), 57.1? (6 mm)
- Lens MountM12
- Image
- Image SettingsBrightness, Sharpness, DNR, Mirror, Smart IR
- Frame RatePAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps,NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)DWDR
- Image EnhancementBLC
- White BalanceATW/MWB
- AGCSupport
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
- MaterialPlastic
- Dimension? 85.4 mm ? 76.12 mm (? 3.38" ? 2.67")
- WeightApprox.: 130 g (0.42 lb.)
- Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
- CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
- LanguageEnglish
- Power Supply12 VDC ?25%
- ConsumptionMax. 4.3 W
- IR RangeUp to 20 m
