Data sheet PDF
Product Description

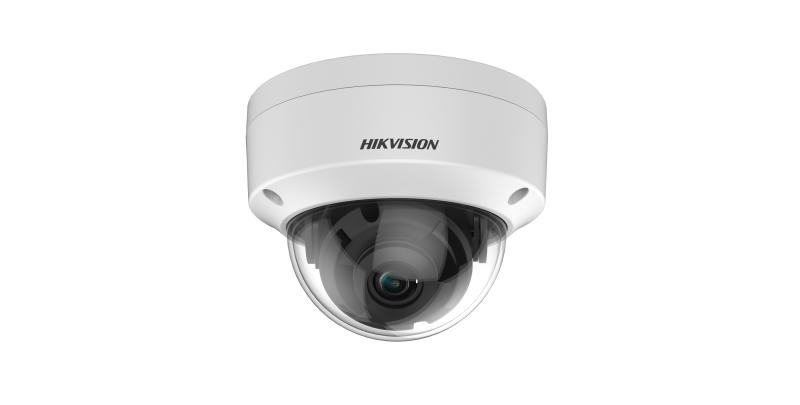

5 MP Vandal Fixed Dome Camera
Specification
Camera
Image Sensor 5 MP CMOS image sensor
Max. Resolution 2560 (H) ? 1944 (V)
Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Day & Night ICR
Angle Adjustment Pan: 0 to 355?, Tilt: 0 to 75?, Rotation 0 to 355?
Signal System PAL/NTSC
Lens
Lens Type 2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV
2.8 mm, horizontal FOV: 86?, vertical FOV: 63?, diagonal FOV: 120?
3.6 mm, horizontal FOV: 80?, vertical FOV: 63?, diagonal FOV: 112?
6 mm, horizontal FOV: 55?, vertical FOV: 40?, diagonal FOV: 70?
Lens Mount M12
Image Parameters Switch STD/HIGH-SAT
Image Settings Brightness, Sharpness, DNR, Mirror, Smart IR
Frame Rate
TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
AHD: 5M@20fps, 4M@30fps, 4M@25fps
CVI: 4M@30fps, 4M@25fps
CVBS: PAL/NTSC
Day/Night Mode Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement Yes
Image Enhancement Yes
White Balance ATW/MANUAL
AGC Support
Interface
Video Output TVI/AHD/CVI/CVBS
General
Material Metal
Dimension ? 110.8 mm ? 84.7 mm (? 4.4" ? 3.3")
Weight Approx. 362 g (0.80 lb.)
Operating Condition -40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
Communication HIKVISION-C
Language English
Power Supply 12 VDC ?25%
Consumption Max. 4.3 W
IR Range Up to 20 m
Approval
Protection IP67 IK10
