Data sheet PDF
Product Description

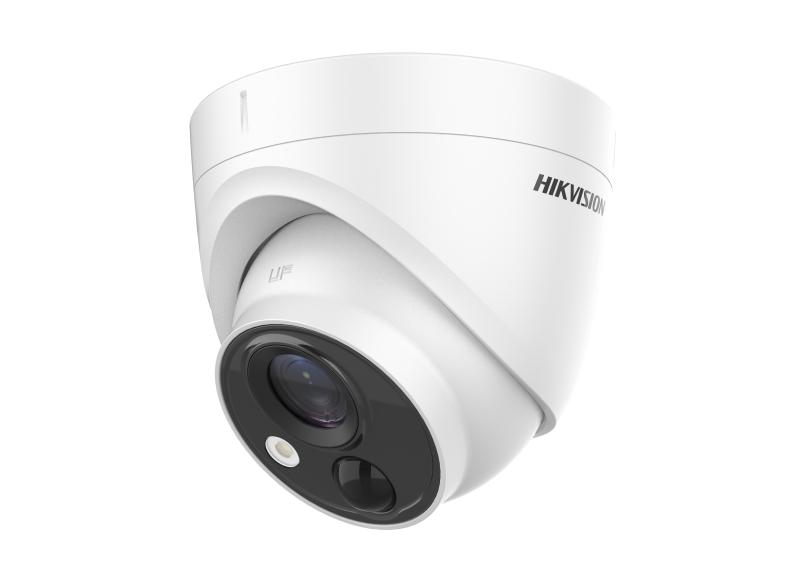

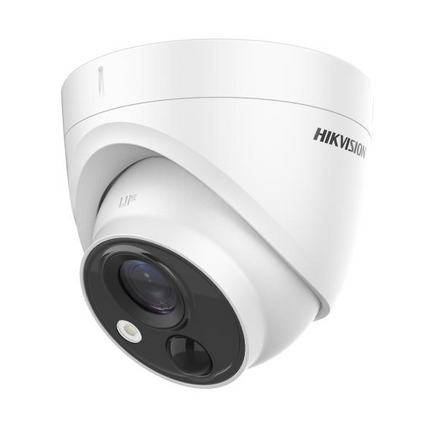

5 MP PIR Fixed Turret Camera
? Specification
Camera
Image Sensor 5 MP CMOS image sensor
Max. Resolution 2560 (H) ? 1944 (V)
Min. Illumination 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/20 s to 1/50,000 s
NTSC: 1/20 s to 1/50,000 s
Day ? Night ICR
Angle Adjustment Pan: 0? to 360?, Tilt: 0? to 75?, Rotate: 0? to 360?
Signal System PAL/NTSC
Light Alarm Yes
Lens
Lens Type 2.8 mm, 3.6 mm fixed lens
Focal Length ? FOV
2.8 mm, horizontal FOV: 85.5?, vertical FOV: 63.8?, diagonal FOV: 110.7?
3.6 mm, horizontal FOV: 80.1?, vertical FOV: 63.8?, diagonal FOV: 105.9?
Lens Mount M12
Image Parameters Switch STD/HIGH-SAT
Image Settings Brightness, Sharpness, DNR , Mirror, Smart IR
Frame Rate TVI: 5 MP@20fps, 4 MP@25fps, 4 MP@30fps, 1080P@25fps, 1080P@30fps
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
White Light AUTO/OFF
AGC Support
Interface
Video Output 1 HD analog output
General
Material
Enclosure: Plastic
Main body: Metal
Dimension ? 109.8 mm ? 89.75 mm (? 4.32" ? 3.53")
Weight Approx. 327 g (0.72 lb.)
Operating Condition ?-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
Communication HIKVISION-C
Language English
Power Supply 12 VDC ? 25%
Consumption Max. 3.5 W
IR Range Up to 20 m
Approval
Protection IP67
