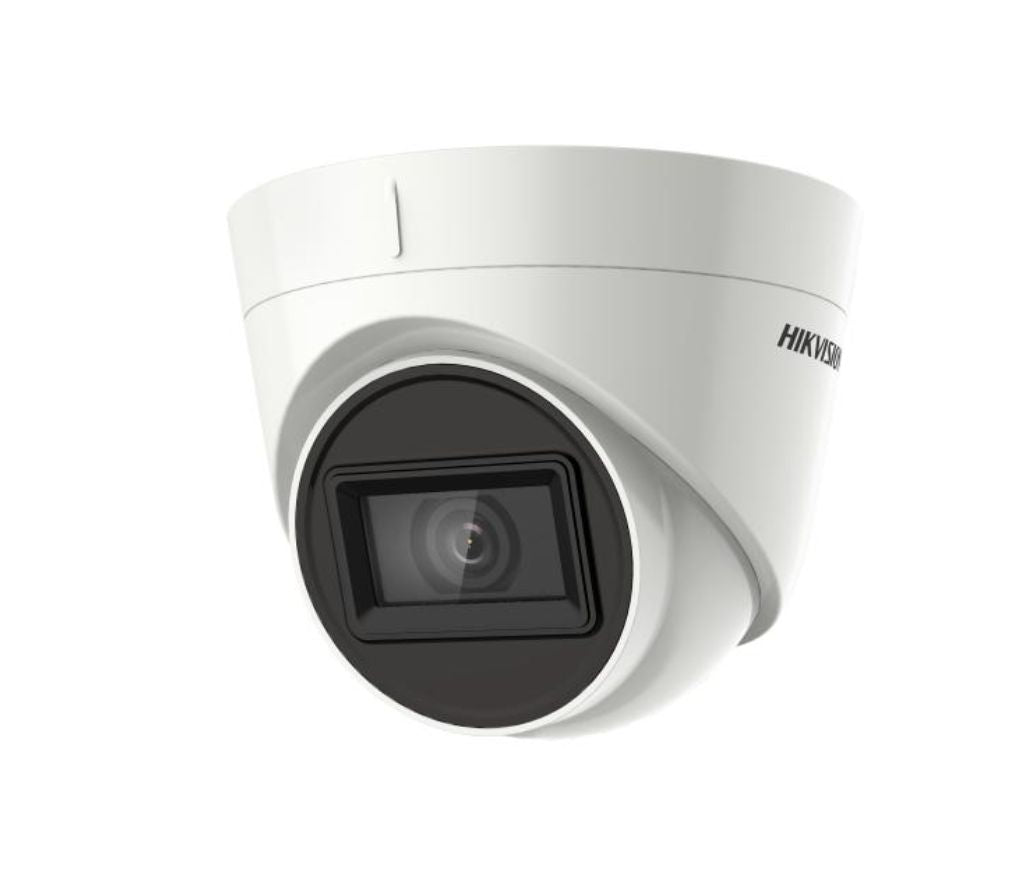

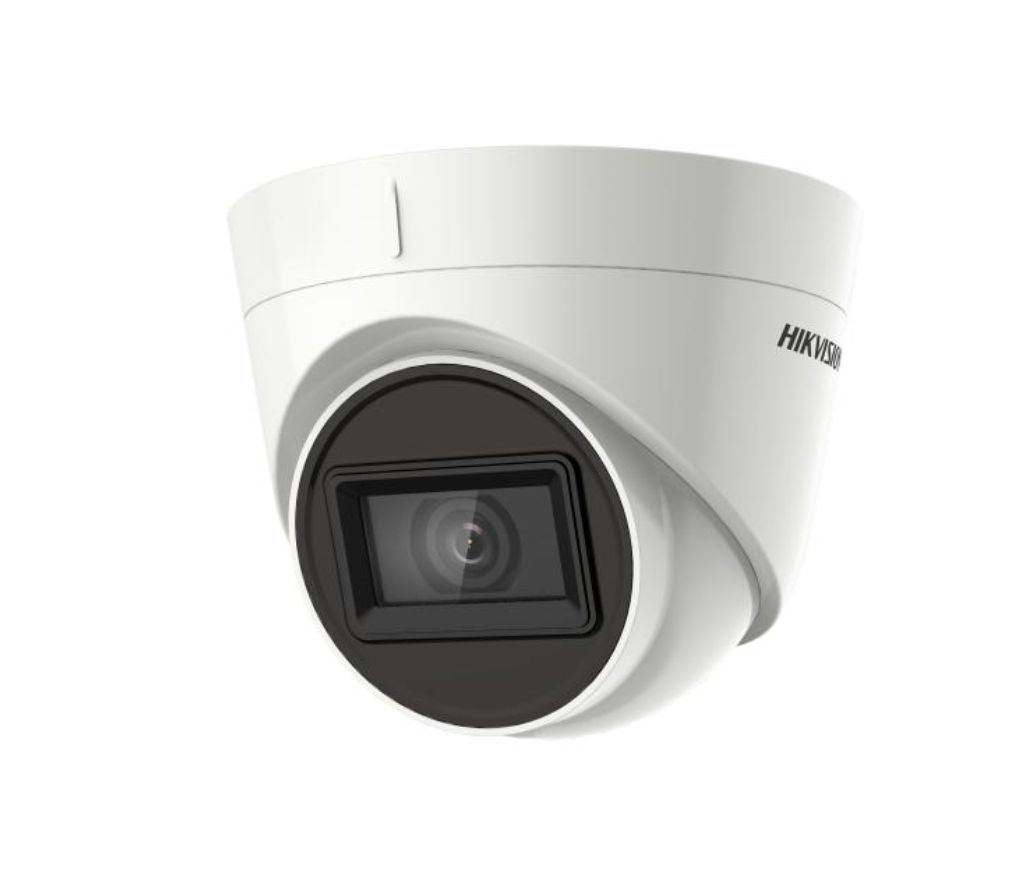

DS-2CE78U1T-IT3F Hikvision 8MP 4K Turret Camera TurboHD Analog Outdoor IR 2.8mm

Data sheet PDF

Product Description

The Hikvision DS-2CE78U1T-IT3F 8 MP Outdoor Turret Camera provides high definition analog output. TurboHD means that the analog signal can be sent over existing coaxial cable, eliminating the need to run new cables for high definition video.

• Minimum Illumination: Color: 0.01 lux @ (f/1.2, AGC on), 0 lux with IR
• Up to 3840 x 2160 Resolution
• 2.8 mm and Fixed Lens Options
• Frame Rate: TVI: 8 MP @ 12.5 fps, 8 MP @ 15 fps, 5 MP @ 20 fps, 4 MP @ 25 fps, 4 MP @ 30 fps, 2 MP @ 25 fps, 2 MP @ 30 fps
• EXIR 2.0 up to 195 ft (60 m) IR Range
• 12 VDC ? 25%



Specifications DS-2CE78U1T-IT3F Camera Image Sensor 8.29 MP progressive scan CMOS Frame Rate TVI: 8 MP @ 12.5 fps, 8 MP @ 15 fps, 5 MP @ 20 fps, 4 MP @ 25 fps, 4 MP @ 30 fps, 2 MP @ 25 fps, 2 MP @ 30 fps CVI: 8 MP @ 12.5 fps, 8 MP @ 15 fps AHD: 8 MP @ 12.5 fps, 8 MP @ 15 fps CVBS: 960H NTSC Resolution 3840 (H) ? 2160 (V) Minimum Illumination Color: 0.01 lux @ (f/1.2, AGC on), 0 lux with IR Shutter Speed 1/15 s to 1/50, 000 s Lens 2.8 mm and 6 mm fixed lens options Horizontal Field of View 102.2? (2.8 mm), 50.8? (6 mm) Lens Mount M16 Day/Night IR cut filter Angle Adjustment Pan: 0? to 360?; tilt: 0? to 180?; rotate: 0? to 360? Synchronization Internal synchronization DWDR 105 dB Menu AGC Yes Day/Night Mode Auto/color/BW (black and white) White Balance Auto/manual BLC Yes Language English Functions Brightness, sharpness, DNR, mirror, Smart IR, HLC Interface TVI Video Output 1 HD analog output Switch Button TVI/AHD/CVI/CVBS General Operating Conditions -40? F to 140? F (-40? C to 60? C), humidity: 90% or less (non-condensation) Power Supply 12 VDC ? 25% (only one power supply can be used per camera) Power Consumption Maximum 5.3 W Protection Level IP67 Material Enclosure: plastic, main body: metal IR Range Up to 195 ft (60 m) Communication Up-the-Coax, protocol: HIKVISION-C (TVI output) Dimensions ? 4.32" x 3.6" (? 109.82 mm x 91.03 mm) Weight Approximately 0.71 lbs (320 g) Accessories (not included) Dimensions 91.03 mm (3.6" ) WMS + PC110T Wall Mount Short and 130 mm Pendant Cap for Turret Cameras PM Pole Mount CM Corner Mount ABS Angled Base CBS Conduit Base
