Data sheet PDF

Product Description

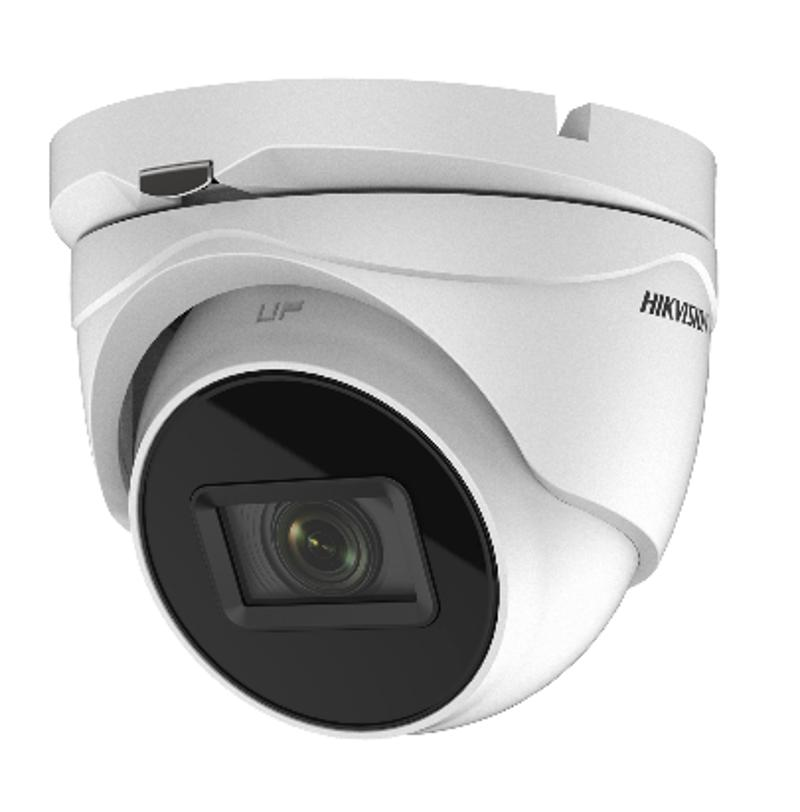

4K Ultra Low Light Motorized Varifocal Turret Camera

• 8 MP high performance turret camera
• Strong night performance, capturing images in ultra-low light down to 0.003 lux
• Clear imaging even against strong back lighting due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• Lens focuses automatically when zooming in or out
• EXIR 2.0: advanced infrared technology with 60 m IR distance
• Water and dust resistant (IP67)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

? Specification
Camera
Image Sensor 8.29 MP CMOS
Max. Resolution 3840 (H) ? 2160 (V)
Min. Illumination 0.003 Lux@(F2.4, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/12.5s to 1/50, 000 s
NTSC: 1/15 s to 1/50, 000 s
Day ? Night ICR
Angle Adjustment Pan: 0? to 360?; Tilt: 0? to 75?; Rotate: 0? to 360?
Signal System PAL/NTSC
Lens
Lens Type 2.7 mm to 13.5 mm motorized varifocal lens
Focal Length ? FOV 108.1? to 45.6?
Lens Mount ?14
Image Parameters Switch STD/HIGH-SAT
Image Settings Brightness, Sharpness, Mirror, Smart IR
Frame Rate
TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps,
1080P@25fps,
1080P@30fps
AHD: 8MP@12.5fps, 8MP@15fps
CVI: 8MP@12.5fps, 8MP@15fps
CVBS: P/N
Day/Night Mode Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR) ?130 dB
White Balance ATW/MANUAL
AGC Support
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
Material Metal
Dimension 134.3 mm ? 123.86 mm ? 110.24 mm (5.29" ? 4.88" ? 4.34")
Weight Approx. 620 g (1.37 lb.)
Operating Condition -40? C to 60? C (-40? F to 140? F), Humidity 90% or less (no condensation)
Communication HIKVISION-C
Language English
Power Supply 12 VDC ? 20%, 24 VAC ? 20%
Consumption Max. 11 W
IR Range Up to 60 m
Approval
Protection IP67
