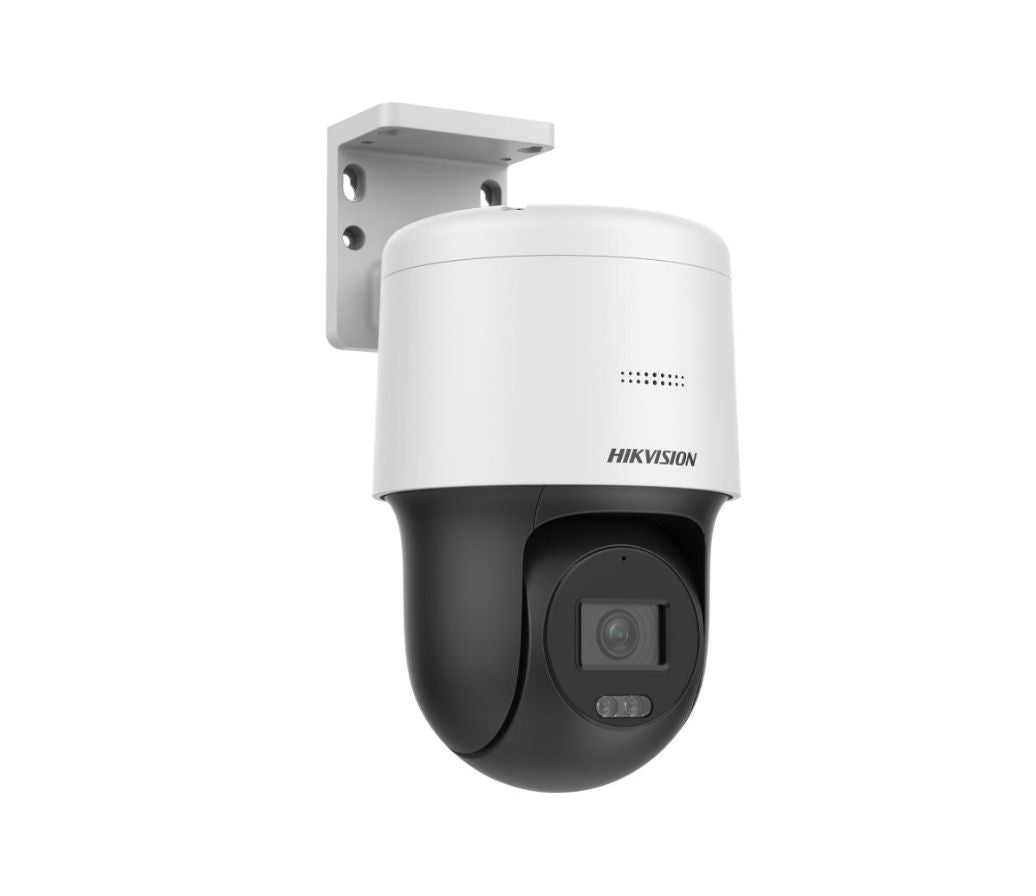

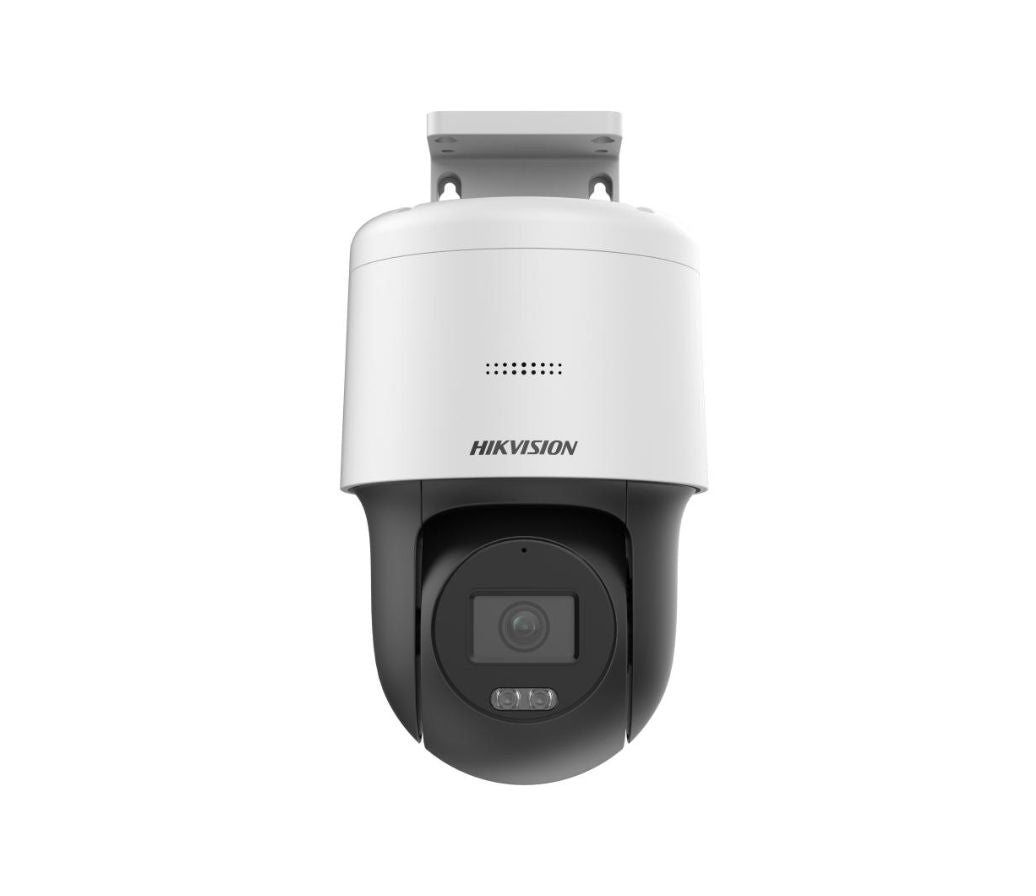

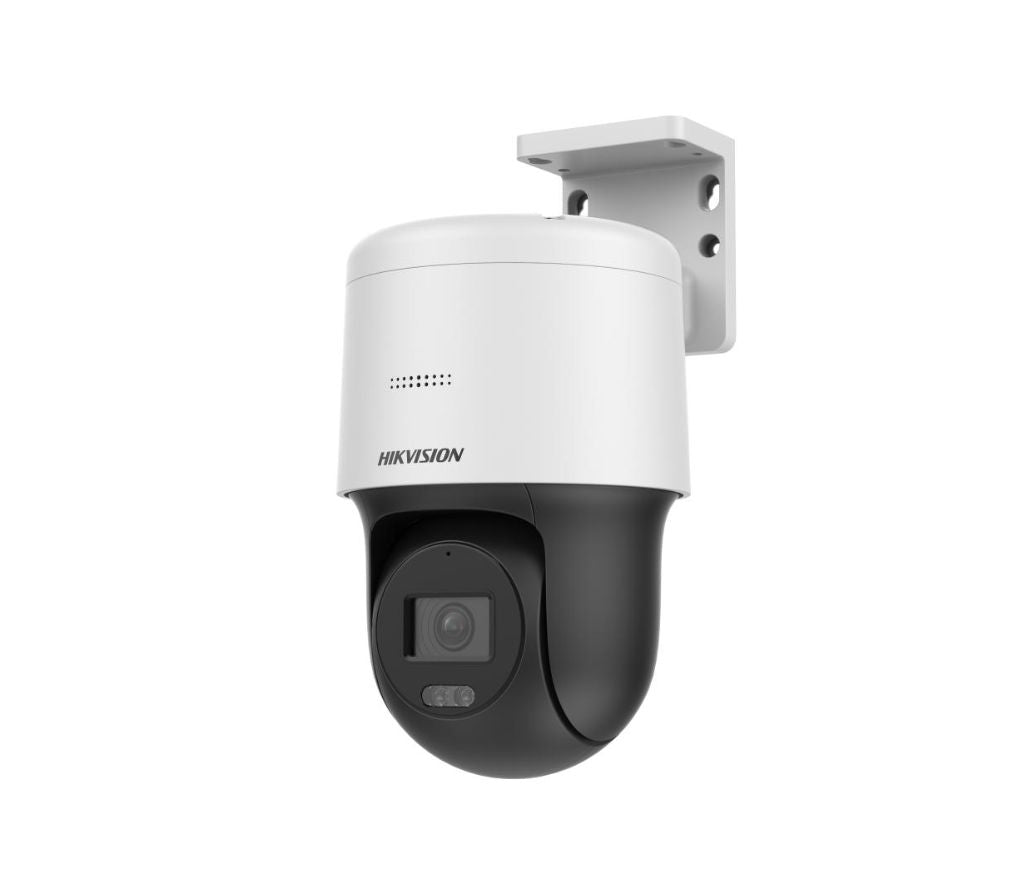

DS-2DE2C400MW-DE Hikvision w/ audio IP PoE Camera 2-inch 4 MP IR Mini PT Dome
DS-2DE2C400MW-DE Hikvision w/ audio IP PoE Camera 2-inch 4 MP IR Mini PT Dome
Out of stock
Description
Description
DS-2DE2C400MW-DE Hikvision w/ audio IP PoE Camera 2-inch 4 MP IR Mini PT Dome
This listing includes:
-  (1) IP/POE CAMERA: DS-2DE2C400MW-DE
DS-2DE2C400MW-DE  view data sheet
2-inch 4 MP IR Mini PT Dome Network Camera
- High quality imaging with 4 MP resolution
- Clear imaging against strong back light due to DWDR technology
- 3D DNR technology delivers clean and sharp images
- Hik-Connect cloud service and APP for remote management and views of devices
- Built-in microphone for real-time audio security
- Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
- Water and dust resistant IP66
Couldn't load pickup availability
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
2-inch 4 MP IR Mini PT Dome Network Camera
- High quality imaging with 4 MP resolution
- Clear imaging against strong back light due to DWDR technology
- 3D DNR technology delivers clean and sharp images
- Hik-Connect cloud service and APP for remote management and views of devices
- Built-in microphone for real-time audio security
- Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
- Water and dust resistant IP66
Specification
- Camera
- Image Sensor1/3? Progressive Scan CMOS
- Max. Resolution2560 ? 1440
- Min. IlluminationColor: 0.005 Lux @(F1.2?AGC ON), B/W: 0 Lux with IR
- Lens
- Focal Length2.8 mm/ 4 mm
- FOV
2.8 mm, horizontal FOV 97?, vertical FOV 52.3?, diagonal FOV 114.3?
4 mm, horizontal FOV 79?, vertical FOV 42.4?, diagonal FOV 93.3?
- ApertureF1.6
- Illuminator
- Supplement Light TypeIR & White Light
- Supplement Light Range
White Light Distance: up to 30 m
IR Distance: up to 30 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- PTZ
- Movement Range (Pan)0? to 340?
- Movement Range (Tilt)-5? to 105?
- Pan SpeedPan speed: configurable from 4? to 21?/s
- Tilt SpeedTilt speed: configurable from 4? to 19?/s
- Video
- Video CompressionH.265, H.264, MJPEG
- H.264 TypeBaseline Profile, Main Profile, High Profile
- H.265 TypeMain Profile
- Main Stream50 Hz: 25 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 720)
- Sub-Stream50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)
- Video Bit Rate32 Kbps to 8 Mbps
- Audio
- Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM
- Audio Bit Rate64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)/16-64Kbps(AAC)
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
- APIOpen Network Video Interface, ISAPI, SDK
- Image
- Image SettingsSaturation, brightness, contrast, sharpness
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementBLC, HLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
- Built-In MicrophoneYes
- Built-In SpeakerYes
- ResetYes
- Event
- Basic EventMotion detection
- Alarm LinkageUpload to FTP, notify surveillance center, send email, upload to memory card
- General
- Operating Condition
With supplement light on: -30 ? to 40 ?. Humidity 95% or less (non-condensing)
With supplement light off: -30 ? to 50 ?. Humidity 95% or less (non-condensing)
- General FunctionMirror, password protection, watermark
- Power
12 VDC ? 25%, 0.75 A, max. 9 W, ?5.5 mm coaxial power plug, reverse polarity protection
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, max. 10.8 W
- Dimensions
Camera dimension: 162 mm ? 120 mm ? 234.2 mm (6.4" ? 4.7\" ? 9.2\")
Package dimension: 205 mm ? 167 mm ? 289 mm (8.1 ? 6.6\" ? 11.4\")"
- Weight
Camera weight: 700 g (1.5 lb.)
With package weight: 1250 g (2.8 lb.)
- Approval
- EMC
FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
IC (ICES-003: Issue 6, 2016)
- ProtectionIP66 (IEC 60529-2013)
