Product Description

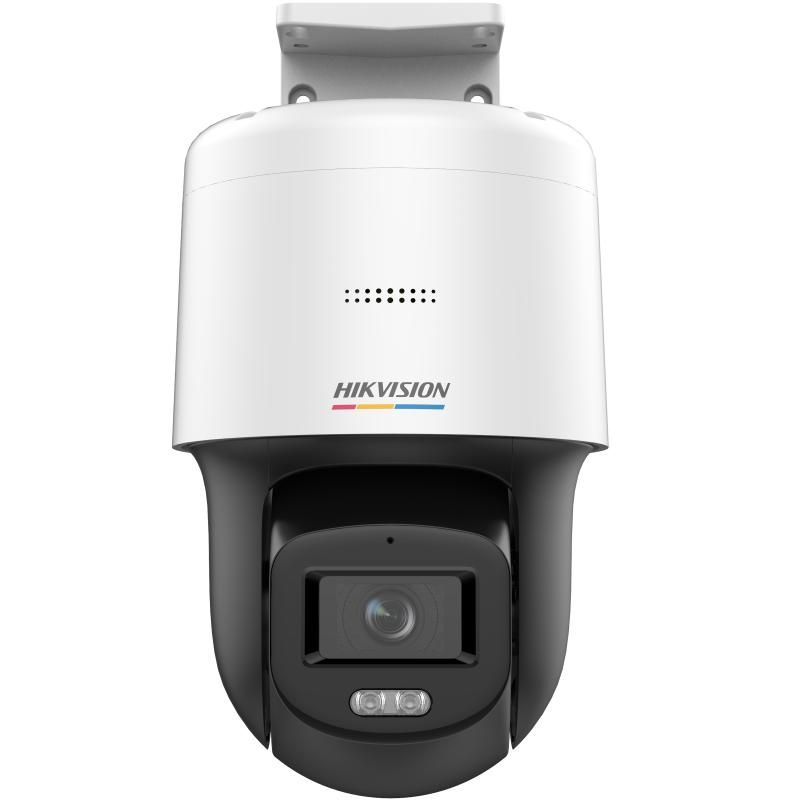

4 MP Fixed Outdoor ColorVu PT Network Camera

• High quality imaging with 4 MP resolution
• Clear imaging against strong back light due to DWDR technology
• 3D DNR technology delivers clean and sharp images
• Hik-Connect cloud service and APP for remote management and views of devices
• Built-in microphone and speakerfor real-time audio security
• Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• Water and dust resistant IP66

Specification

• Camera

• Lens

• Illuminator

• PTZ

• Video

• Audio

• Network

• Image

• Interface

• Event

• General

• Approval

• Camera
• Image Sensor1/1.8" Progressive Scan CMOS
• Max. Resolution2560 ? 1440
• Min. IlluminationColor: 0.001 Lux @(F1.0, AGC ON), 0 Lux with Light

• Lens
• Focal Length2.8 mm/4 mm
• FOV

  2.8 mm, horizontal FOV 105.7?, vertical FOV 57.3?, diagonal FOV 124.9?

  4 mm, horizontal FOV 88.7?, vertical FOV 44.7?, diagonal FOV 107.5?

• ApertureF1.0

• Illuminator
• Supplement Light TypeWhite Light
• Supplement Light RangeWhite Light Distance: up to 30 m
• Smart Supplement LightYes

• PTZ
• Movement Range (Pan)0? to 340?
• Movement Range (Tilt)-5? to 105?
• Pan SpeedPan speed: configurable from 4? to 21?/s
• Tilt SpeedTilt speed: configurable from 4? to 19?/s

• Video
• Main Stream

  50 Hz: 25 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 720)

  60 Hz: 30 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 720)

• Sub-Stream

  50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)

• Video CompressionH.265, H.264, MJPEG
• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile, Main Profile, High Profile
• H.265 TypeMain Profile

• Audio
• Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC-LC/PCM
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate8 kHz/16 kHz
• Environment Noise FilteringYes

• Network
• ProtocolsIPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
• APIOpen Network Video Interface, ISAPI, SDK

• Image
• Image SettingsSaturation, brightness, contrast, sharpness
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC, HLC, 3D DNR

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• Built-In MicrophoneYes
• Built-In SpeakerYes
• ResetYes

• Event
• Basic EventMotion detection, video tampering alarm, exception
• LinkageUpload to FTP, notify surveillance center, send email, upload to memory card

• General
• Power

  12 VDC ? 25%, 0.75 A, max. 9 W, ?5.5 mm coaxial power plug, reverse polarity protection

  PoE: 802.3af, 36 V to 57 V, 0.2 A to 0.3 A, max. 10 W

• Dimension

  Camera dimension: 162 mm ? 120 mm ? 234.2 mm (6.4" ? 4.7\" ? 9.2\")

  Package dimension: 205 mm ? 167 mm ? 289 mm (8.1 ? 6.6\" ? 11.4\")"

• Weight

  Camera weight: 780 g (1.7 lb.)

  With package weight: 1280 g (2.8 lb.)

• Operating Condition

  With supplement light on: -30 ? to 40 ?. Humidity 95% or less (non-condensing)

  With supplement light off: -30 ? to 50 ?. Humidity 95% or less (non-condensing)

• General FunctionMirror, password protection, watermark

• Approval
• EMC

  FCC: 47 CFR Part 15, Subpart B;

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014;

  IC: ICES-003: Issue 7

• ProtectionIP66: IEC 60529-2013
