DS-2DE4225TI-D
DS-2DE4225TI-D
$444.14 $422.99
-
Guaranteed secure & safe checkout.
- Free shipping on all orders
- No hassle returns, 30 days return
Data sheet PDF
Product Description

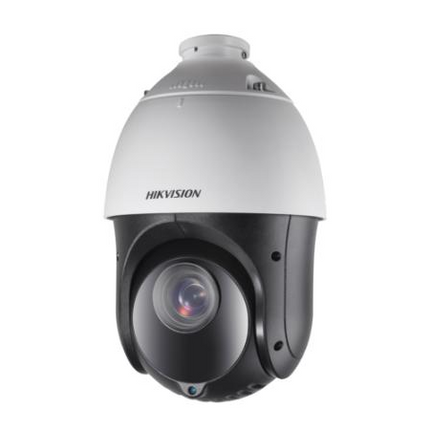

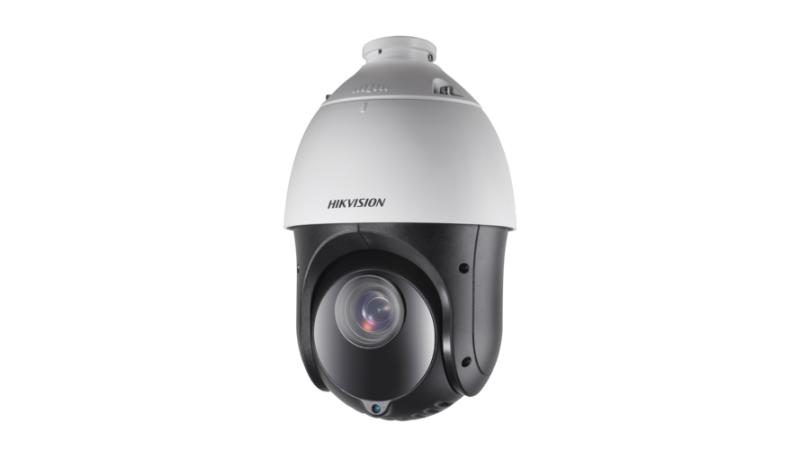

4-inch 2 MP 25X Powered by DarkFighter IR Analog Speed Dome
- High quality imaging with 2 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 25 ? optical zoom allows for closer viewing of subjects in expansive areas
- Up to 100 m IR range ensures safety at night
- Water and dust resistant (IP66)
Specification
- Camera
- Image Sensor1/2.8" Progressive Scan CMOS
- Max. Resolution1920 ? 1080
- Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 lux with IR
- Shutter Speed
PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s
- Day & NightIR cut filter
- Zoom25? optical, 16 ? digital
- Lens
- Focal Length4.8 mm to 120 mm, 25 ? optical
- FOVHorizontal FOV: 57.6? to 2.5? (wide to tele)
- FocusAuto, semi-auto, manual
- ApertureF1.6 to F3.5
- Zoom SpeedApprox. 3.2 s (optical, wide to tele)
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 100 m
- PTZ
- Movement Range (Pan)360? endless
- Movement Range (Tilt)-15? to 90? (auto flip)
- Pan Speed
Pan manual speed: 0.1? to 80?/s
Pan preset speed: 80?/s
- Tilt Speed
Tilt manual speed: 0.1? to 80?/s
Tilt preset speed: 80?/s
- Proportional PanRotation speed can be adjusted automatically according to zoom multiples
- Presets256
- Patrol Scan10 patrols, up to 32 presets for each patrol
- Pattern Scan5 patterns, record time over 10 minutes for each scan
- Park ActionPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
- PTZ Status DisplayYes
- Scheduled TaskPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
- Power-Off MemoryYes
- Video
- Frame Rate
50 Hz: 25 fps @(1920 ? 1080)
60 Hz: 30 fps @(1920 ? 1080)
- Network
- ProtocolsUTC protocol (or HIKVISION-C protocol in previous DVR)
- Image
- Image SettingsAGC, white balance
- Wide Dynamic Range (WDR)? 120 dB
- Image StabilizationEIS
- Image EnhancementBLC, HLC, 3D DNR
- Privacy Mask8 programmable privacy masks
- Regional FocusYes
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
- RS-485
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
- General
- Power12 VDC, max. 20 W (IR: 7 W)
- Dimension? 164.5 ? 295 mm (? 6.47" ? 11.61")
- Operating Condition-30? C to 65? C (-22? F to 149? F). Humidity 90% or less
- LanguageEnglish
- Approval
- ProtectionIP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection
