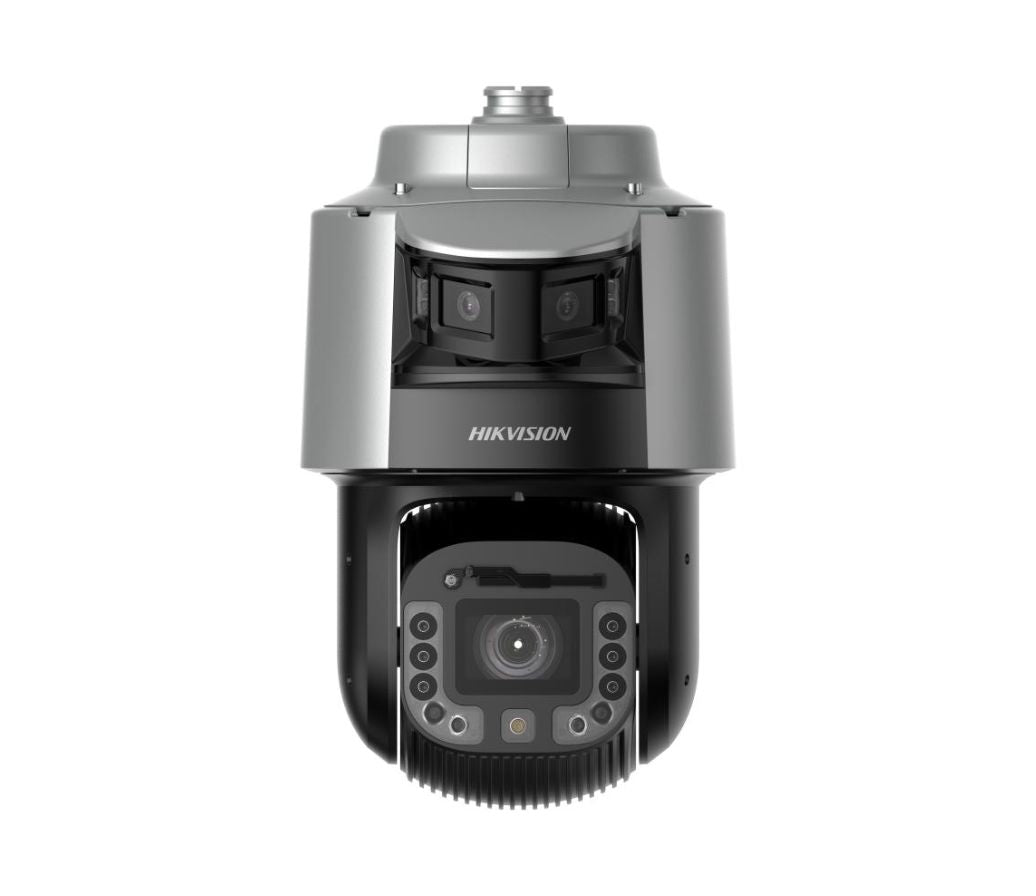

DS-2SF8C425MXS-DLW Hikvision w/ audio IP PoE Camera TandemVu 8-inch Panoramic 4

Data sheet PDF

Product Description

TandemVu 8-inch Panoramic 4 MP 25X DarkFighter Network Speed Dome

• Captures a large area and great details at the same time
• High quality imaging with 4 MP resolution for both bullet channel and PTZ channel
• 24/7 colorful imaging and excellent low-light performance with DarkFighter technology
• Bullet channel tilt adjustable from 7? to 17?
• Secures an expansive area with 25 ? optical zoom and 16 ? digital zoom
• Expansive night view with up to 30 m white light distance and 300 m IR distance
• Supports deep learning functions
• Water and dust resistant (IP67) and vandal resistant (IK10)

Specification

• Camera
• Image Sensor[Bullet channel] 1/1.8" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS
• Min. Illumination

  [Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light,

  [PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON), 0 lux with IR

• Shutter Speed1 s to 1/30000 s
• Slow ShutterYes
• Day & Night[Bullet channel] Color, [PTZ channel] IR cut filter
• Zoom[PTZ channel] 25 ? optical, 16 ? digital
• Max. Resolution[Bullet channel] 3840 ? 1080, [PTZ channel] 2560 ? 1440
• Lens
• FocusAuto,semi-auto,manual
• Zoom Speed[Bullet channel] No, [PTZ channel] approx. 4.8 s
• Focal Length[Bullet channel] 2.8 mm, [PTZ channel] 5.9 to 147.5 mm
• FOV[Bullet channel] horizontal field of view: 190? ? 5?, vertical field of view: 50? ? 5?, diagonal field of view: 198? ? 5?, [PTZ channel] horizontal field of view: 58.5? to 3.1?, vertical field of view: 34? to 1.7?, diagonal field of view: 65.8? to 3.5?
• Aperture[Bullet channel] F1.0, [PTZ channel] F1.5
• Illuminator
• Supplement Light Range[Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 300 m
• Smart Supplement LightYes
• PTZ
• Movement Range (Pan)[PTZ channel] 0? to 360?
• Movement Range (Tilt)[Bullet channel] 7? to 17?, [PTZ channel] -20? to 90?
• Pan Speed[PTZ channel] pan speed: configurable from 0.1? to 160?/s, preset speed: 240?/s
• Tilt Speed[Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1? to 120?/s, preset speed 200?/s
• Proportional Pan[Bullet channel] No, [PTZ channel] Yes
• Presets300
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans, record time over 10 minutes for each scan
• Power-Off MemoryYes
• Park ActionPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
• 3D PositioningYes
• PTZ Status DisplayYes
• Preset FreezingYes
• Scheduled TaskPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
• Video
• Main Stream[Bullet channel] 50 Hz: 25 fps (3840 ? 1080), 60 Hz: 24 fps (3840 ? 1080),[PTZ channel] 50 Hz: 25 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 960, 1280 ? 720), 60 Hz: 30 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 960, 1280 ? 720)
• Sub-Stream[Bullet channel] 50 Hz: 25 fps (1920 ? 536), 60 Hz: 24 fps (1920 ? 536),[PTZ channel] 50 Hz: 25 fps (704 ? 576, 640 ? 480, 352 ? 288), 60 Hz: 30 fps (704 ? 480, 640 ? 480, 352 ? 240)
• Third Stream[Bullet channel] No,[PTZ channel] 50 Hz: 25 fps (1920 ? 1080, 1280 ? 960, 1280 ? 720, 704 ? 576, 640 ? 480, 352 ? 288), 60 Hz: 30 fps (1920 ? 1080, 1280 ? 960, 1280 ? 720, 704 ? 480, 640 ? 480, 352 ? 240)
• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline profile,Main profile,High profile
• H.265 TypeMain profile
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)8 fixed regions for each stream
• Audio
• Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,AAC
• Audio Bit Rate32 to 192 Kbps (MP2L2),16 to 64 Kbps (AAC)
• Audio Sampling Rate8 kHz,16 kHz,32 kHz,48 kHz
• Environment Noise FilteringYes
• Network
• APIISUP,ISAPI,SDK,Open Network Video Interface (Profile S, Profile G, Profile T)
• Network StorageNAS (NFS, SMB/CIFS),auto network replenishment (ANR)
• ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP
• Simultaneous Live ViewUp to 20 channels
• User/HostUp to 32 users. 3 user levels: administrator, operator, and user
• SecurityPassword protection,complicated password,IP address filter,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),host authentication (MAC address),watermark
• ClientiVMS-4200,HikCentral Pro,Hik-Connect
• Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+
• Image
• Day/Night SwitchDay,night,auto,schedule
• Image EnhancementHLC,3D DNR
• Wide Dynamic Range (WDR)[Bullet channel] No, [PTZ channel] 120 dB
• DefogDigital defog
• Image StabilizationEIS
• Regional ExposureYes
• Regional Focus[Bullet channel] No, [PTZ channel] Yes
• Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Image Parameters SwitchYes
• Privacy Mask[Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
• SNR? 52 dB
• Supplement Detection
• Satellite PositioningNo
• GyroscopeYes
• CompassNo
• Interface
• Ethernet Interface1 RJ45 100M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
• Alarm7 input(s), 2 output(s)
• Audio

  1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 K? ? 10%,

  1 output (line out), line level, output impedance: 600 ?

• RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• ResetYes
• Event
• Basic Event[PTZ channel] video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
• Smart Event[PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
• Alarm Linkage[Bullet channel] no,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
• Smart Tracking[PTZ channel] yes
• Smart Linkage3D positioning
• Deep Learning Function
• Multi-Target-Type Detection[Bullet channel] no,[PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle
• General
• General Functionmirror,password protection
• Power36 VDC ? 25%, max. 70 W,including max. 6 W for heater and max. 6 W for supplement light of bullet channel, and max. 6 W for heater and max. 15 W for supplement light of PTZ channel
• Operating Condition-40 ?C to 70 ?C (-40 ?F to 158 ?F). Humidity 95% or less (non-condensing),For speaker: -30 ?C to 55?C (-22?F to 131?
