Product Description

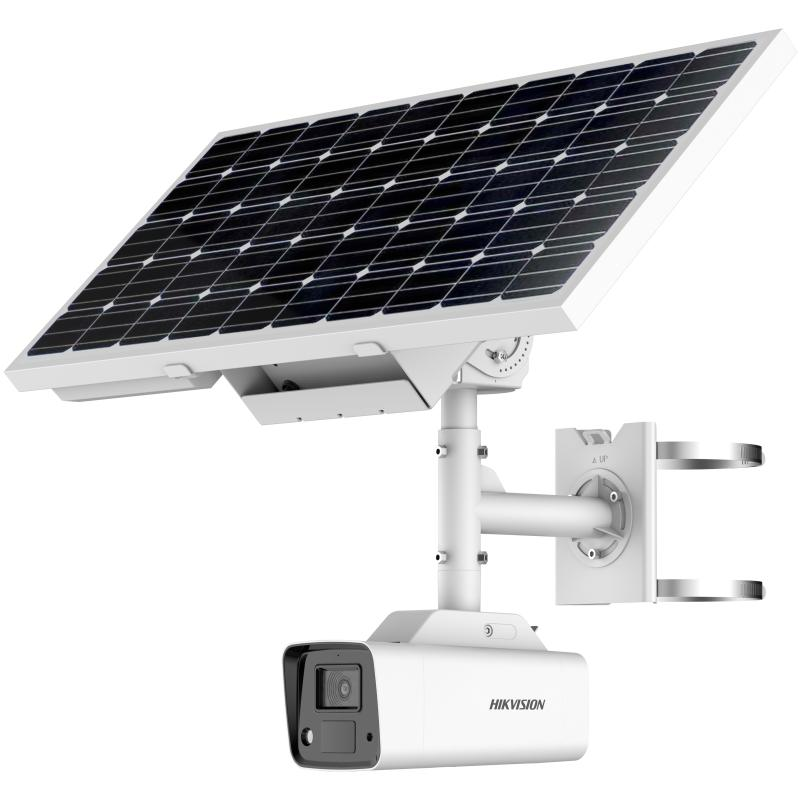

4MP ColorVu Solar-powered Security Camera Setup

• High quality imaging with 4 MP resolution
• Standalone with solar panel and built-in battery
• 24/7 colorful imaging
• Support Human Detection
• Efficient H.265+ compression technology
• Provide real-time security via built-in two-way audio
• Water and dust resistant (IP67)
• Stability against category 12 typhoon
• Support 4G (LTE-TDD/LTE-FDD/TD-SCDMA) communication

Specification

• Camera

• Lens

• DORI

• Illuminator

• Video

• Audio

• Network

• Mobile Communication

• Image

• Interface

• Event

• General

• Battery

• Approval

• Camera
• Image Sensor1/3" Progressive Scan CMOS
• Max. Resolution2560 ? 1440
• Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time1/3 s to 1/100,000 s
• Day & Night24/7 color imaging
• Angle AdjustmentSolar panel: pan: 0? to 358?, tilt: -40? to 0?; camera: pan: 0? to 360?, tilt: -60? to 0?

• Lens
• Lens TypeFixed focal lens, 4 and 6 mm optional
• Iris TypeFixed
• ApertureF1.0
• Depth Of Field

  4 mm: 2.7 m to ?

  6 mm: 5.9 m to ?

• Focal Length & FOV

  4 mm, Horizontal FOV: 75?, Vertical FOV: 40?, Diagonal FOV: 89?

  6 mm, Horizontal FOV: 49?, Vertical FOV: 27?, Diagonal FOV: 57?

• Lens MountM12

• DORI
• DORI

  4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m

  6 mm, D: 120 m, O: 47 m, R: 24 m, I: 12 m

• Illuminator
• Supplement Light TypeWhite Light
• Supplement Light RangePerformance mode: up to 30 m, proactive mode: up to 10 m
• Smart Supplement LightYes

• Video
• Main Stream

  50 Hz: 12.5 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 720)

  60 Hz: 15 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 720)

• Sub-Stream

  50 Hz: 12.5 fps (1280 ? 720?640 ? 480, 640 ? 360)

  60 Hz: 15 fps (1280 ? 720, 640 ? 480, 640 ? 360)

• Video Compression

  Main stream: H.265/ H.264,

  Sub-stream: H.265/H.264/MJPEG,

  H.264+ and H.265+: main stream supports under performance mode

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Region Of Interest (ROI)1 fixed region(s) for main stream
• Scalable Video Coding (SVC)H.264 and H.265 encoding

• Audio
• Audio Sampling Rate8 kHZ/16 kHz
• Environment Noise FilteringYes
• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

• Network
• SecurityPassword protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
• ProtocolsTCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• Network StorageAuto Network Replenishment (ANR)
• ClientiVMS-4200,Hik-Connect,Hik-Central
• Web Browser

  Plug-in required live view: IE 10+,

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

  Local service: Chrome 57.0+, Firefox 52.0+

• Mobile Communication
• SIM Card TypeMicro SIM
• Uplink And Downlink Data RateCat 4, uplink: 50 Mbps, downlink: 150 Mbps
• Frequency

  NL668-EU:

  LTE-TDD: B38/B40/B41

  LTE-FDD: B1/B3/B5/B7/B8/B20/B28

  WCDMA: B1/B5/B8

  GSM: B3/B5/B8

  NL668-LA:

  LTE-TDD: B38/B40

  LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66

  WCDMA:B1/B2/B3/B4/B5/B8

  GSM: B2/B3/B5/B8

  NL668-US:

  LTE-FDD: B2/B4/B5/B12/B13/B17/B66/B71

  WCDMA: B2/B4/B5

• StandardLTE-TDD,LTE-FDD,WCDMA,GSM

• Image
• SNR? 52 dB
• Wide Dynamic Range (WDR)Digital WDR
• Day/Night SwitchDay,Night,Auto,Schedule
• Image EnhancementBLC,HLC,3D DNR
• Image SettingsSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

• Interface
• On-Board Storage

  Built-in eMMC storage, up to 64 GB,

  Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB,For eMMC storage, 50 GB is available for recording.

• Built-In MicrophoneYes
• Built-In SpeakerYes
• Reset KeyYes

• Event
• Basic EventMotion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error
• Linkage




  Upload to NAS/memory card,notify surveillance center,trigger recording,trigger capture,audible warning

• General
• Power

  Power Consumption and Current:

  Typical power scenarios: 1.85 W (4G working)

  Standby scenarios: 40 mW

  Max. power consumption: 6 W

  Power Supply:

  12 VDC ? 25%

  *For debugging only

  40 W (deviation: ? 2 W) Solar panels

  Power Interface:

  Power supply interface: ?5.5 mm coaxial power plug

  Extened solar panel: four-core aviation connector

• MaterialADC12
• Storage Conditions-20 ?C to 50 ?C (-4 ?F to 122 ?F). Humidity 95% or less (non-condensing)
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General FunctionHeartbeat,mirror,flash log
• Startup And Operating Conditions-20 ?C to 50 ?C (-4 ?F to 122 ?F). Humidity 95% or less (non-condensing)
• Dimension679 mm ? 443 mm ? 760 mm (26.7" ? 17.4" ? 29.9")
• Package Dimension910 mm ? 350 mm ? 450 mm (35.8" ? 13.8" ? 17.7")
• Weight




  Approx. 11.570 kg (25.5 lb.)

• With Package Weight




  Approx. 16.21 kg (35.7 lb.)

• Battery
• Battery TypeTernary Lithium
• Capacity8.4 Ah ? 2 packs
• Max. Charging Voltage12.6 V
• Operating Temperature

  Charging: -20 ?C to 45 ?C (-4 ?F to 113 ?F)

  Discharging: -20 ?C to 55 ?C (-4 ?F to 131 ?F)

• Battery Voltage9 V to 12.6 V
• Battery LifeMore than 500 cycles
• Cycle Lifetime

  Performance mode: 3.6 days,

  Proactive mode: 6 days,

  Standby mode: 30 days

• Battery WeightApprox. 1400 g (3.1 lb.)

• Approval
• EMC

  FCC: 47 CFR Part 15, Subpart B,

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Issue 7,

  *FCC certification is only for the device sold in the North American region and the Latin American region. IC certification is only for the device sold in the North American region. CE and RCM certifications are only for the device sold in the European region.

• RF
