DS-3E0105P-EB Hikvision 4 Port Fast Ethernet Unmanaged POE Switch
DS-3E0105P-EB Hikvision 4 Port Fast Ethernet Unmanaged POE Switch
Hurry up, only 10 items left in stock.
Description
Description

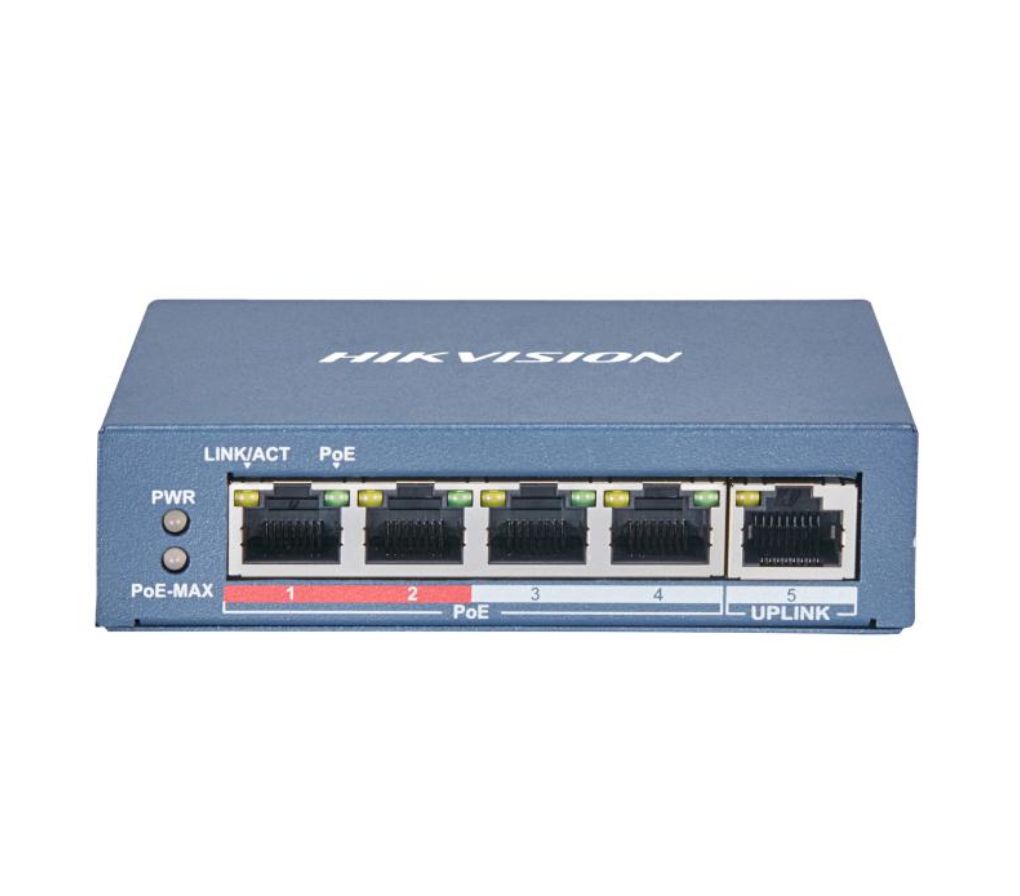

DS-3E0105P-EB Hikvision 4 Port Fast Ethernet Unmanaged POE Switch
This listing includes:
-  (1) ACCESSORIES: DS-3E0105P-EB
DS-3E0105P-EB  view data sheet
4 Port Fast Ethernet Unmanaged POE Switch
- Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
- Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
- 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
- 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
- Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
Couldn't load pickup availability
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
4 Port Fast Ethernet Unmanaged POE Switch
- Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
- Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
- 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
- 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
- Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
- General
- ShellMetal material, fan-free design
- Net Weight0.2 kg (0.4 lb)
- Gross Weight0.74 kg (1.6 lb)
- Dimensions (W ? H ? D)105.0 mm ? 27.6 mm ? 83.1 mm (4.1'' ? 1.1'' ? 3.3'')
- Operating Temperature0 ?C to 40 ?C (32 ?F to 104 ?F)
- Storage Temperature-40 ?C to 85 ?C (-40 ?F to 185 ?F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply48 VDC, 1.35 A
- Max. Power Consumption65 W
- Power Consumption In Idle5 W
- Installation ModeDesk-Mounted,Wall-Mounted;
- Surge Protection6 KV
- Network Parameters
- Ports4 ? 10/100 Mbps PoE port,1 ? 10/100 Mbps RJ45 port
- MAC Address Table1 K
- Switching Capacity1 Gbps
- Packet Forwarding Rate0.74 Mpps
- Internal Cache448 Kbits
- PoE Power Supply
- PoE StandardIEEE 802.3af,IEEE 802.3at
- PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE PortPoE: Ports 1 to 4
- Max. Port Power30 W
- PoE Power Budget60 W
- Dialing Function
- Long Range
Ports 1 to 4: up to 300 m
Long range performance may vary depend on camera model or cable condition.
- Port Isolation/
- PoE Watchdog/
- Approval
- EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU)
Specification
General
Network Parameters
PoE Power Supply
Dialing Function
Approval
