Product Description

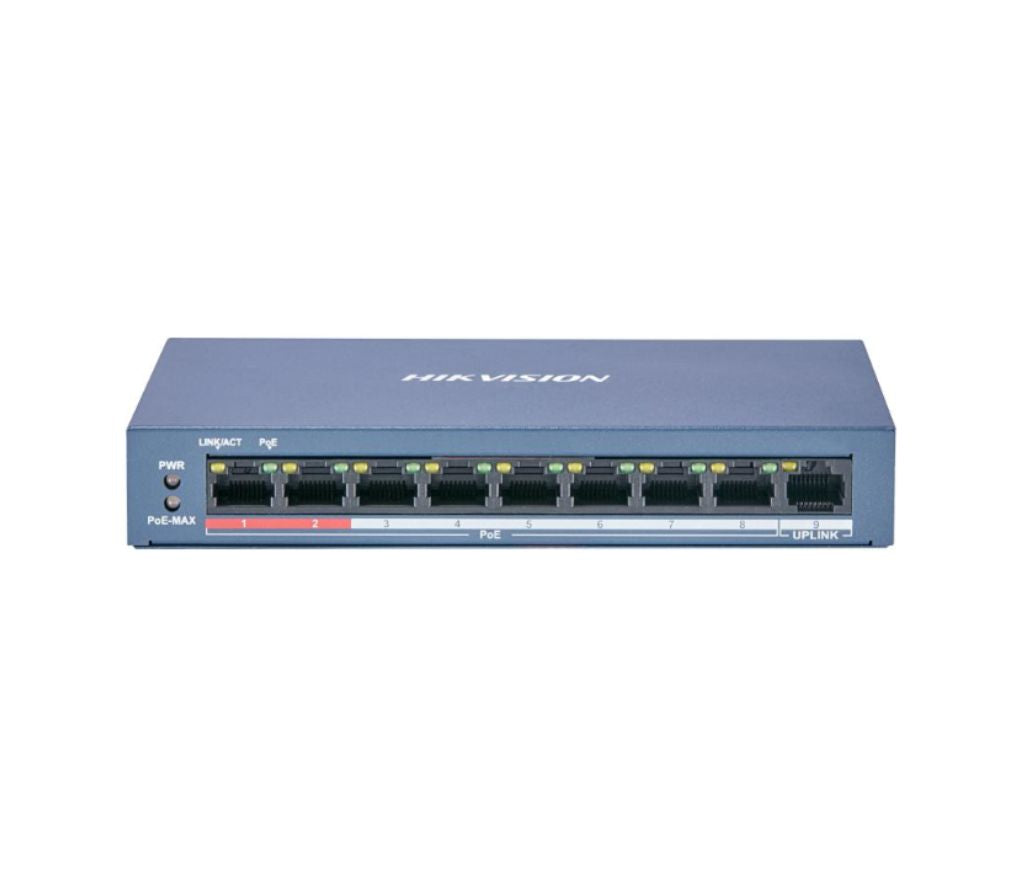

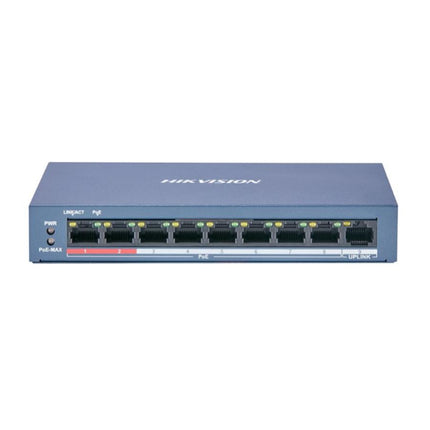

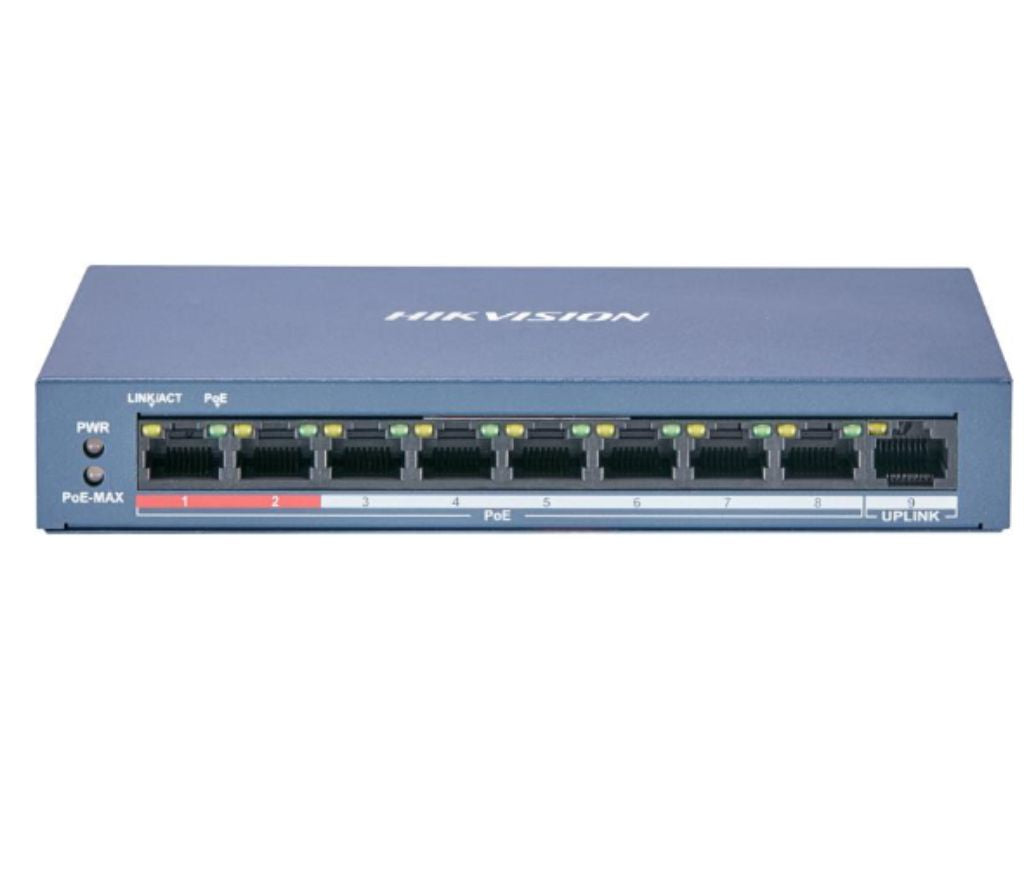

8 Port Fast Ethernet Unmanaged POE Switch

• Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
• Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
• 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
• 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
• Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.

Specification

• General

• Network Parameters

• PoE Power Supply

• Dialing Function

• Approval

• General
• ShellMetal material
• Net Weight0.35 kg (0.77 lb)
• Gross Weight0.89 kg (1.96 lb)
• Dimensions (W ? H ? D)170 mm ? 27.6 mm ? 93.1 mm (6.7'' ? 1.1'' ? 3.7'')
• Operating Temperature?10 ?C to 55 ?C (14 ?F to 131 ?F)
• Storage Temperature?40 ?C to 85 ?C (?40 ?F to 185 ?F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply48 VDC, 1.35 A
• Max. Power Consumption65 W
• Power Consumption In Idle5 W
• Installation ModeDesk-Mounted,Wall-Mounted
• Surge Protection6 KV

• Network Parameters
• Ports8 x 10/100 Mbps PoE port,1 ? 10/100 Mbps RJ45 port
• MAC Address Table2 K
• Switching Capacity1.8 Gbps
• Packet Forwarding Rate1.34 Mpps
• Internal Cache1 Mbits

• PoE Power Supply
• PoE StandardIEEE 802.3af;IEEE 802.3at
• PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• PoE PortPoE: Ports 1 to 8
• Max. Port Power30 W
• PoE Power Budget60 W

• Dialing Function
• Long Range

  Ports 1 to 8 : up to 300 m.

  Long range performance may vary depend on camera model or cable condition.

• Port Isolation/
• PoE Watchdog/

• Approval
• EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
• SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
• Chemistry

  CE-RoHS (201165EU);

  WEEE (201219EU);

  Reach (Regulation (EC) No.19072006)
