Product Description

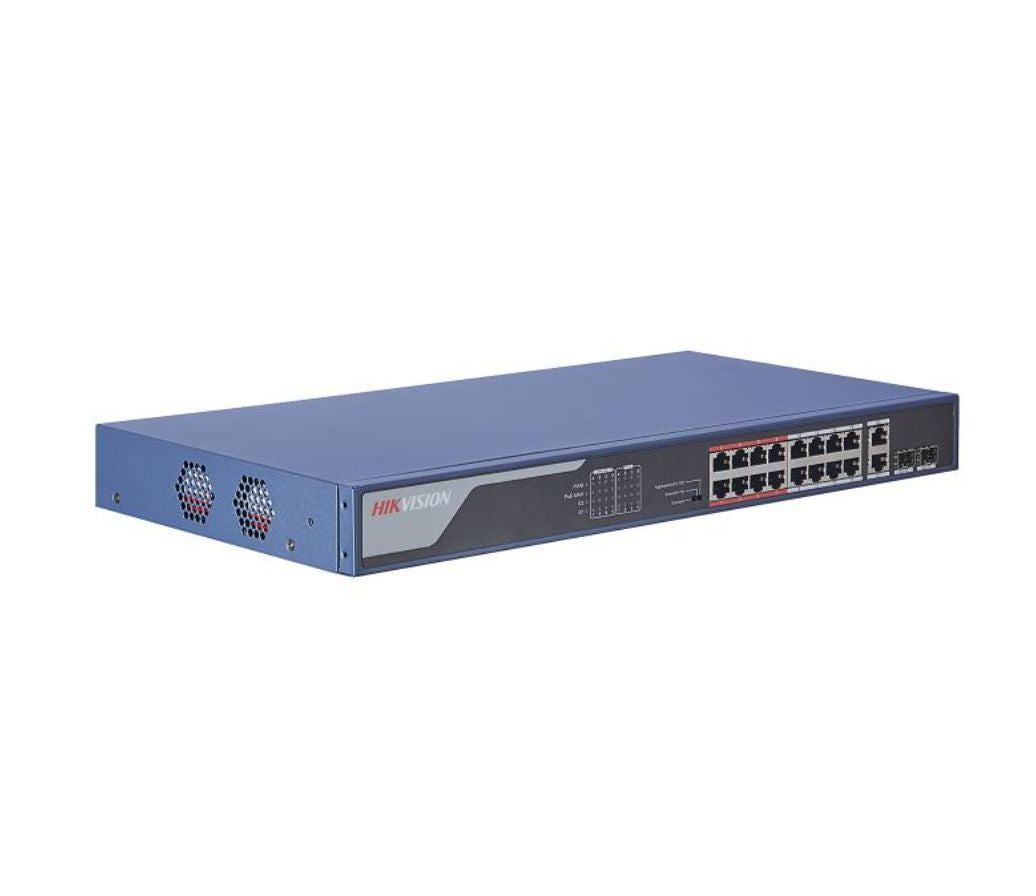

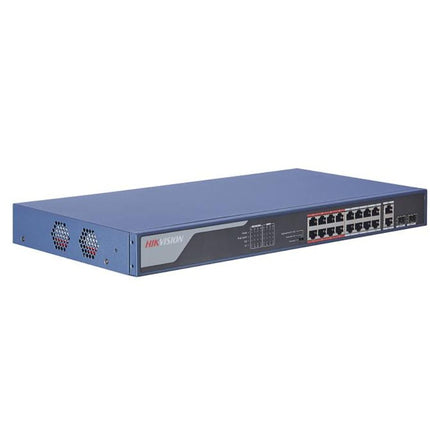

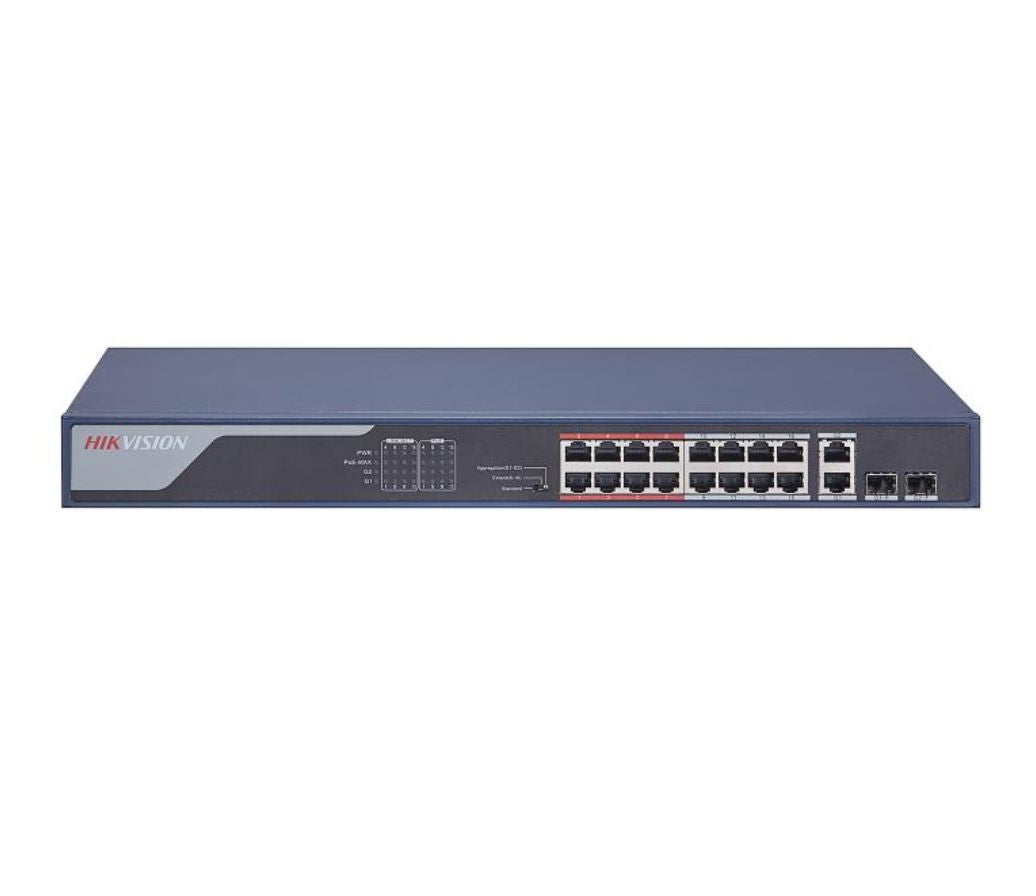

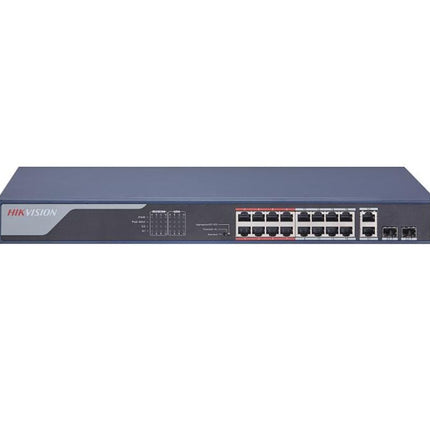

16 Port Fast Ethernet Unmanaged POE Switch

• Intelligent PoE Management: When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
• Up to 300 m Long Range PoE Transmission: The distance between IPCs and switch can reach maximum 300 meters.
• 4/8-Core Adaptive Power Supply with Less Power Loss: 8-core power supply reduces the power loss on cables.
• 6KV Surge Protection to Improve Reliability in Harsh Environment: The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
• Design for Video Transmission: VIP port ensures important data transmission when network congestion occurs.

Specification

• Network Parameters
• Ports16 ? 10/100 Mbps PoE ports, 2 ? Gigabit combos
• Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
• Working ModeStandard mode (default); Extend mode
• StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Forwarding ModeStore-and-forward switching
• High Priority PortsPorts 1 to 8
• MAC Address Table4 K
• Switching Capacity7.2 Gbps
• Packet Forwarding Rate5.356 Mpps
• Internal Cache2.75 Mbits
• Ports For Long-Distance TransmissionPorts 9 to 16
• PoE Power Supply
• PoE StandardIEEE 802.3af, IEEE 802.3at
• PoE Power Pin

  End-span: 1/2(-), 3/6(+)

  Mid-span: 4/5(+), 7/8(-)

  8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

• PoE PortPorts 1 to 16
• Max. Port Power30 W
• PoE Power Budget230 W
• Dialing Function
• Long RangePorts 9 to 16: up to 300 m; and the speed rate of the port is 10 Mbps.
• General
• Dimensions (W ? H ? D)440 mm ? 44 mm ? 220.8 mm (17.3? ? 1.73? ? 8.7?)
• ShellMetal material
• Gross Weight3.47 kg (7.65 lb)
• Net Weight2.65 kg (5.84 lb)
• Operating Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
• Operating Humidity5% to 95% (no condensation)
• Storage Temperature-40 ?C to 85 ?C (-40 ?F to 185 ?F)
• Storage Humidity5% to 95% (no condensation)
• Power Consumption In Idle20 W
• Power Supply100 to 240 VAC, 50/60 Hz, Max. 4 A
• Max. Power Consumption250 W
• Approval
• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
• ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
