Product Description

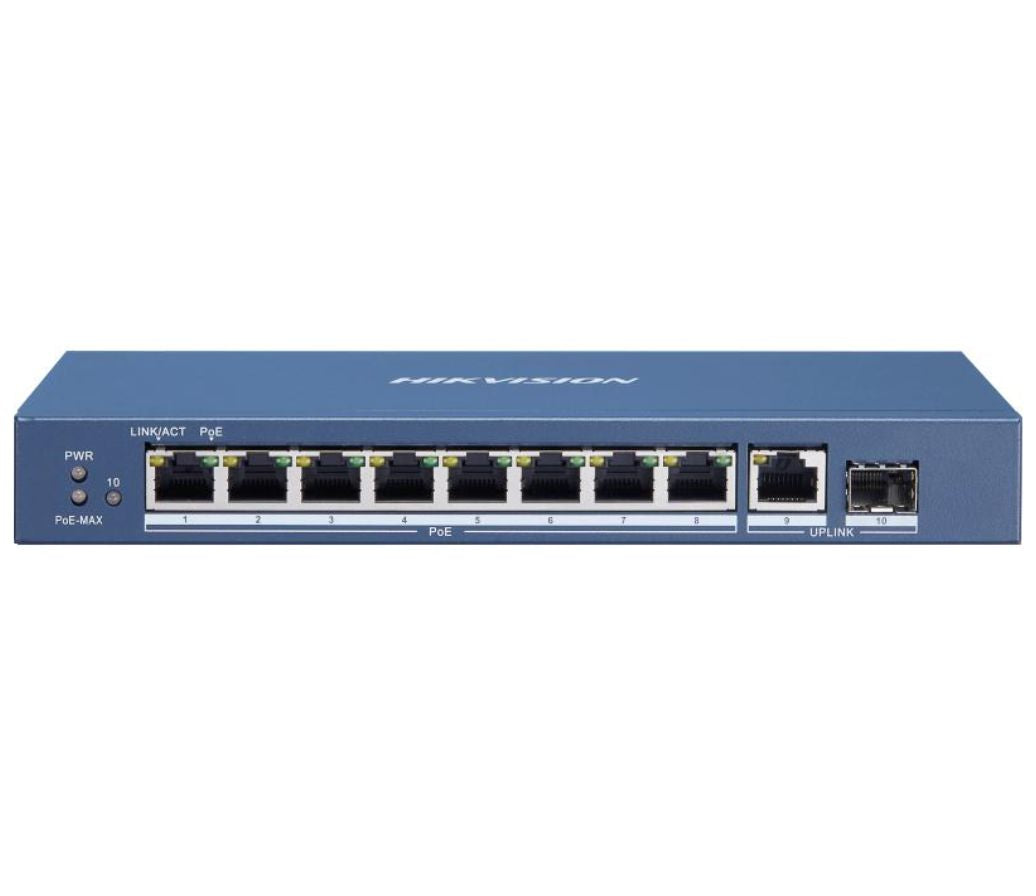

8 Port Gigabit Unmanaged POE Switch

• 8 ? Gigabit PoE ports, 1 ? Gigabit RJ45 port, 1 ? Gigabit SFP fiber optical port
• IEEE 802.3at/af standard
• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
• 6 KV surge protection for PoE ports
• PoE power management
• Gigabit network access
• Wire-speed forwarding and non-blocking design
• Store-and-forward switching
• Solid high-strength metal shell
• Reliable fan-free design






Specification

General

Network Parameters

PoE Power Supply

Dialing Function

Approval

• General
• ShellMetal material
• Net Weight0.635 kg (1.40 lb)
• Gross Weight1.366 kg (3.01 lb)
• Dimensions (W ? H ? D)217.6 mm ? 27.8 mm ? 108.55 mm (8.6'' ? 1.1'' ? 4.3'')
• Operating Temperature?10 ?C to 55 ?C (14 ?F to 131 ?F)
• Storage Temperature?40 ?C to 85 ?C (?40 ?F to 185 ?F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply48 VDC, 1.35 A
• Max. Power Consumption65 W
• Power Consumption In Idle7 W
• Installation ModeDesk-Mounted,Wall-Mounted
• Surge Protection6 KV
• Network Parameters
• Ports8 ? Gigabit PoE port,1 ? Gigabit RJ45 port,1 ? Gigabit fiber optical port
• MAC Address Table4 K
• Switching Capacity20 Gbps
• Packet Forwarding Rate14.88 Mpps
• Internal Cache1.5 Mbits
• PoE Power Supply
• PoE StandardIEEE 802.3af;IEEE 802.3at
• PoE Power PinEnd-span: 1/2(+), 3/6(-)
• PoE PortPoE: Ports 1 to 8
• Max. Port Power30 W
• PoE Power Budget58 W
• Dialing Function
• Long Range/
• Port Isolation/
• PoE Watchdog/
• Approval
• EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
• SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
• Chemistry

  CE-RoHS (201165EU);

  WEEE (201219EU);

  Reach (Regulation (EC) No.19072006)
