Product Description

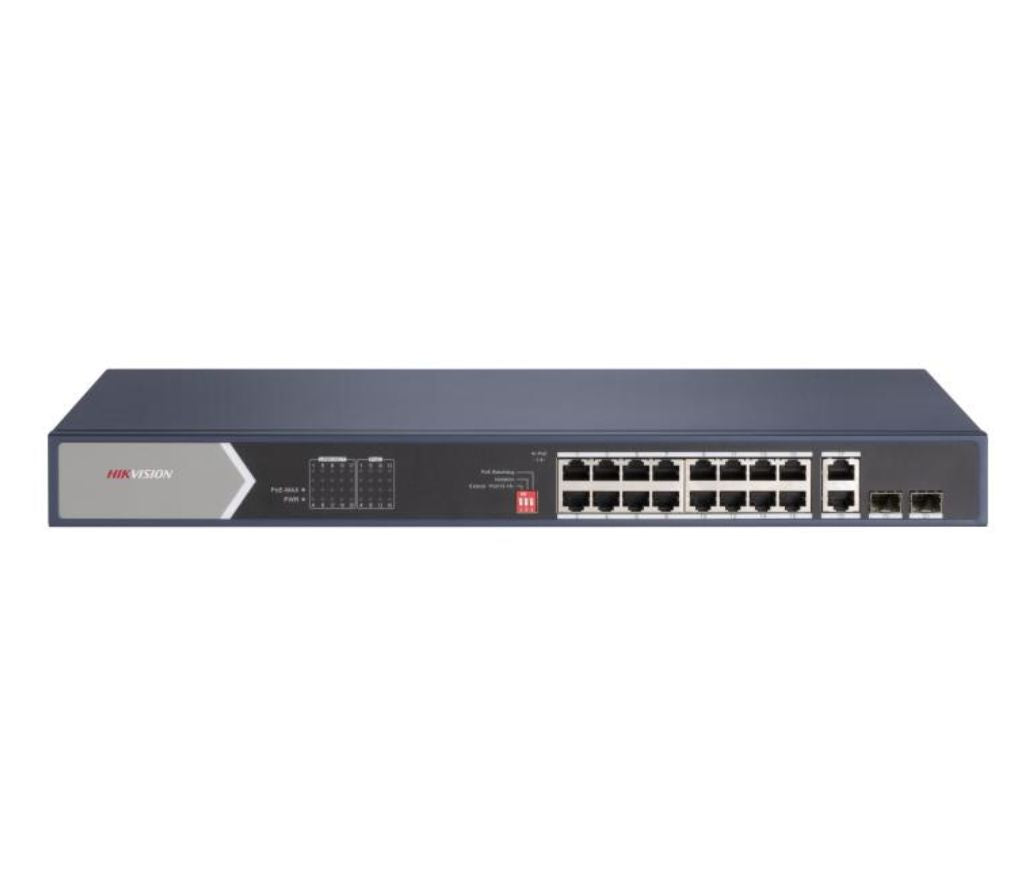

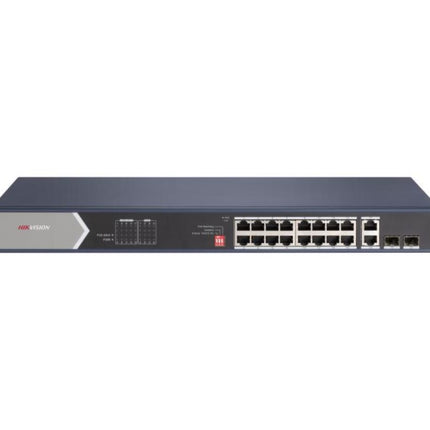

16 Port Gigabit Unmanaged POE Switch

• 12 ? gigabit PoE ports, 4 ? gigabit Hi-PoE ports, 2 ? gigabit RJ45 ports, and 2 ? gigabit fiber optical ports.
• IEEE 802.3at/af/bt standard for Hi-PoE ports (Max. 90 W PoE output).
• IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
• 6 KV surge protection for PoE ports.
• Up to 300 m long-range transmission.
• PoE watchdog to auto detect and restart the cameras that do not respond.
• Port isolation to improve network security.
• Gigabit network access design.
• Wire-speed forwarding.
• Store-and-forward switching.
• Solid high-strength metal shell.






Specification

General

Network Parameters

PoE Power Supply

Dialing Function

Approval

• General
• ShellMetal material
• Net Weight2.79 kg (6.15 lb)
• Gross Weight3.60 kg (7.94 lb)
• Dimensions (W ? H ? D)440.0 mm ? 44.0 mm ? 220.8 mm (17.3'' ? 1.7'' ? 8.7'')
• Operating Temperature0 ?C to 45 ?C (32 ?F to 113 ?F)
• Storage Temperature-40 ?C to 85 ?C (-40 ?F to 185 ?F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply100~240 VAC, 50/60 Hz, Max. 4 A
• Max. Power Consumption250 W
• Power Consumption In Idle25 W
• Installation ModeRack (equipped with mounting ears)
• Surge Protection6 KV
• Network Parameters
• Ports16 ? Gigabit PoE port,2 ? Gigabit RJ45 port,2 ? Gigabit fiber optical port
• MAC Address Table8 K
• Switching Capacity40 Gbps
• Packet Forwarding Rate29.76 Mpps
• Internal Cache4.10 Mbits
• PoE Power Supply
• PoE StandardIEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
• PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• PoE Port

  Hi-PoE: Ports 1 to 4

  PoE: Ports 5 to 16;

• Max. Port Power30 W
• PoE Power Budget225 W
• Dialing Function
• Long Range

  Ports 13 to 16: up to 300 m

  Long range performance may vary depend on camera model or cable condition.

• Port Isolation

  Ports 1 to 16: port isolation mode to improve network security.

  Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

• PoE WatchdogPorts 1 to 16: auto detect and restart the cameras that do not respond.
• Approval
• EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
• SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
• ChemistryCE-RoHS (2011/65/EU)
