Product Description

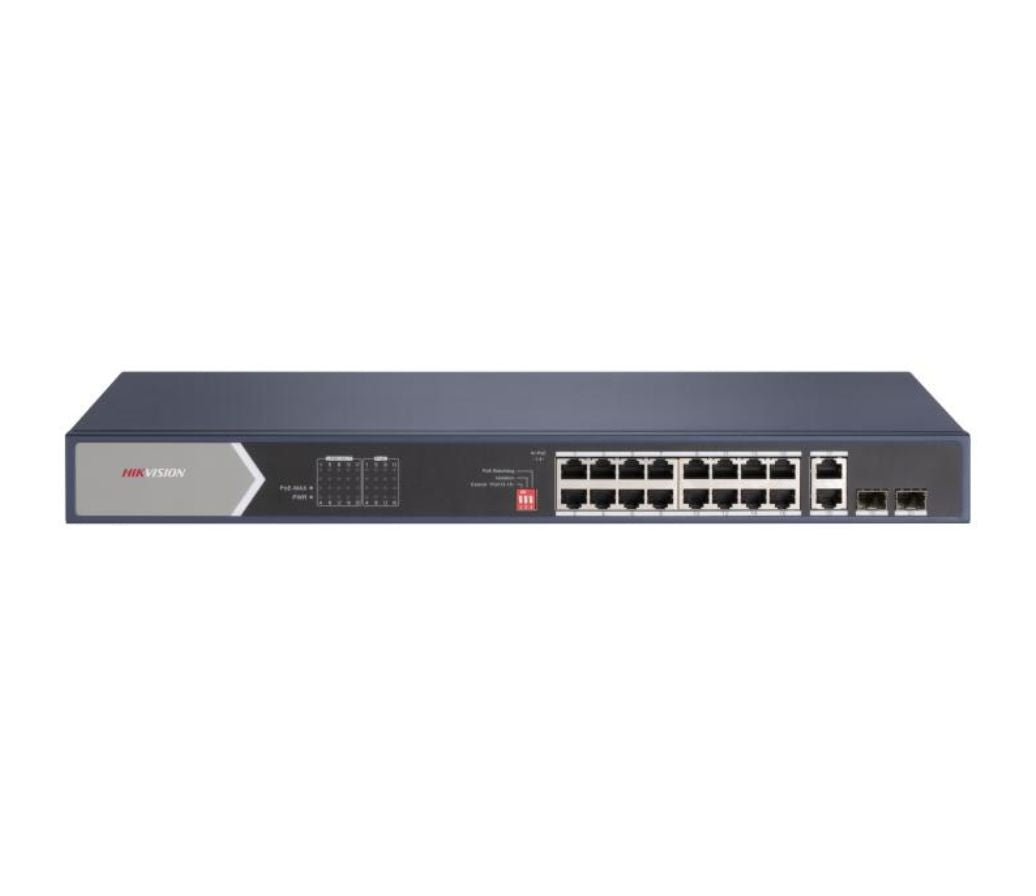

16 Port Gigabit Unmanaged POE Switch

• 12 ? gigabit PoE ports, 4 ? gigabit Hi-PoE ports, 2 ? gigabit RJ45 ports, and 2 ? gigabit fiber optical ports.
• IEEE 802.3at/af/bt standard for Hi-PoE ports (Max. 90 W PoE output).
• IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
• 6 KV surge protection for PoE ports.
• Up to 300 m long-range transmission.
• PoE watchdog to auto detect and restart the cameras that do not respond.
• Port isolation to improve network security.
• Gigabit network access design.
• Wire-speed forwarding.
• Store-and-forward switching.
• Solid high-strength metal shell.

Specification

• Network Parameters
• Ports12 ? Gigabit PoE ports, 4 ? Gigabit Hi-PoE ports, 2 ? Gigabit RJ45 ports, and 2 ? Gigabit fiber optical ports
• Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
• Working ModeStandard mode (default), Extend mode Isolation mode, PoE watchdog mode
• StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
• Forwarding ModeStore-and-forward switching
• MAC Address Table8 K
• Switching Capacity40 Gbps
• Packet Forwarding Rate29.76 Mpps
• Internal Cache4.1 Mbits
• Ports For Long-Distance TransmissionPorts 13 to 16
• PoE Power Supply
• PoE Standard

  Ports 1 to 4: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

  Ports 5 to 16: IEEE 802.3af, IEEE 802.3at

• PoE Power Pin

  Ports 1 to 4 and 13 to 16: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

  Ports 5 to 12: End-span: 1/2(-), 3/6(+)

• PoE PortPorts 1 to 16
• Max. Port Power

  Ports 1 to 4: 90 W

  Ports 5 to 16: 30 W

• PoE Power Budget225 W
• Dialing Function
• Long RangePorts 13 and 16: up to 300 m.
• Port IsolationPorts 1 to 16: port isolation mode to improve network security.
• PoE WatchdogPorts 1 to 16: auto detect and restart the cameras that do not respond.
• General
• Dimensions (W ? H ? D)440 mm ? 220.8 mm ? 44 mm (17.32? ? 8.69? ? 1.73?)
• ShellMetal material
• Gross Weight3.800 kg (8.38 lb)
• Net Weight2.79 kg (6.15 lb)
• Operating Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
• Operating Humidity5% to 95% (no condensation)
• Storage Temperature-40 ?C to 85 ?C (-40 ?F to 185 ?F)
• Storage Humidity5% to 95% (no condensation)
• Power Supply100 to 240 VAC, 50/60Hz, Max. 4 A
• Power Consumption In Idle< 25 W
• Max. Power Consumption250 W
• Approval
• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
• ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
