Product Description

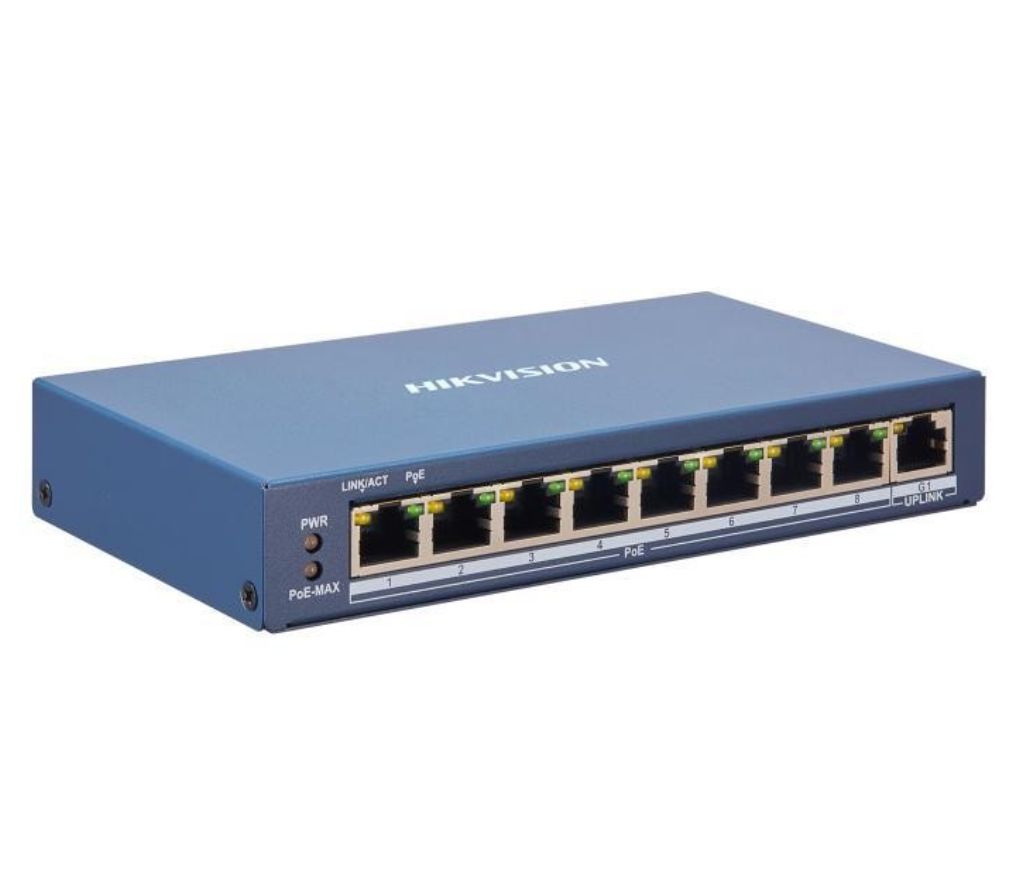

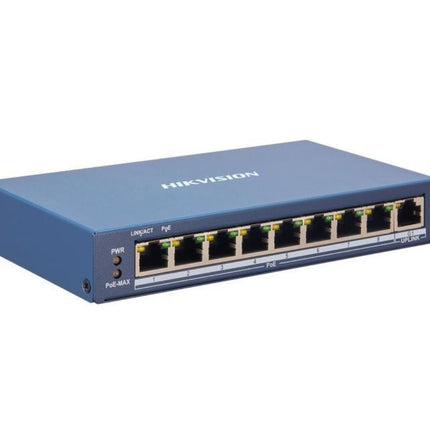

8 Port Fast Ethernet Smart POE Switch

• 8 ? 100 Mbps PoE RJ45 ports, 1 ? gigabit network RJ45 port.
• IEEE 802.3at/af standard for PoE ports.
• Network topology management, alarm push, network health monitor.
• 6 KV surge protection for PoE ports.
• Up to 300 m long-range transmission.
• AF/AT camera can reach up to 300 m in extend mode.

Specification

• Network Parameters
• Port TypeRJ45 port,full duplex,MDIMDI-X adaptive
• Ports8 ? 10/100 Mbps PoE port,1 ? 1 Gigabit RJ45 port
• StandardIEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab
• Working ModeStandard mode (default),Extend mode
• Forwarding ModeStore-and-forward switching
• MAC Address Table16 K
• Internal Cache4 Mbits
• Switching Capacity3.6 Gbps
• Packet Forwarding Rate2.6784 Mpps
• PoE Power Supply
• PoE StandardIEEE 802.3af,IEEE 802.3at
• PoE Power Pin

  End-span: 1/2(-), 3/6(+)

  Mid-span: 4/5(+), 7/8(-)

  8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

• PoE PortPoE: Ports 1 to 8
• Max. Port Power30 W
• PoE Power Budget110 W
• Software Function
• Device MaintenanceSupport remote upgrade, default parameter restoration, logs viewing, and basic network parameter configuration.
• Port ConfigurationSupport port rate configuration, flow control, and ports enabling.
• PoE Configuration

  PoE watchdog: Ports 1 to 8 auto detect and restart the cameras that do not respond.

  PoE enabling: supported

• General
• ShellMetal material, fan-free design
• Net Weight0.35 kg (0.77 lb)
• Gross Weight1.114 kg (2.45 lb)
• Dimensions (W ? H ? D)170.00 mm ? 27.60 mm ? 93.10 mm (6.69'' ? 1.09'' ? 3.67'')
• Operating Temperature0 ?C to 40 ?C (32 ?F to 104 ?F)
• Storage Temperature-40 ?C to 85 ?C (-40 ?F to 185 ?F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply48 VDC, 2.5 A
• Max. Power Consumption120 W
• Approval
• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
• ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
