Product Description

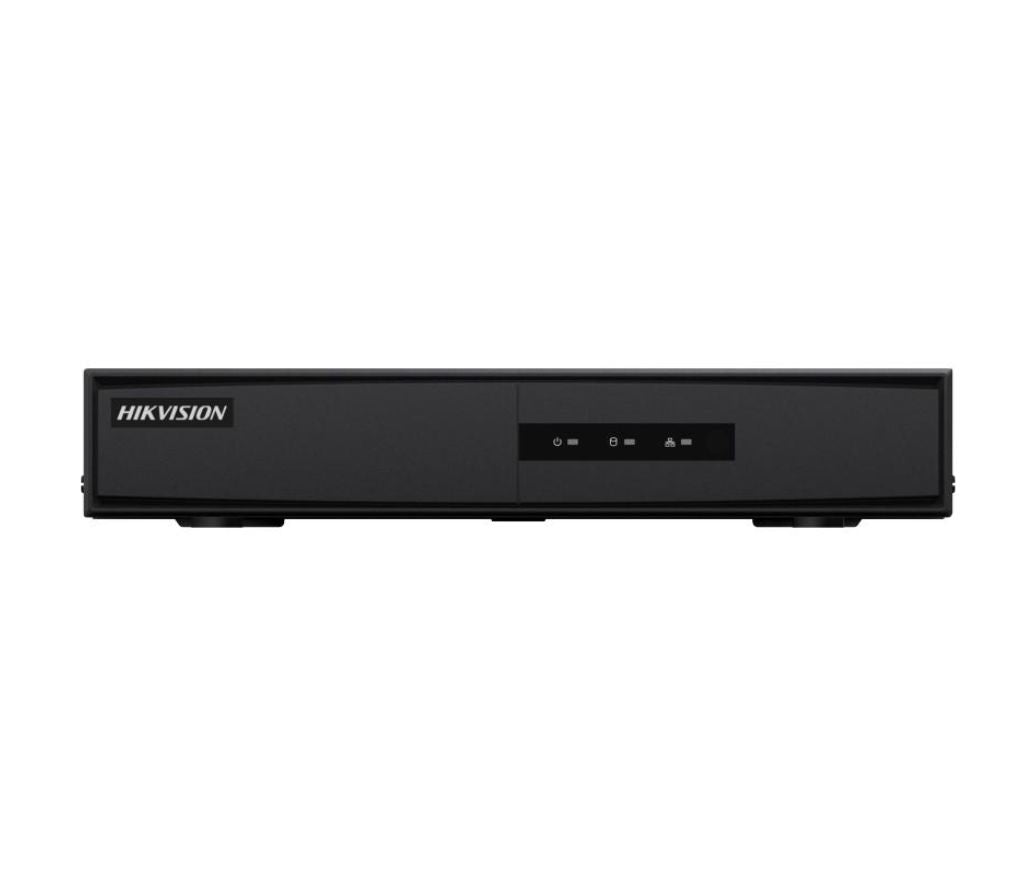

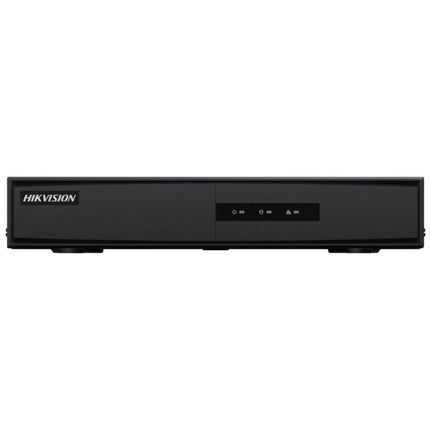

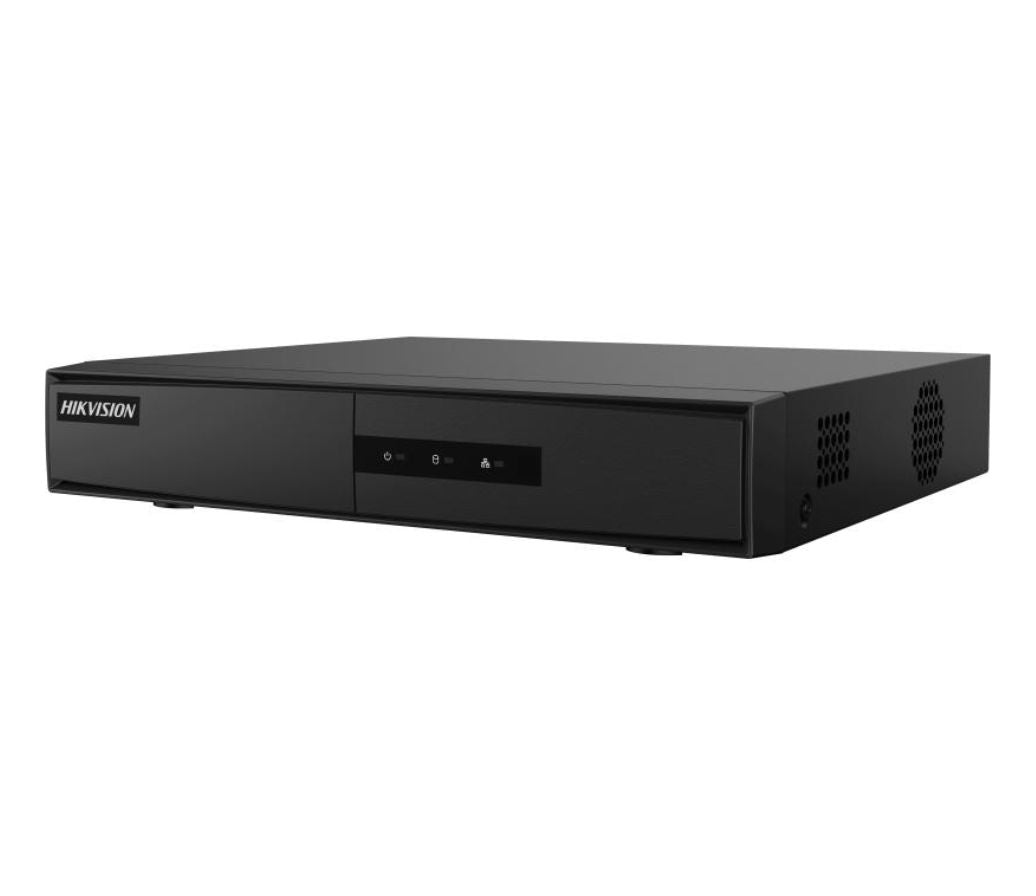

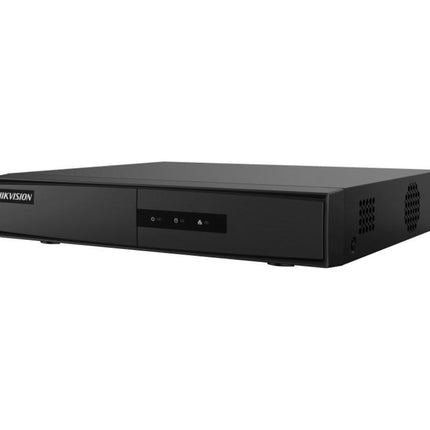

4ch Mini 1U 4 PoE NVR

• H.265+/H.265/H.264+/H.264 video compression
• Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
• Up to 4ch network camera inputs
• Up to 4ch 1080p decoding capability
• HDMI and VGA simultaneous output





Specification

Video And Audio

Decoding

Network

PoE

Auxiliary Interface

General

Certification

• Video And Audio
• IP Video Input

  4ch

  Up to 6 MP resolution

• Incoming Bandwidth40 Mbps
• Outgoing Bandwidth60 Mbps
• HDMI Output1-ch, 1920 ? 1080p/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz
• VGA Output1-ch, 1920 ? 1080p/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz
• Video Output ModeHDMI/VGA simultaneous output
• Decoding
• Decoding FormatH.265+/H.265/ H.264+/H.264
• Recording Resolution6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous Playback4ch
• Decoding Capability4ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
• Stream TypeVideo, Video & Audio
• Network
• Remote Connection16
• Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP?
• Network Interface1, RJ-45 10/100Mbps self-adaptive Ethernet interface
• PoE
• Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power? 36 W
• StandardIEEE 802.3 af/at
• Auxiliary Interface
• SATA1 SATA interface
• CapacityUp to 6TB capacity for each disk
• Alarm In/OutN/A
• USB InterfaceRear panel: 2 ? USB 2.0
• General
• Power Supply48 VDC, 1 A
• Consumption? 10 W
• Working Temperature-10 to +55? C (+14 to +131? F)
• Working Humidity10% to 90%
• Dimension (W ? D ? H)265 ? 223 ? 48 mm (10.4" ? 8.8" ? 1.9")
• Weight? 1 kg (2.2 lb)
• Certification
• CEEN50130-4, EN 61000-3-2,EN 61000-3-3
