Data sheet PDF Product Description

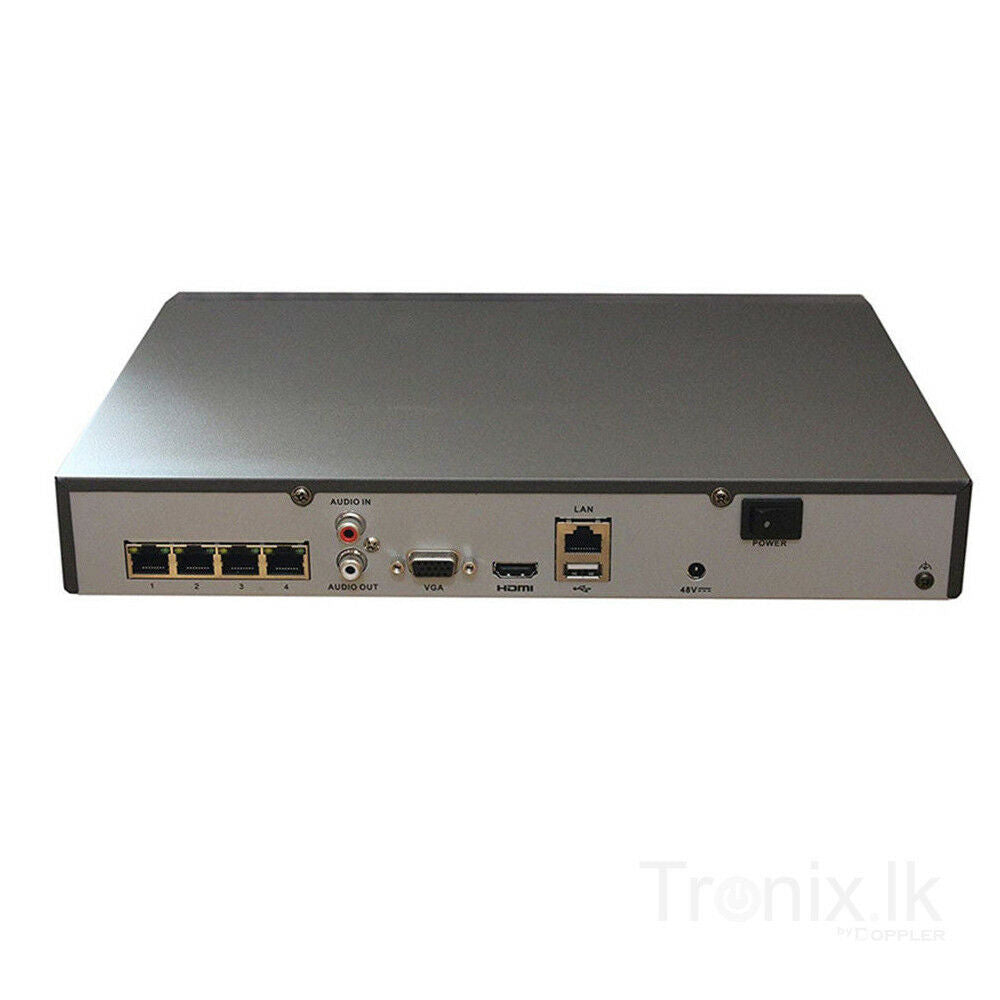

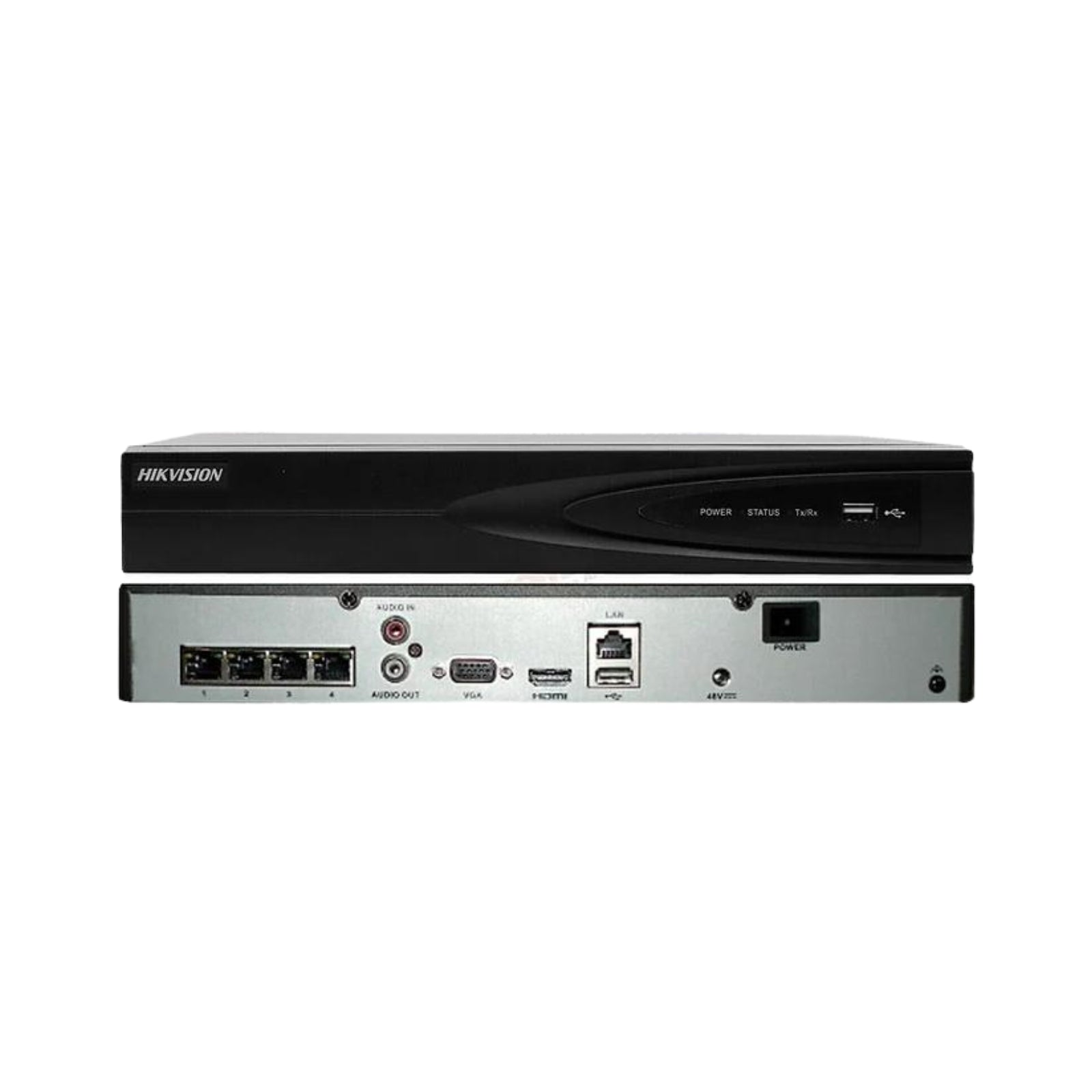

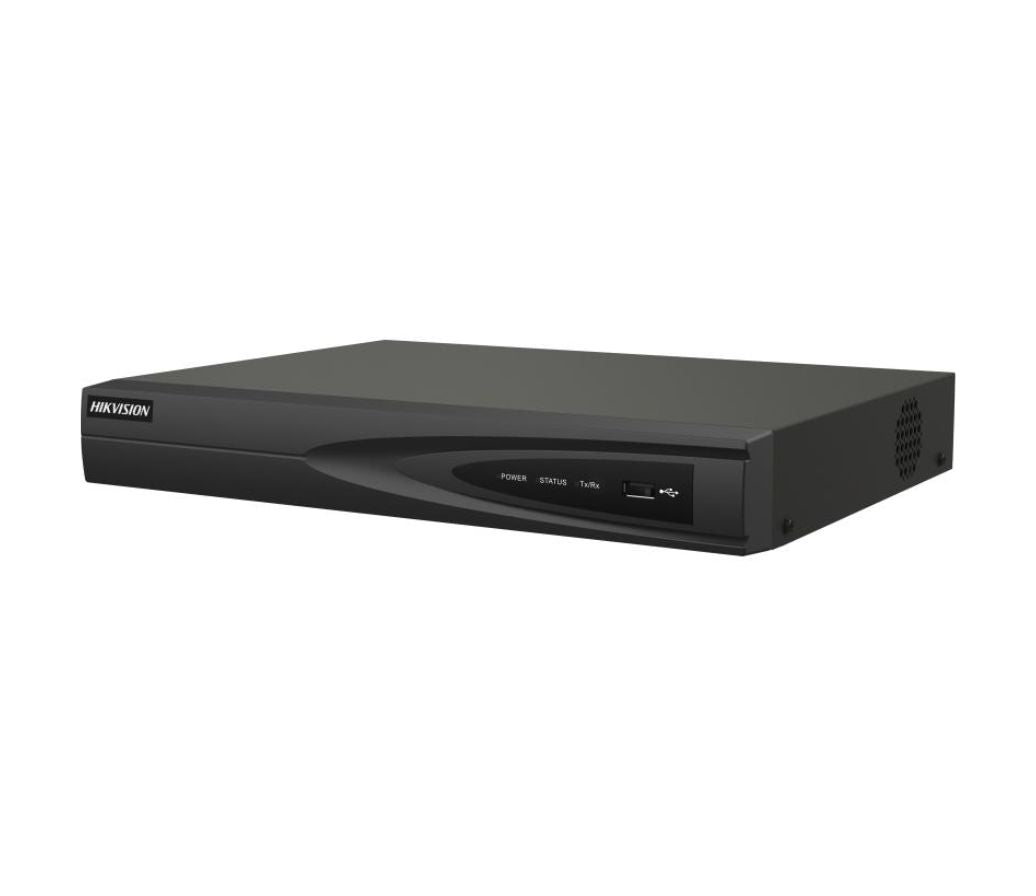

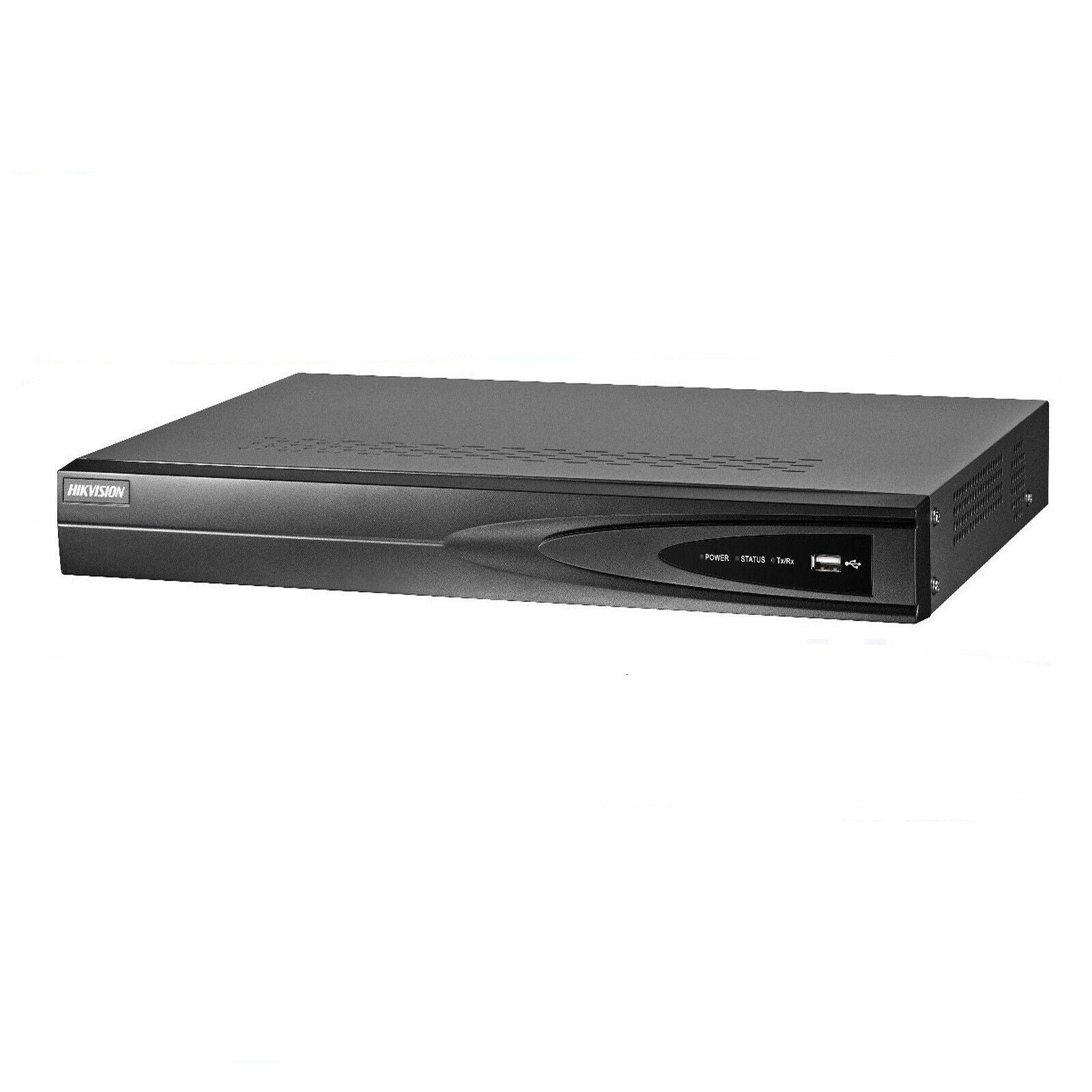

4ch 1U 4 PoE 4K NVR
Up to 4ch IP camera inputs H.265+/H.265/H.264+/H.264 video formats Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity Up to 40 Mbps incoming bandwidth Specification
Motion Detection 2.0 Human/Vehicle Analysis1-ch;4ch Recording Stream TypeVideo, Video & Audio Audio CompressionG.711ulaw/G.711alaw/G.722/G.726 Video And Audio IP Video Input4ch Incoming Bandwidth40 Mbps Outgoing Bandwidth80 Mbps HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz;1-ch, 4K?4096x2160?/30Hz?4K (3840?2160) /30Hz, 2K?2560?1440?/60Hz?1920?1080/60Hz?1600?1200/60Hz?1280?1024/60Hz?1280?720/60Hz; ,HDMI/VGA simultaneous output,;1-ch, 4K (3840 ? 2160)/30Hz, 1920 ? 1080p/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz; ,HDMI/VGA simultaneous output,;1-ch, 4K?4096x2160?/30Hz?4K (3840?2160) /30Hz, 2K?2560?1440?/60Hz?1920?1080/60Hz?1600?1200/60Hz?1280?1024/60Hz?1280?720/60Hz ,HDMI/VGA simultaneous output, VGA Output1-ch, 1920 ? 1080p/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz ;HDMI/VGA simultaneous output,;1-ch, 1920 ? 1080/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz;1-ch, 1920 ? 1080p/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz ;,HDMI/VGA simultaneous output, Video Output ModeHDMI/VGA simultaneous output Audio Output1-ch, RCA (Linear, 1 K?) Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k ?) Decoding Decoding FormatH.265+,H.265,H.264+,H.264 Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF Decoding Capability1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) Synchronous Playback4ch Network Remote Connection32 Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface PoE Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface Power? 50 W StandardIEEE 802.3 af/at Auxiliary Interface SATA1 SATA interface CapacityUp to 8 TB capacity for each disk USB Interface2 ? USB 2.0 Alarm In/OutN/A (4/1 is optional) General Power Supply48 VDC, 1.35 A Consumption? 10 W (without HDD, and PoE off) Working Temperature-10 to +55? C (+14 to +131? F) Working Humidity10% to 90% Dimension (W ? D ? H)320 ? 240 ? 48 mm (12.4" ? 9.4" ? 1.9") Weight? 1 kg (without HDD, 2.2 lb.) Certification FCCPart 15 Subpart B, ANSI C63.4-2014 CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
