DS-7716NI-I4 (B)
DS-7716NI-I4 (B)
Out of stock
Description
Description

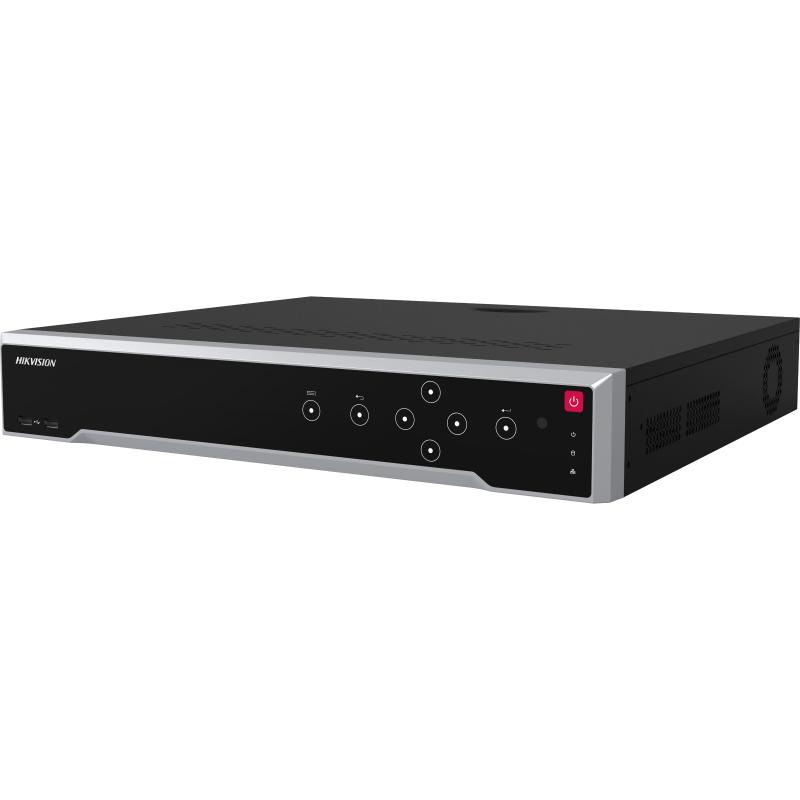

16-ch 1.5U 16 PoE 4K NVR
- Up to 16 channel IP cameras can be connected
- Up to 2-ch @ 12 MP/16-ch @ 1080p decoding capacity
- Only (B) version support 2 HDMI and 1 VGA interfaces, and HDMI interfaces support independent video output
- 4 HDDs for continuous video recording
- Plug & Play with 16 Power-over-Ethernet (PoE) interfaces
- Supports various special function cameras, including thermal camera/fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
- Advanced streaming technology enables smooth live view and data self-correction in poor network conditions
- Supports dual-stream recording to save time and bandwidth.
Couldn't load pickup availability
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
16-ch 1.5U 16 PoE 4K NVR
- Up to 16 channel IP cameras can be connected
- Up to 2-ch @ 12 MP/16-ch @ 1080p decoding capacity
- Only (B) version support 2 HDMI and 1 VGA interfaces, and HDMI interfaces support independent video output
- 4 HDDs for continuous video recording
- Plug & Play with 16 Power-over-Ethernet (PoE) interfaces
- Supports various special function cameras, including thermal camera/fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
- Advanced streaming technology enables smooth live view and data self-correction in poor network conditions
- Supports dual-stream recording to save time and bandwidth.
Specification
Video And Audio
Decoding
Network
PoE
Auxiliary Interface
General
Certification
Video And Audio
IP Video Input
16-ch;16-ch
Up to 12 MP resolution
Outgoing Bandwidth
256 Mbps
VGA Output
1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz;HDMI,VGA
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
HDMI 1 Output
4K (3840 ? 2160)/60Hz, 4K (3840 ? 2160)/30Hz, 1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
HDMI 2 Output
1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
Video Output Mode
HDMI1/VGA simultaneous output, HDMI2/VGA independent output
Incoming Bandwidth
160 Mbps
Audio Output
1-ch, RCA (Linear, 1 K?)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
Decoding
Dual-Stream Recording
Support
Stream Type
Video, Video & Audio
Audio Compression
G.711ulaw/G.711alaw/G.722/G.726
Decoding Format
H.265+/H.265/H.264+/H.264/MPEG4;H.265/H.265+/H.264/H.264+/MPEG4
Decoding Capability
2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps);16-ch@1080p
Synchronous Playback
16-ch
Recording Resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF /DCIF/ 2CIF/CIF/QCIF ;12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
Network
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS
Remote Connection
128
Network Interface
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
Interface
16, RJ-45 10/100 Mbps self-adaptive Ethernet interface;16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
Power
? 200 W
Standard
IEEE 802.3 af/at
Auxiliary Interface
ESATA
1 eSATA interface (optional)
SATA
4 SATA interfaces for 4HDDs;4 SATA interfaces
Capacity
Up to 10 TB capacity for each disk
Serial Interface
1 RS-485 (half-duplex), 1 RS-232
USB Interface
Front panel: 2 ? USB 2.0; Rear panel: 1 ? USB 3.0
Alarm In/Out
16/4 (16/8 optional)
General
Power Supply
100 to 240 VAC, 50 to 60 Hz
Consumption
? 20 W (without HDD and PoE off)
Working Temperature
-10 ?C to 55 ?C (14 ?F to 131 ?F)
Working Humidity
10% to 90%
Chassis
19-inch rack-mounted 1.5U chassis
Dimension (W ? D ? H)
440 ? 387 ? 75 mm ( 17.3"? 15.2" ? 3.0")
Weight
? 5 kg (11 lb) (without HDD)
Certification
FCC
Part 15 Subpart B, ANSI C63.4-2014
CE
EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
