Product Description

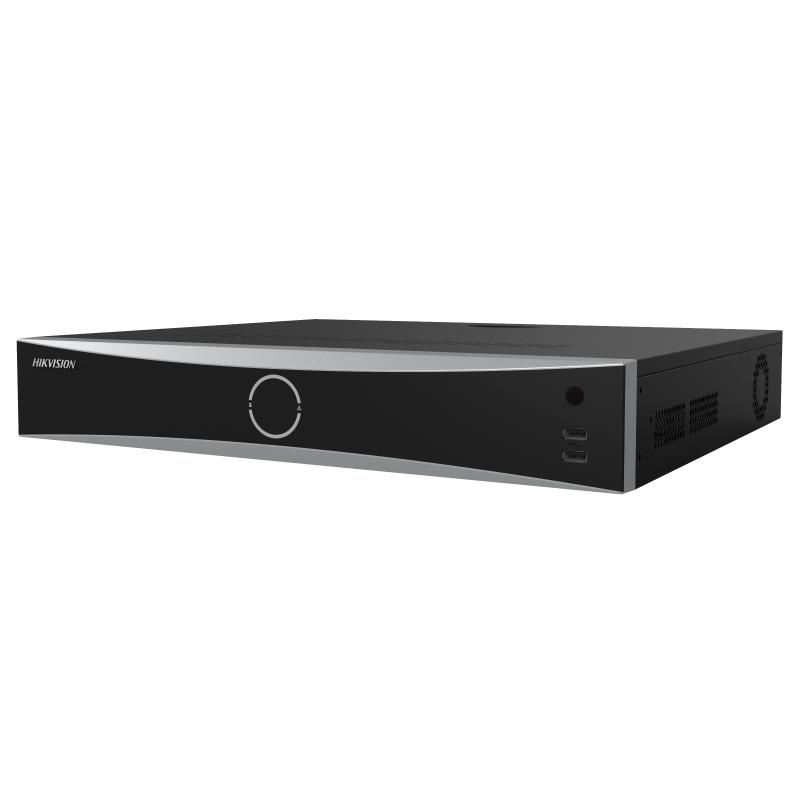

16-ch 1.5U 16 POE K Series AcuSense 4K NVR

• Up to 16-ch IP camera inputs, plug & play with 16 power-over-Ethernet (PoE) interfaces
• H.265+/H.265/H.264+/H.264 video formats
• Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
• Up to 160 Mbps incoming bandwidth
• Adopt Hikvision Acusense technology to minimize manual effort and security costs

? Specification
Intelligent Analytics
AI by Device Facial recognition, perimeter protection, motion detection 2.0
AI by Camera
Facial recognition, perimeter protection, throwing objects from building, motion
detection2.0, ANPR, VCA
Facial Recognition
Facial Detection and Analytics Face picture comparison, human face capture, face picture search
Face Picture Library
Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ? 4
MB, total capacity ? 1 GB)
Facial Detection and Analytics
Performance
1-ch, 8 MP
Face Picture Comparison 4-ch
Motion Detection 2.0
By Device
All channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video
analysis for human and vehicle recognition to reduce false alarm
By Camera All channels
Perimeter Protection
By Device
2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle
recognition to reduce false alarm
By Camera All channels
Video and Audio
IP Video Input 16-ch
Incoming Bandwidth 160 Mbps
Outgoing Bandwidth 160 Mbps
HDMI Output
1-ch, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1600 ?
1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
VGA Output 1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz
Video Output Mode HDMI/VGA independent output
CVBS Output N/A
Audio Output 1-ch, RCA (Linear, 1 K?)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input )
Decoding
Decoding Format H.265/H.265+/H.264+/H.264
Recording Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback 16-ch
Decoding Capability
AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30
fps)
AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30
fps)
Stream Type Video, Video & Audio
Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC
Network
Remote Connection 128
API ONVIF (profile S/G); SDK; ISAPI
Compatible Browser IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP,
UPnP?, HTTP, HTTPS
Network Interface 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
Interface 16
Power ? 200 W
Standard IEEE 802.3af/at
Auxiliary Interface
SATA 4 SATA interfaces
Capacity Up to 10 TB capacity for each HDD
Serial Interface 2 RS-485 (half-duplex), 1 RS-232
Alarm In/Out 16/4 (16/9 is optional)
USB Interface Front panel: 2 ? USB 2.0; Rear panel: 1 ? USB 3.0
Ctrl 12V N/A (optional to support)
DC 12V N/A (optional to support)
General
GUI Language
English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French,
Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish
Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese,
Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian,
Kyrgyz , Brazilian Portuguese, Indonesian
Power Supply 100 to 240 VAC, 50 to 60Hz
Consumption ? 20 W (without HDD and PoE off)
Working Temperature -10 ?C to 55 ?C (14 ?F to 131 ?F)
Working Humidity 10 to 90 %
Dimension (W ? D ? H) 445 ? 400 ? 75 mm ( 17.5"? 15.7" ? 3.0")
Weight ? 5 kg (without HDD, 11 lb.)
Certification
FCC Part 15 Subpart B, ANSI C63.4-2014
CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Obtained Certification CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
