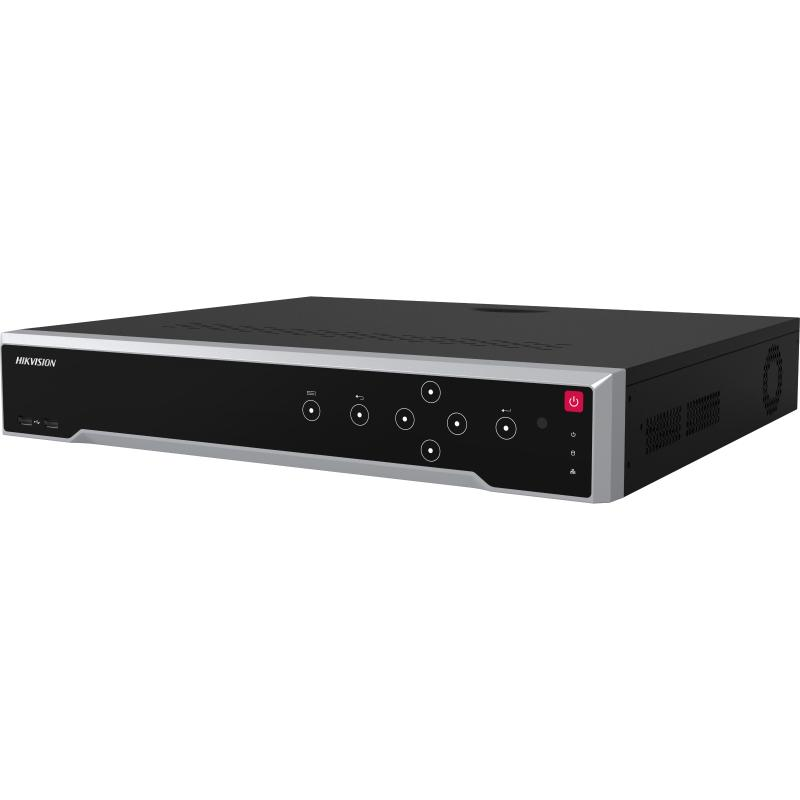

DS-7732NI-M4/16P
DS-7732NI-M4/16P
Available in stock (11)
Description
Description

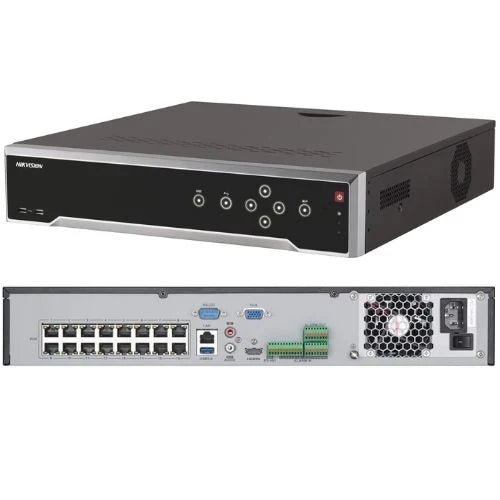

32-ch 1.5U 16 PoE 8K NVR
- H.265+/H.265/H.264+/H.264 video formats
- Up to 32-ch IP camera inputs
- Up to 32-ch@1080p decoding capacity
- Up to 320 Mbps incoming bandwidth
Couldn't load pickup availability
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
32-ch 1.5U 16 PoE 8K NVR
- H.265+/H.265/H.264+/H.264 video formats
- Up to 32-ch IP camera inputs
- Up to 32-ch@1080p decoding capacity
- Up to 320 Mbps incoming bandwidth
? Specification
Video and Audio
IP Video Input
32-ch
Up to 32 MP resolution
*: The NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Incoming Bandwidth 320 Mbps
Outgoing Bandwidth 400 Mbps
HDMI 1 Output
8K (7680 ? 4320)/30Hz, 4K (3840 ? 2160)/60Hz, 4K (3840 ? 2160)/30Hz, 2K (2560 ?
1440)/60Hz, 1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ?
720/60Hz, 1024 ? 768/60Hz
HDMI 2 Output
4K (3840 ? 2160)/60Hz, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ?
1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
VGA Output
1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ?
768/60Hz
Video Output Mode HDMI1/VGA simultaneous output, HDMI2/VGA independent output
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
Audio Output 1-ch, RCA (Linear, 1 K?)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
Decoding
Decoding Format H.265+/H.265/H.264+/H.264
Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/
2CIF/CIF/QCIF
*: The NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Synchronous Playback 16-ch
Decoding Capability
2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30
fps)/40-ch@1080p (30 fps)
Dual-Stream Recording Support
Stream Type Video, Video & Audio
Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Network
Remote Connection 128
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP,
UPnP?, HTTP, HTTPS
Network Interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
Interface 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power ? 200 W
Standard IEEE 802.3 af/at
RAID
RAID Type N/A

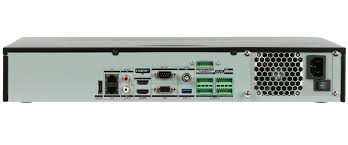

Auxiliary Interface
eSATA 1 eSATA interface
SATA 4 SATA interfaces
Capacity Up to 16 TB capacity for each disk
Serial Interface 2 RS-485 (half-duplex), 1 RS-232
Alarm In/Out 16/9
USB Interface Front panel: 2 ? USB 2.0; Rear panel: 1 ? USB 3.0
Ctrl 12V
Controllable 12 VDC, 1 A power output for external alarm device; The power will be
turned on when the alarm output is triggered.
*: The Ctrl 12V power is controlled by alarm output 9.
DC 12V 12 VDC, 1 A power output
General
Power Supply 100 to 240 VAC, 50 to 60 Hz
Consumption ? 15 W (without HDD and PoE off)
Working Temperature -10 ?C to 55 ?C (14 ?F to 131 ?F)
Working Humidity 10% to 90%
Chassis 19-inch rack-mounted 1.5U chassis
Dimension (W ? D ? H) 445 ? 400 ? 75 mm ( 17.5"? 15.7" ? 3.0")
Weight ? 5 kg (without HDD, 11 lb.)
Certification
FCC Part 15 Subpart B, ANSI C63.4-2014
CE
EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201
9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
