Product Description

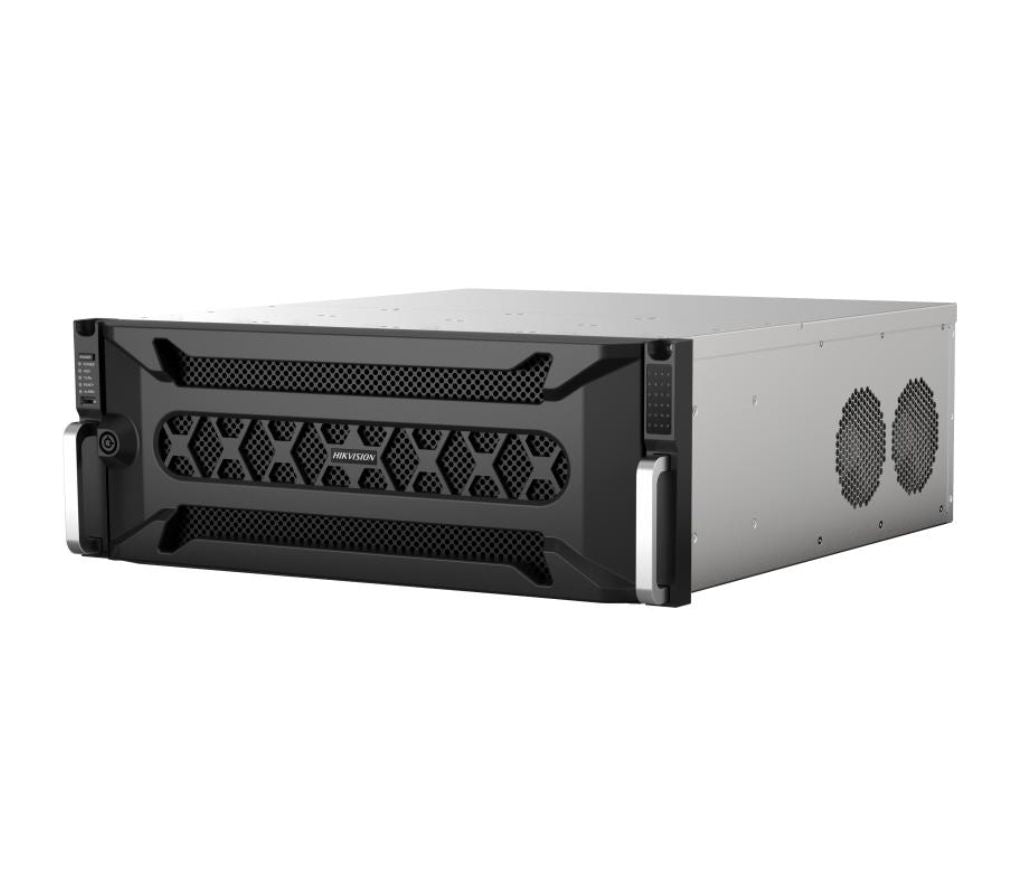

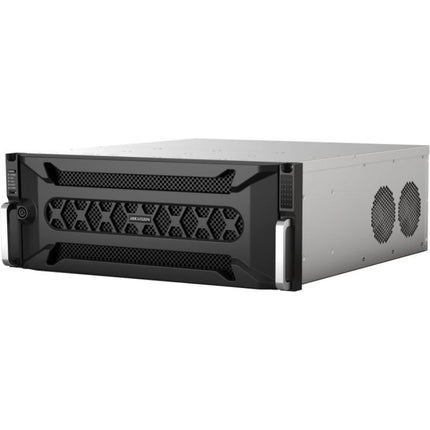

128ch 4U 4K Super NVR

• Up to 128ch IP cameras can be connected
• Up to 576 Mbps high incoming bandwidth ensures IP cameras can be connected
• 2 HDMI (different source) and 1 VGA interfaces
• 24 HDD can be used for continuous video recording
• Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
• Advanced streaming technology enables smooth live view in poor network conditions
• Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks






Specification

Video And Audio

Decoding

Network

RAID

Auxiliary Interface

General

• Video And Audio
• IP Video Input128ch
• Incoming Bandwidth576 Mbps
• Outgoing Bandwidth512 Mbps
• Incoming Bandwidth (RAID Mode)576 Mbps
• Outgoing Bandwidth (RAID Mode)512 Mbps
• TLS Outgoing Bandwidth128 Mbps, or 64 Mbps (when RAID is enabled)
• HDMI OutputTwo independent HDMI outputs of 4K resolution. Resolution: 4K (4096 ? 2160), 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1080p (1920 ? 1080)/60Hz, UXGA (1600 ? 1200)/60Hz, SXGA (1280 ? 1024)/60Hz, 720p (1280 ? 720)/60Hz, XGA (1024 ? 768)/60Hz
• VGA Output1-ch. Resolution: 1080p (1920 ? 1080) /60Hz, UXGA (1600 ? 1200) /60Hz, SXGA (1280 ? 1024) /60Hz, 720p (1280 ? 720) /60Hz, XGA (1024 ? 768) /60Hz
• LCD OutputOptional: One 7 inch LCD
• Audio Output1-ch. RCA (2.0 Vp-p, 1 K?)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?)
• Decoding
• Decoding FormatH.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision IP camera only)
• Recording Resolution

  32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF

  *: 32 MP and 24 MP is only available for channel 1 to 4 when ultra HD resolution mode is enabled.

• Synchronous PlaybackUp to 16chs
• Decoding Capability

  1-ch@32 MP (8160 ? 3616, 30 fps)/5-ch@8 MP(30 fps)/10-ch@4 MP(30 fps)/20-ch@1080p(30 fps)/40-ch@720p(30 fps)

  *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.

• Network
• Network ProtocolIPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
• Camera Access ProtocolHIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO
• Network Interface4, RJ45 10M/100M/1000M self-adaptive Ethernet interface
• RAID
• RAID TypeRAID0, RAID1, RAID5, RAID 6, and RAID10
• Auxiliary Interface
• SATA24 SATA interfaces supporting hot-plug
• CapacityUp to 10 TB for each HDD
• Serial InterfaceRS-232; RS-485; Keyboard
• USB InterfaceFront Panel: 2 ? USB 2.0; Rear Panel: 2 ? USB 3.0
• Alarm In/Out16/8
• ESATA1 ? eSATA interface
• Mini SASOptional: 2 ? mini SAS interface
• Extension BoardOptional: One extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module), eight RS-485 interfaces, and alarm interface of 32 alarm inputs and 16 alarm outputs.
• General
• Power Supply100 to 240 VAC, 50 to 60Hz
• Consumption? 140 W (without HDD)
• Working Temperature0 ?C to + 50 ?C (32 ?F to 122 ?F)
• Working Humidity10% to 90%
• Dimension (W ? D ? H)447 ? 528 ? 172mm (17.6 ? 20.8 ? 6.8 inch)
• Weight? 23 kg (50.7 lb)
