Product Description

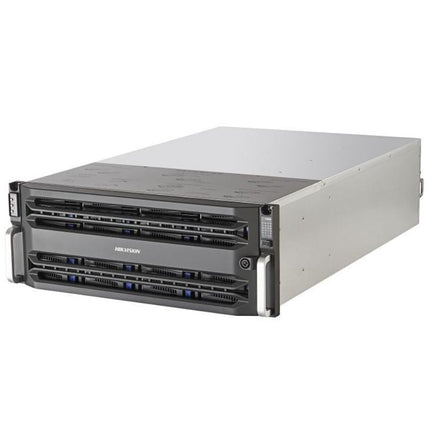

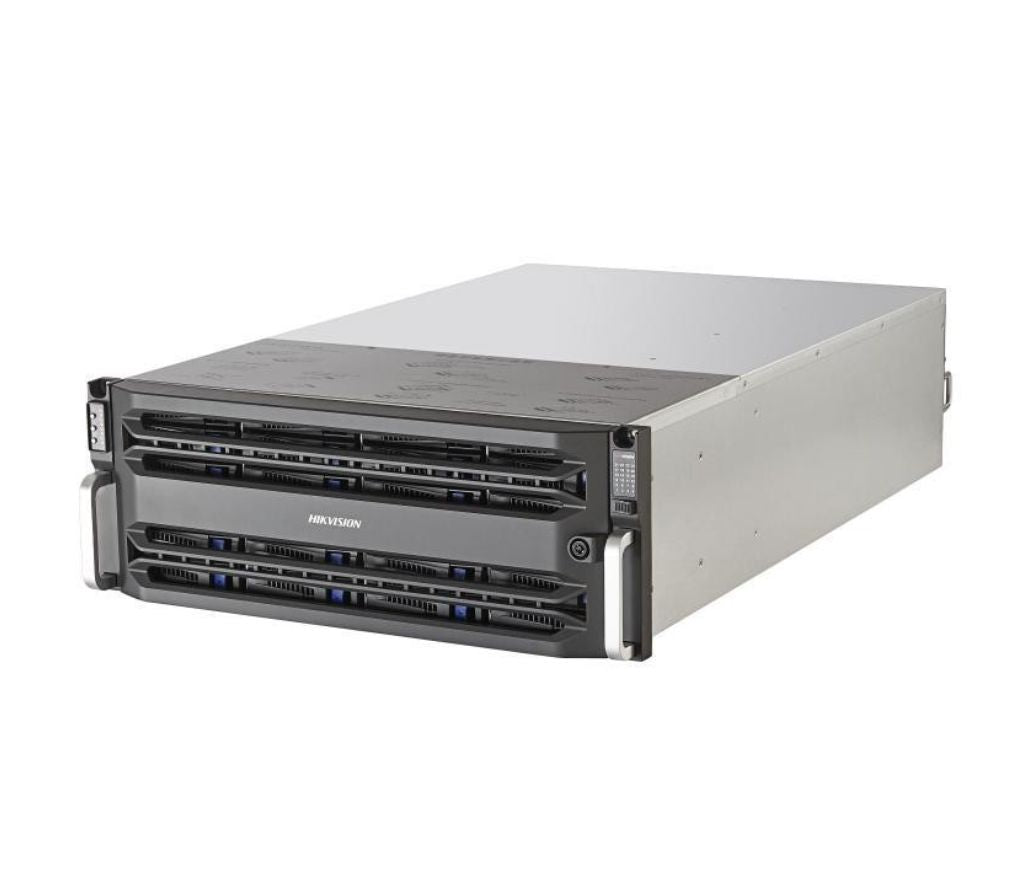

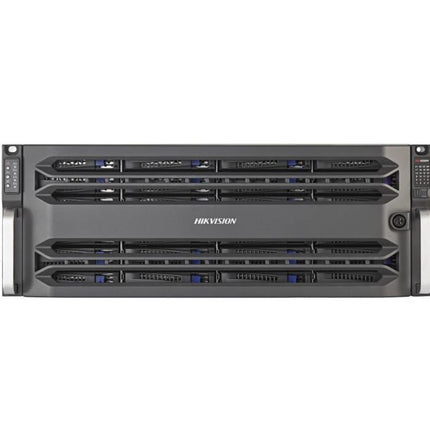

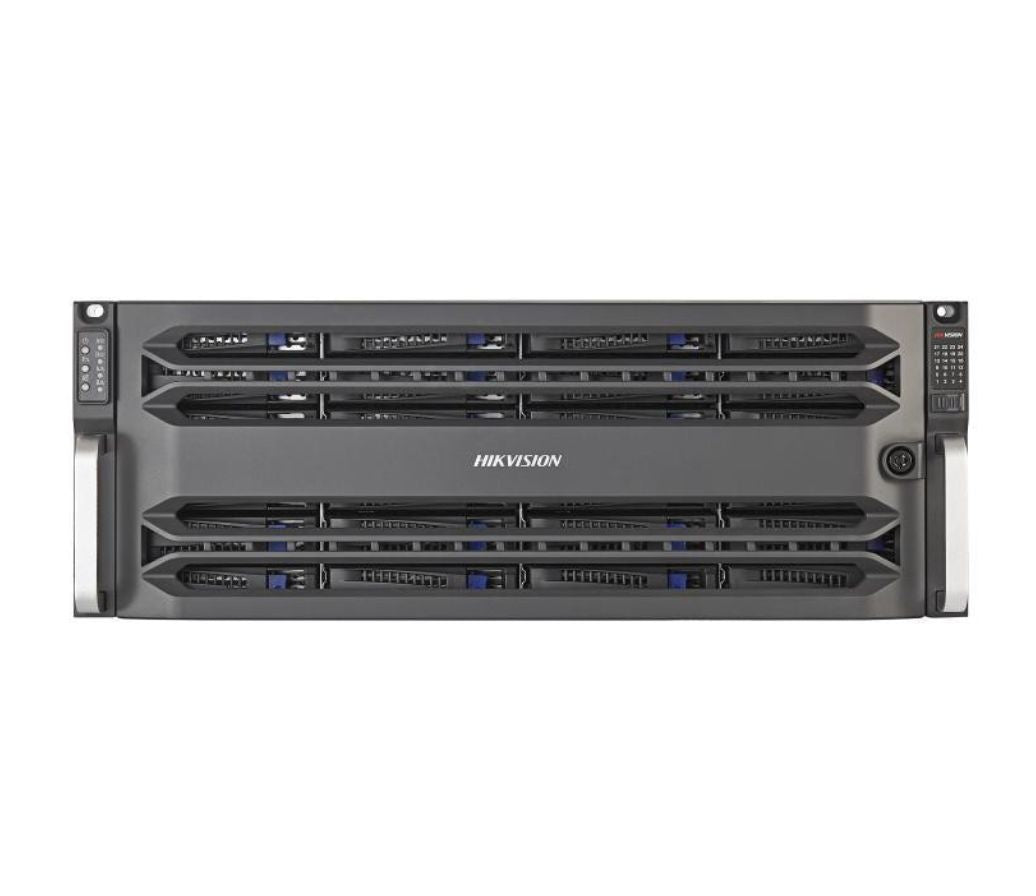

24-slot Cost-efficient Super Capacity Storage

• 24*20 TB IoT SMR enterprise HDD
• IoT fully sealed helium HDD technology
• Surveillance-specialized direct storage (Direct Streaming mode)
• Highly cost efficient, safe and reliable
• Energy saving and space saving
• Easy operation and maintenance
• SMR HDD providing 5-year warranty

Specification

• Network
• ProtocolRTSP;ONVIF;HKSDK
• Storage
• HDD Slot24
• Interface/CapacitySATA, Up to 20TB
• RAIDRAID5, RAID6, iRAID
• Performance
• Direct Streaming Mode: Video (2 Mbps) + Picture400-ch
• Hardware
• Processor64-bit multi-core processor
• Cache16 GB, extendable to 32 GB
• Storage Management
• Disk ManagementDisk detection, pre-alarm, and repair
• Logical Volume ManagementRecording volume management
• Recording Management
• Recording ModeContinuous recording, manual recording, and alarm recording
• Video ProtectionVideo lock, video loss alarm
• Searching ModeLog in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information
• Downloading ModeLog in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information
• Device Maintenance
• Management ModeGUI based on web, serial port CLI, platform
• Alarm ModeAudio, indicator, GUI
• General
• Power Supply100 to 240 VAC/47 to 63Hz, redundant power supply
• Consumption (With HDDs)? 369.8 W
• Environment TemperatureWorking: +5 ?C to +40 ?C (41 ?F to 104 ?F) Storing: -20 ?C to +70 ?C (-4 ?F to +158 ?F)
• Environment HumidityWorking: 20% to 80%RH (non-condensing/frozen) Storing: 5% to 90%RH (non-condensing/frozen)
• Dimension (W ? H ? D)445 ? 746 ?175 mm (17.5 ? 29.4 ? 6.9 inch)
• Weight (Without HDDs)?40kg (88.2 lb)
• External Interface
• USB2 ? USB 3.0, 2 ? USB 2.0
• Data Network Interface4, 1000 Mbps Ethernet interface
• MiniSAS Interface1
• COM1, RS-232
• Management Network Interface1, 1000 Mbps Ethernet interface
• HDD
• HDD ModelHikvision,HK7220AH,20T
