Product Description

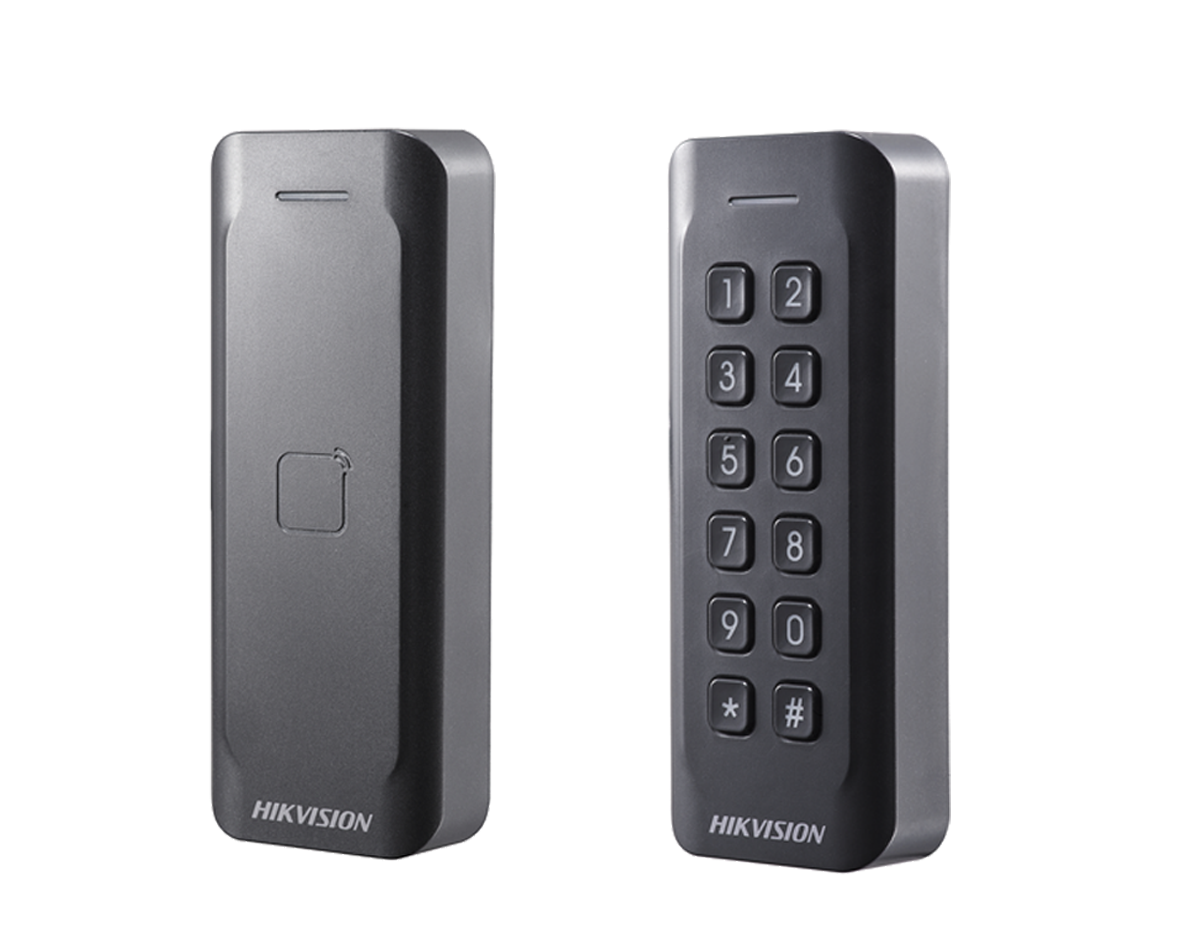

Value 1802 Card Reader (EM & MF & Keyboard)

  • Mifare1/ EM card reader
  • PC+ABS material shell
  • Built-in audible beeper
  • Wiegand interface
  • IP65


Specification

Authentication

General

  • Authentication
  • Card Reading Frequency13.56MHz/125KHz
  • General
  • Power Supply12 VDC
  • Working Temperature-20?C to +65?C (-4?F to 149?F)
  • Working Humidity10% to 90% (Non condensing)
  • Dimensions115.9mm?43.3mm?17mm (4.56"?1.70"?0.67")
  • InstallationWall mounting with screws; Do not support gang box
  • KeypadNo Keypad (DS-K1802E and DS-K1802M)Keypad with 12 Keys (0~9, *, #) (DS-K1802EK and DS-K1802MK)
  • BuzzerBeeper
