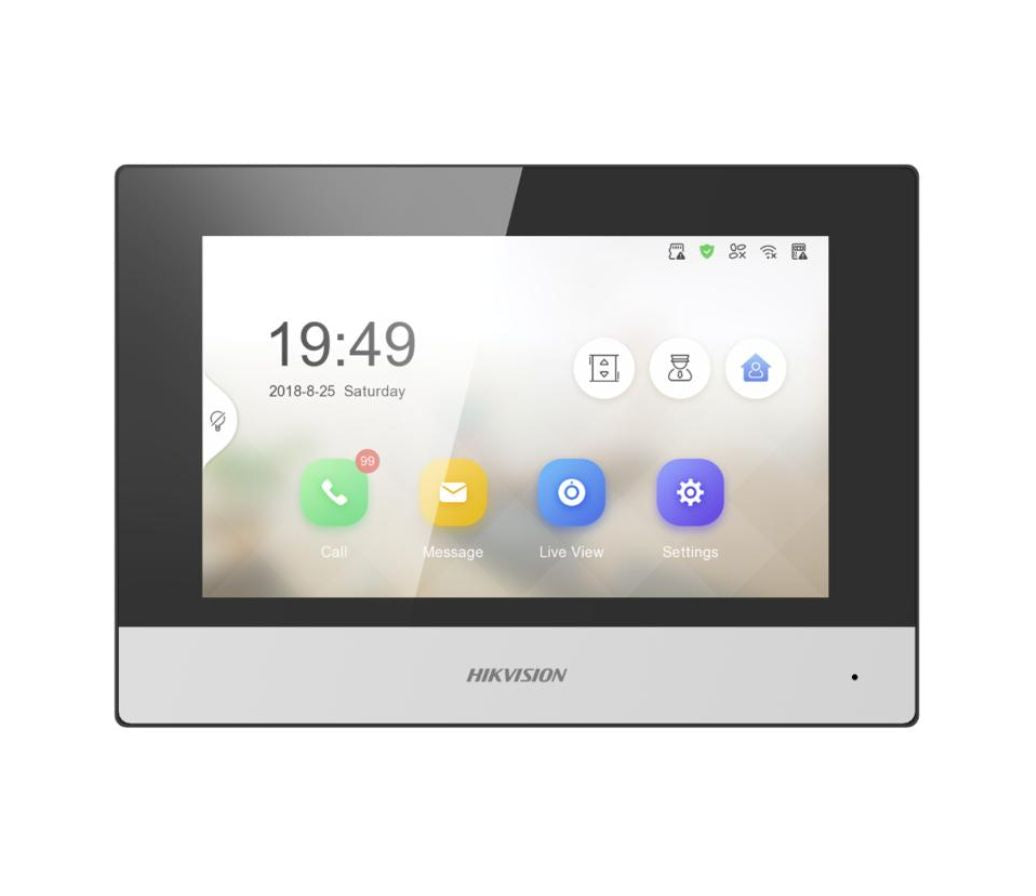

DS-KH6320-TE1 Hikvision IP PoE KH6 Series IP-Based Indoor Station 7-inch
DS-KH6320-TE1 Hikvision IP PoE KH6 Series IP-Based Indoor Station 7-inch
Out of stock
Description
Description
DS-KH6320-TE1 Hikvision IP PoE KH6 Series IP-Based Indoor Station 7-inch
This listing includes:
-  (1) ACCESSORIES: DS-KH6320-TE1
DS-KH6320-TE1  view data sheet
KH6 Series IP-Based Indoor Station
- 7-inch TFT touch screen with 1024 ? 600 resolution
- Convenient Hik-Connect APP Mobile Control
- Receive calls, open the door and live view remotely
- Easy to use without PC
- Easy wizard for quick set up
- Configure the whole system on one touch screen
- Live view of the door station and cameras in public areas
- Support voice messages when no response from the indoor station
- Receive alarms by linkage with a alarm system and notify the center to handle in time
- Elevator access control
Couldn't load pickup availability
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
KH6 Series IP-Based Indoor Station
- 7-inch TFT touch screen with 1024 ? 600 resolution
- Convenient Hik-Connect APP Mobile Control
- Receive calls, open the door and live view remotely
- Easy to use without PC
- Easy wizard for quick set up
- Configure the whole system on one touch screen
- Live view of the door station and cameras in public areas
- Support voice messages when no response from the indoor station
- Receive alarms by linkage with a alarm system and notify the center to handle in time
- Elevator access control
Specification
- System Parameters
- Operation SystemLinux
- ROM32 MB
- RAM128 MB
- ProcessorEmbeded high performance processor
- Display Parameters
- Screen Size7-inch
- Operation MethodCapacitive touch screen
- TypeColorful TFT
- Resolution1024 ? 600
- Video Parameters
- Lens/
- Resolution/
- FOVNot supported.
- Wide Dynamic Range (WDR)/
- Video Compression Standard/
- Focal Length/
- Audio Parameters
- Audio Input1 built-in omnidirectional microphone
- Audio Compression StandardG.711U/G.711A
- Audio Output1 built-in loudspeaker
- Audio Compression Bitrate64 Kbps
- Audio QualityNoise suppression and echo cancellation
- Volume AdjustmentAdjustable
- Capacity
- Message Capacity
TF card inserted: 200 captured pictures, 200 alarm records
Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records
- Notice Capacity200
- Linked Indoor Extensions Capacity16
- Linked Doorphone Capacity17
- Linked Network Camera Capacity16
- Network Parameters
- Network ProtocolTCP/IP, SIP, RTSP
- Wi-Fi/
- Bluetooth/
- 3G/4G/
- Zigbee/
- Device Interfaces
- Alarm Input8
- Network Interface1 RJ-45 10/100 Mbps self-adaptive
- TAMPER/
- RS-485/
- USB/
- TF CardSupport TF card, up to 128 G
- Alarm Output/
- Lock Control2 relays, Max. 30 VDC 0.3 A
- General
- Button/
- InstallationSurface mounting
- Indicator/
- Weight
Net weight: 350 g
Gross weight: 675 g
- Protective Level/
- Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
- Working Humidity10% to 90% (no-condensing)
- Dimension (W ? H ? D)200 mm ? 140 mm ? 15.1 mm (7.9" ? 5.5" ? 0.6")
- Battery/
- Application EnvironmentIndoor
- Power Consumption? 5 W
- LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek, Kazakh, Mongolian, Ukrainian
