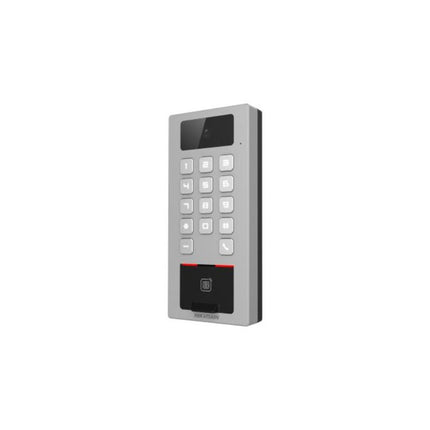

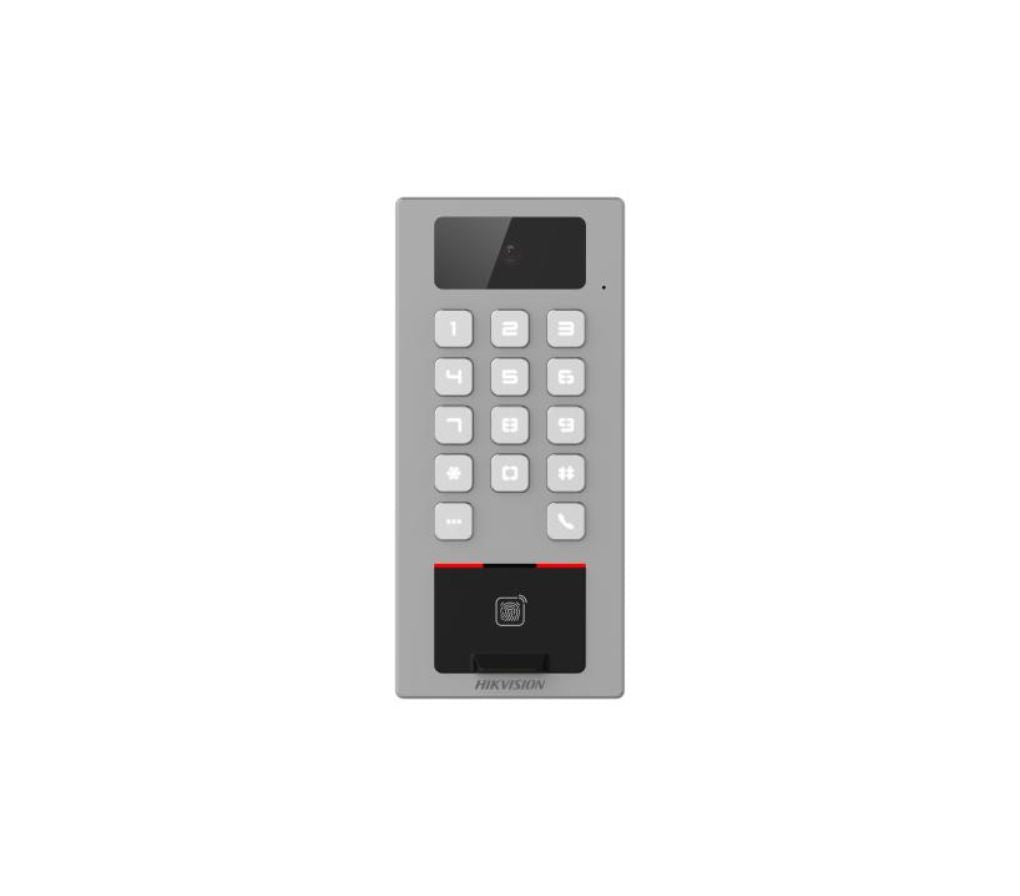

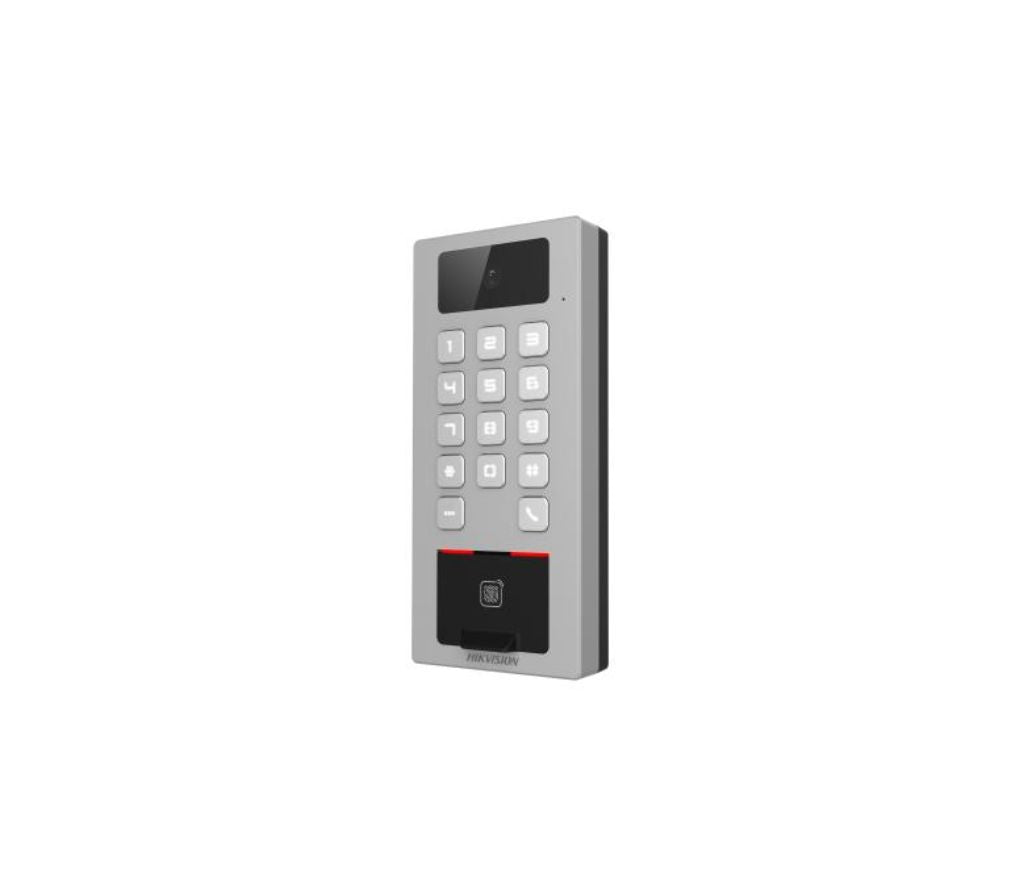

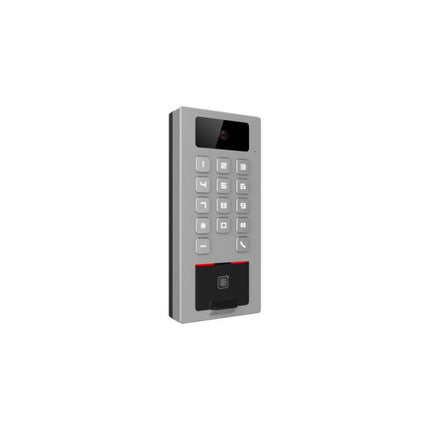

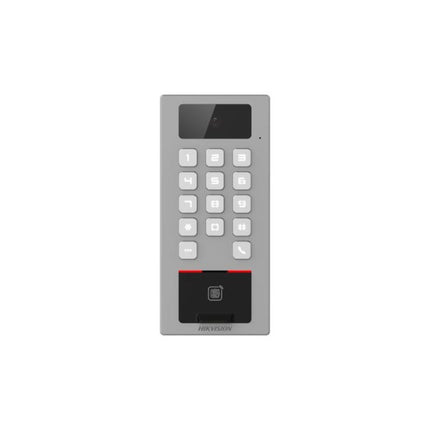

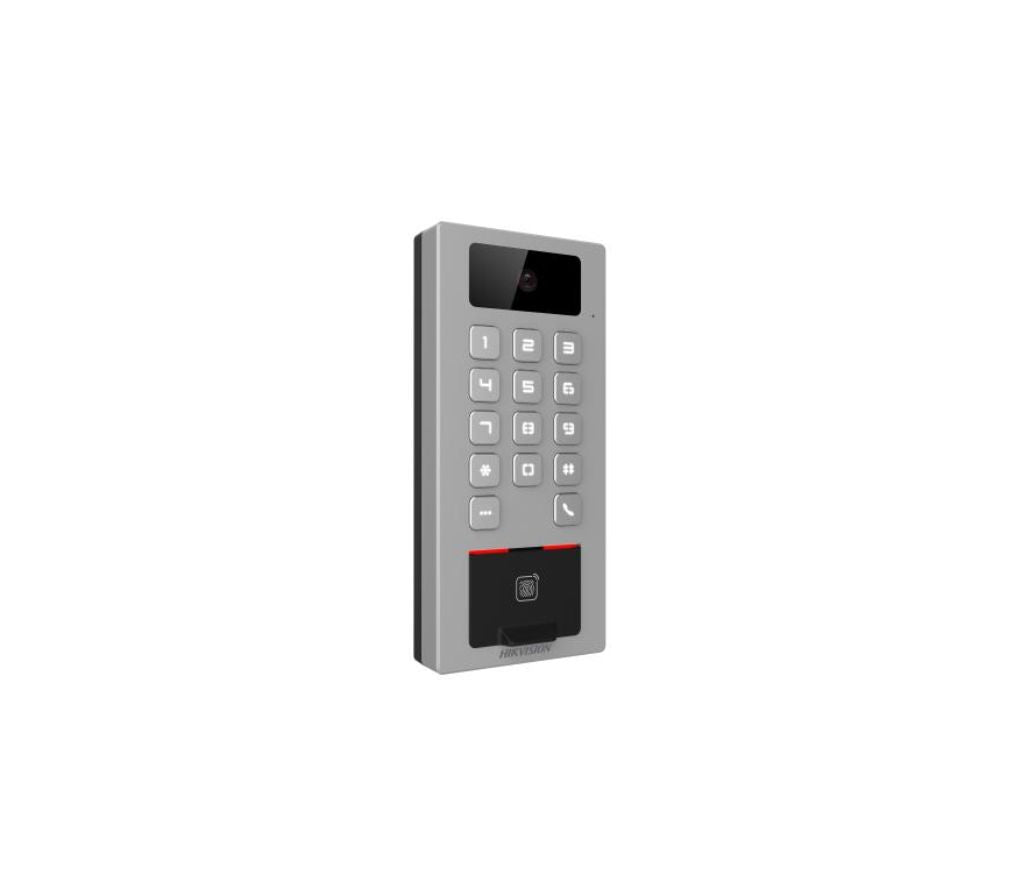

DS-KIT502DBFWX-C Hikvision Access Control Terminal Manage and intercom

Description

DS-KIT502DBFWX-C Hikvision Access Control Terminal > Manage and intercom


This listing includes:

  • ¬†(1) ACCESSORIES:¬†DS-KIT502DBFWX-C


DS-KIT502DBFWX-C  view data sheet

Access Control Terminal

  • Manage access control and intercom functions in one device
  • IP65 & IK09 protections, as well as increased stability with zinc alloy materials
  • Supports multiple authentication methods (card, fingerprint, PIN, etc.)
  • Remote control via the Hik-Connect mobile app
  • Connects to external access controller via Wiegand protocol
  • Video intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer,FreePBX, Asterisk, 3CX, ELASTIX, and PBX ware
  • RS-485 communication for connecting external card reader and calling elevator
  • Supports AP mode
  • Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App
  • Supports up to 256 GB SD card memory
  • Supports PIN settings under platform mode and local mode
  • Setting the priority of wired network and wireless network is available









DS-KIT502DBFWX-C Hikvision Access Control Terminal Manage and intercom

Product form

Out of stock, 10 Business Days  Mid weeks
Monday to Friday we offer same day handling if the product is on stock and exceptions on holidays.

Weekends
We offer no deliveries in the weekends.

International
Depending on where you’re located, we offer next day delivery. Check status on this link

$357.21 $336.99

      • Guaranteed secure & safe checkout.

        shop pay
      • Free shipping on all orders
      • No hassle returns, 30 days return

      Description

      DS-KIT502DBFWX-C Hikvision Access Control Terminal > Manage and intercom


      This listing includes:

      • ¬†(1) ACCESSORIES:¬†DS-KIT502DBFWX-C


      DS-KIT502DBFWX-C  view data sheet

      Access Control Terminal

      • Manage access control and intercom functions in one device
      • IP65 & IK09 protections, as well as increased stability with zinc alloy materials
      • Supports multiple authentication methods (card, fingerprint, PIN, etc.)
      • Remote control via the Hik-Connect mobile app
      • Connects to external access controller via Wiegand protocol
      • Video intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer,FreePBX, Asterisk, 3CX, ELASTIX, and PBX ware
      • RS-485 communication for connecting external card reader and calling elevator
      • Supports AP mode
      • Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App
      • Supports up to 256 GB SD card memory
      • Supports PIN settings under platform mode and local mode
      • Setting the priority of wired network and wireless network is available









      Data sheet PDF

      Product Description

      Access Control Terminal

      • Manage access control and intercom functions in one device
      • IP65 & IK09 protections, as well as increased stability with zinc alloy materials
      • Supports multiple authentication methods (card, fingerprint, PIN, etc.)
      • Remote control via the Hik-Connect mobile app
      • Connects to external access controller via Wiegand protocol
      • Video intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer,FreePBX, Asterisk, 3CX, ELASTIX, and PBX ware
      • RS-485 communication for connecting external card reader and calling elevator
      • Supports AP mode
      • Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App
      • Supports up to 256 GB SD card memory
      • Supports PIN settings under platform mode and local mode
      • Setting the priority of wired network and wireless network is available








          •

        Specification

        System

          Video

            Network

              Interface

                Capacity

                  Authentication

                    General

                      Function

                        • System
                        • Operating SystemLinux
                        • Video
                        • Lens1
                        • Video Compression StandardH.264 and H.265
                        • Resolution2 MP
                        • FOVHFOV = 110?; VFOV = 81?; DFOV = 122?
                        • Video StandardPAL (Default) and NTSC
                        • Network
                        • Wired Network10 M/100 M self-adaptive
                        • Wi-FiSupport
                        • Interface
                        • Network Interface1
                        • Lock Control1
                        • Exit Button1
                        • Door Contact Input1
                        • Alarm Input1
                        • Alarm Output1
                        • TAMPER1
                        • RS-4851
                        • Wiegand1 (output)
                        • SD Card Slot1
                        • Capacity
                        • Fingerprint Capacity10,000
                        • Card Capacity100,000
                        • Event Capacity300,000
                        • Authentication
                        • Fingerprint ModuleCapacitive fingerprint recognition
                        • Card TypeM1 card;DESfire card
                        • Card Reading Distance0 ~ 3 cm
                        • General
                        • Power Supply1 A (12 VDC to 24 VDC)
                        • Power Consumption?12 W
                        • Working Temperature-40 ?C to +70 ?C (-40 ?F to +158 ?F)
                        • Protective LevelIK09, IP65
                        • LanguageArabic, English, French, Indonesian, Italian, Portuguese (Brazil), Russian, Spanish (Europe), Thai, Ukrainian, Vietnamese, German, Polish, Hungarian, Czech, Romanian, Bulgarian, Croatian, Serbian, Greek, Slovak, Portuguese, Dutch, and Turkish
                        • Function
                        • Two-Way AudioSupport
                        • Video IntercomSupport
                        • Hik-ConnectSupport
