Product Description

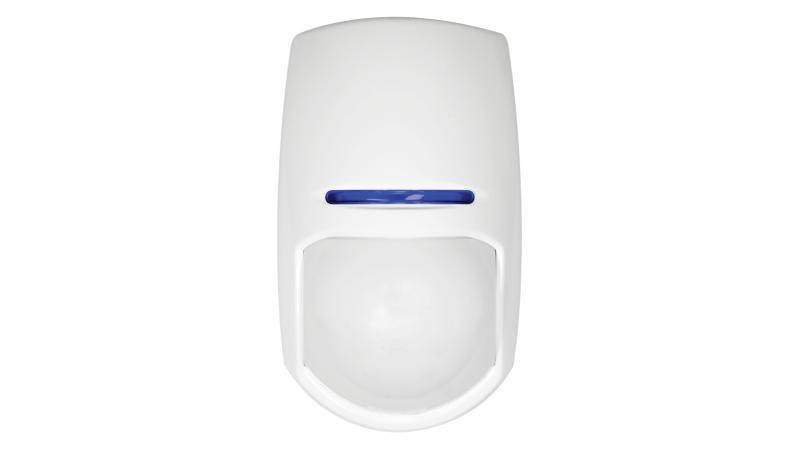

Wireless internal 15m curtain PIR detector

  • Detection range: 15 m x 15 m, 20 degrees
  • RF 433MHz
  • Offers reliable protection utilizing two-way wireless technology
  • PIR motion detection
  • Tamper alarm, intruder alarm
  • Communicates up to 800 m (in open areas)




Specification

Detection performance

Software features

Hardware features

RF transmission

Electrical characteristics

General

  • Detection performance
  • Detection Range15m
  • Detection Angle10?
  • Velocity range0.3m/s ~ 3.0m/s
  • Software features
  • Tamper-ProofSupport
  • Hardware features
  • IndicatorTri-color LED Indicator
  • RF transmission
  • RF Frequency433MHz
  • RF Range800m (in open area)
  • Electrical characteristics
  • Battery type1?CR123A, 3.0V
  • Battery life span2 years
  • General
  • Operation temperature-10? ~ +40?
  • Dimension(WxHxD)117mm*69mm*50mm
  • Weight125g (without bracket)
  • Application scenarioIndoor
  • ColorWhite
  • Installation height2.4 ~ 4m
  • Installation methodWall mounted or Ceiling mounted
  • BracketIncluding 1 x Ceiling mounting bracket, 1 x Wall mounting bracket
