Technical Specifications

Data sheet PDF

Product Description

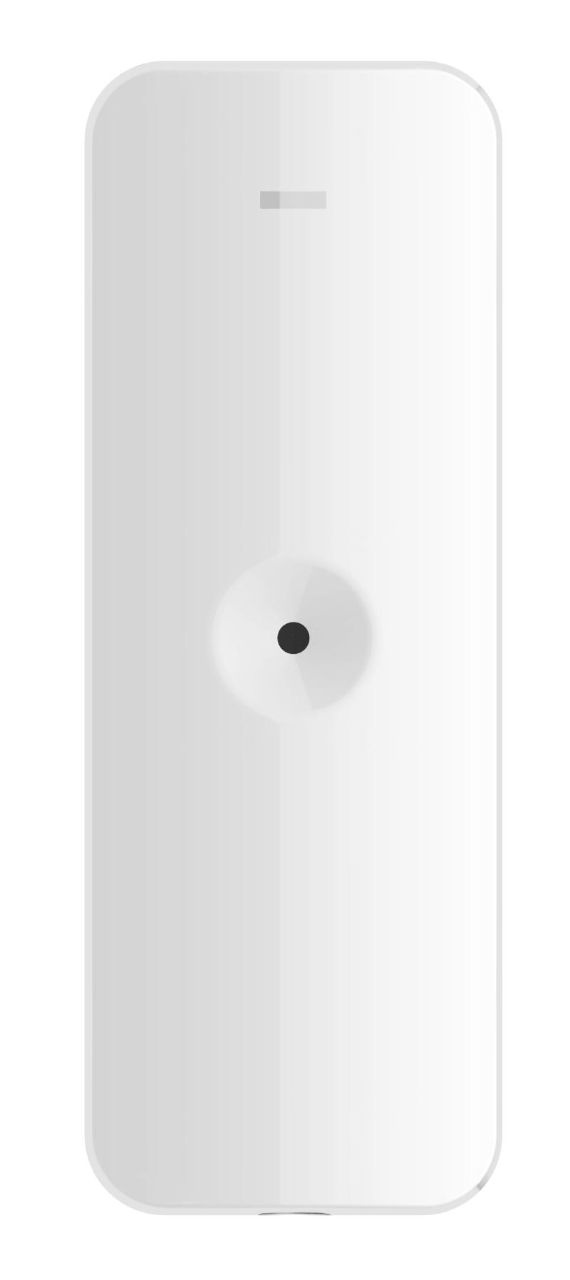

Wireless Glass Break Detector

  • High quality Omni-directional microphone sensor
  • Fully remote configurable through App
  • Multiple enrollment method and easy installation design
  • Easy replaceable battery with PCB protected
  • Frequency hopping against jamming for reliable transmission


Specification

Detection Performance

Feature

Interface

Transmission

Electrical Characteristics

General

  • Detection Performance
  • Detection MethodAcoustic Sensor
  • Detection Range8m
  • Detection Angle120?
  • Sensitivity2m;4m;6m;8m
  • Glass TypeFloat;Plate;Tampered;Wired;Laminated Leaded;Double Glazing
  • Glass Thickness2.4mm to 6.4mm
  • Glass Size0.3m x 0.3m to 3m x 3m
  • Feature
  • Digital ProcessingSupport
  • Tamper ProtectionFront;Rear
  • Environment Temperature IndicatorSupport
  • Signal Strength IndicatorSupport
  • Interface
  • Alarm InputNormally Closed;Normally Open;Impulse Count
  • Power SwitchPower Up Enrolling
  • LED IndicatorBlue(Alarm)
  • Transmission
  • Transmission TechnologyTri-X Wireless
  • Transmission MethodTwo-Way RF Wireless
  • Transmission Frequency433MHz
  • Transmission SecurityAES-128 Encryption
  • Transmission Range(Free Space)1Km
  • Frequency HoppingSupport
  • Enrolling MethodPower up;Remote ID;QR Code
  • Electrical Characteristics
  • Power SupplyBattery Powered
  • Battery TypeCR123A ? 2
  • Typical Voltage3V
  • Standard Battery LifeUp to 5 years (standby time)
  • General
  • Operation Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
  • Storage Temperature-20 ?C to 60 ?C (-4 ?F to 140 ?F)
  • Operation Humidity10% to 90%
  • Dimension(WxHxD)38.8mm ? 107.0mm ? 24.5mm
  • Weight83g
  • Mounting MethodWall;Ceiling
  • Application ScenarioIndoor
