DS-PDMCS-EG2-WB
DS-PDMCS-EG2-WB
Available in stock (46)
Description
Description

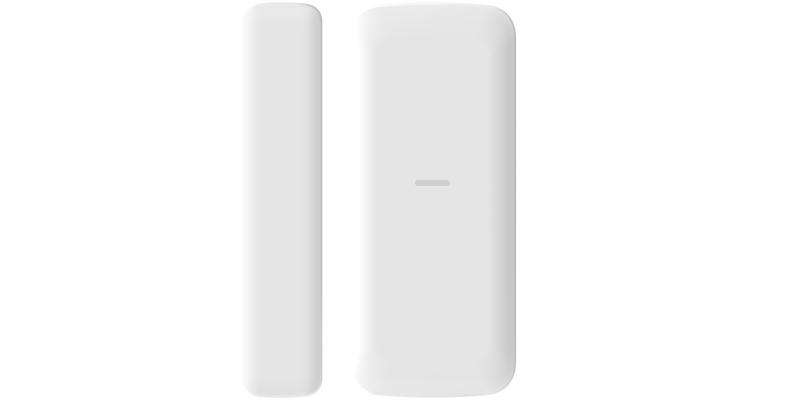

Wireless Slim Magnet Detector
- Slim design for an unobtrusive (unnoticeable) installation
- Fully remote configurable through App
- Multiple enrollment methods and easy installation design
- Frequency hopping against jamming for reliable transmission
Couldn't load pickup availability
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
Wireless Slim Magnet Detector
- Slim design for an unobtrusive (unnoticeable) installation
- Fully remote configurable through App
- Multiple enrollment methods and easy installation design
- Frequency hopping against jamming for reliable transmission
Specification
Detection Performance
Feature
Interface
Transmission
Electrical Characteristics
General
- Detection Performance
- Detection MethodOpening Contact
- Detection Gap52mm Max
- Feature
- Digital ProcessingSupport
- Tamper ProtectionFront;Rear
- Environment Temperature IndicatorSupport
- Signal Strength IndicatorSupport
- Interface
- Power SwitchPower Up Enrolling
- LED IndicatorBlue (Alarm)
- Transmission
- Transmission TechnologyTri-X Wireless
- Transmission MethodTwo-Way RF Wireless
- Transmission Frequency433MHz
- Transmission SecurityAES-128 Encryption
- Transmission Range(Free Space)1Km
- Frequency HoppingSupport
- Enrolling MethodPower up;Remote ID;QR Code
- Electrical Characteristics
- Standard Battery Life
Up to 3 years (standby time)
- Power SupplyBattery Powered
- Battery TypeCR2450 x 1
- Typical Voltage3V
- General
- Operation Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
- Storage Temperature-20 ?C to 60 ?C (-4 ?F to 140 ?F)
- Operation Humidity10% to 90%
- Dimension(WxHxD)
29mm ? 69mm ? 10mm
14mm ? 69mm ? 10mm
- Weight38g
- Mounting MethodWall-mount(The device only supports wooden structure installation and cannot be installed on metal surface)
- Application ScenarioIndoor
Up to 3 years (standby time)
29mm ? 69mm ? 10mm
14mm ? 69mm ? 10mm
