Technical Specifications

Data sheet PDF

Product Description

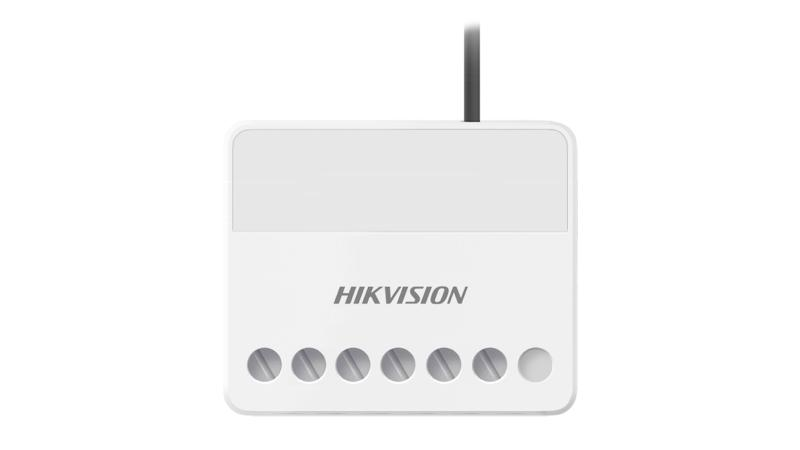

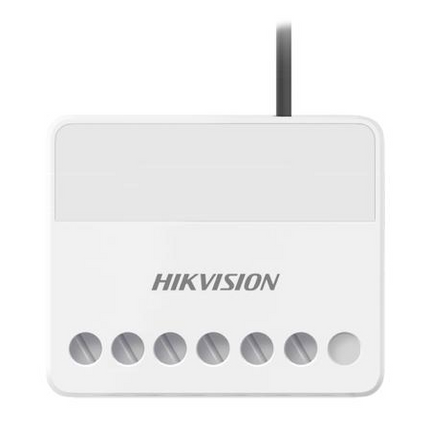

Relay module

  • 433 MHz two-way wireless communication
  • AES-128 encryption
  • LED display, show status of device and replay on/off display
  • Small case design, which can be put into hiding places easily
  • Automation operating, one button turn on/off from APP/Keyfob/Keypad
  • Setting scenarios by different events
  • An alarm input for tamper, NO, NC



Specification

Software features

Hardware features

Electrical characteristics

Wireless transmission

Display

General

Device management

  • Software features
  • Scenario settingBy alarm, by operation, by fault, by schedule, by manual
  • Learning button1, for register
  • Hardware features
  • Serial port1, for debug
  • Electrical characteristics
  • Power supplyDC 7V to 24V
  • Operation humidity10% to 90%
  • Operation temperature-10?C to 55?C
  • Wireless transmission
  • RF frequency433 MHz
  • RF methodTwo-way communication
  • RF modulation2GFSK
  • RF distance800 m
  • Wireless securityAES-128
  • Display
  • LEDs status3, register/signal (green/red), power (green), relay status (blue)
  • General
  • Installation methodWall-Mounting
  • Dimension(WxHxD)38 mm ? 25 mm ? 18 mm
  • Shell materialPlastic
  • ColorWhite
  • Weight28.5 g
  • Device management
  • Alarm input1 for tamper, NO/NC
  • Relay output1, NO/NC (0 to 36V DC, Max 5A)
