Product Description

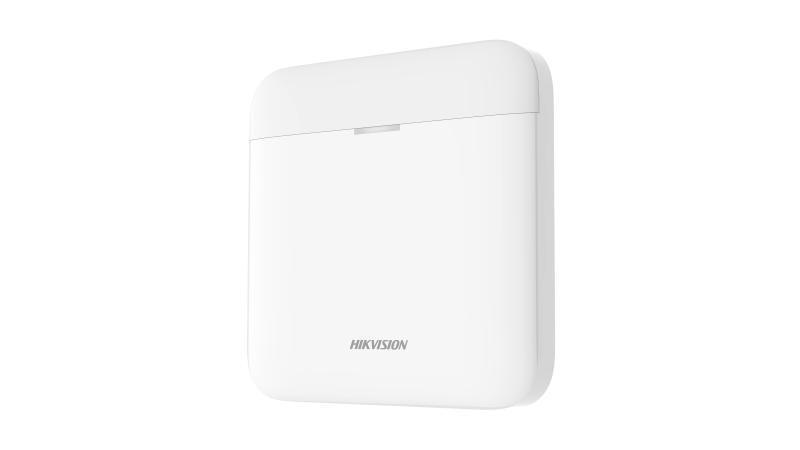

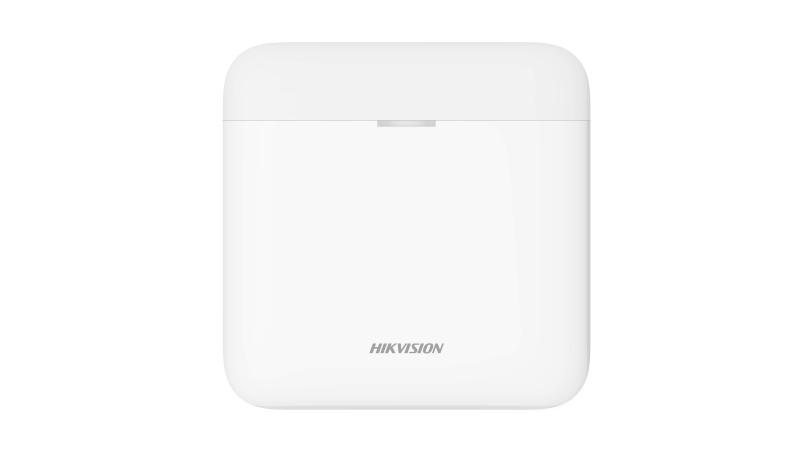

Wireless Repeater

• 433MHz two-way wireless communication
• Two-way communication, stable and secure
• LED display, show the differernt feedbacks with easy understanding
• Up to 35 hrs battery backup after mains lost, no worry about communication
• Finding and connecting up to 8 PIRCAM or smoke detectors automatically, smart auto-pairing
• Easy installation with new designed structure

Specification

Software features

Hardware features

Electrical characteristics

Wireless transmission

Display

General

Device management

• Software features
• Auto paringSupported

• Hardware features
• Serial port2, for debug
• Tamper-Proof1, front and back
• Power switch1

• Electrical characteristics
• Battery typeBuilt in Battery Li
• Power supply100 VAC to 240 VAC
• Operation humidity10? to 90?
• Operation temperature?10?C to +55?C (The battery can not be charged at temperature lower than 10?C, please make sure the adapter is connected)
• Battery life spanUp to 35 hours at normal temperature(The battery working time can be significantly reduced at low temperatures)

• Wireless transmission
• RF frequency433 MHz
• RF methodTwo-way communication
• RF modulation2GFSK
• RF distance800 m (open area)
• Wireless securityAES-128

• Display
• LEDs status3, Register/Signal (Green/Red), Power (Green), Fault (Amber)

• General
• Installation methodWall mounting
• Dimension(WxHxD)150 mm ? 150 mm ? 25 mm
• Shell materialPlastic
• ColorWhite
• Weight372 g

• Device management
• PIRCAM paringSupported
• KeypadLCD keypad not support
