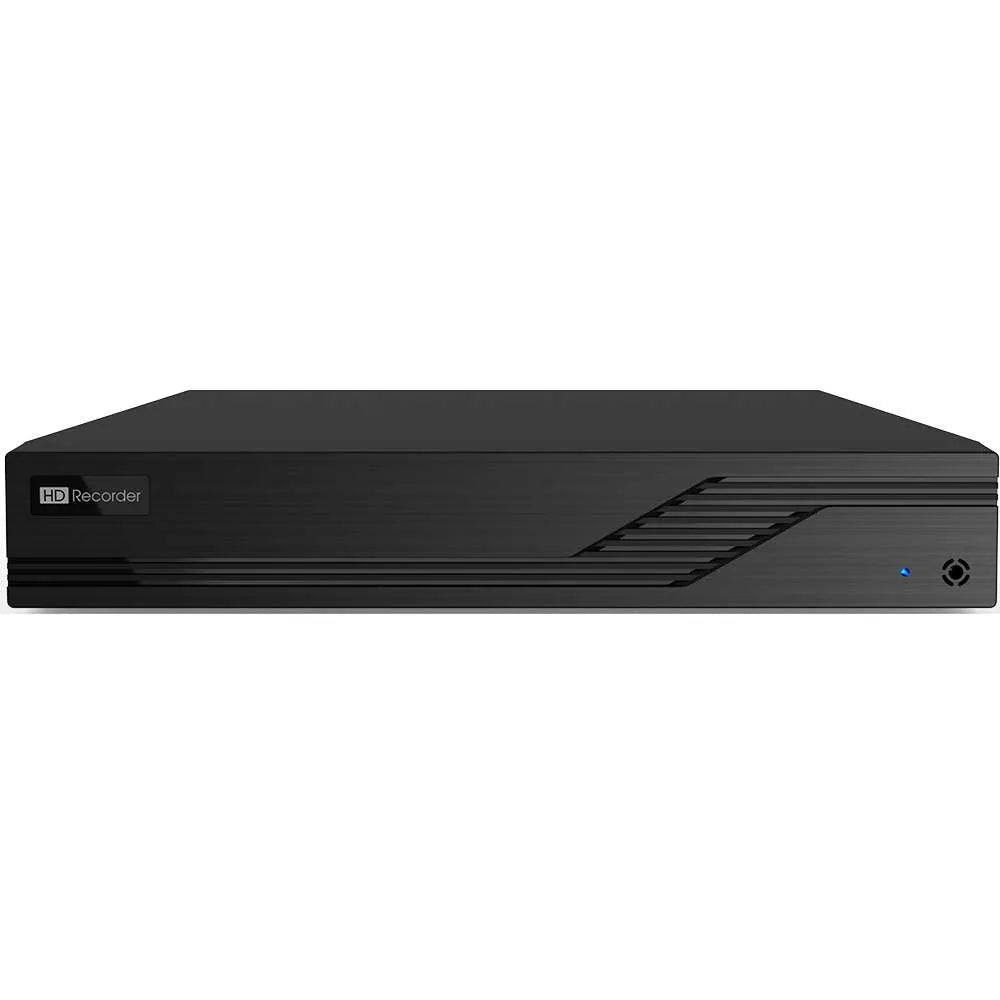

ED8008H5-BN2 Tvt 8ch CCTV Recorder w/ HDD || Titanium DVR 5MP Lite

Data sheet PDF

Product Description

ED8008H5-BN2 || Titanium, DVR, 5MP Lite, 8CH, 1X SATA PORT

Max Recording Resolution: 5MP Lite
? Channels: 8CH
? LAN Ports: 1
? SATA: 1X SATA PORT
? Video Outputs: HDMI / VGA
? NDAA Compliant: Yes
? Hardware Features: Audio in, Audio out, BNC Video Out

Product Description

8 CH DVR supports TVI / AHD/CVI 5MP/4MP/1080P/720P/WD1 video input 4 /
8CH DVR supports 2 / 4 CH 5MP / 4MP / 3MP /1080P / 960P /720P IP video input by default
4CH DVR: 4CH analog video input can be switched to 4CH IP video input
8CH DVR: 8CH analog video input can be switched to 8CH IP video input
Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
Intuitive and user-friendly Graphics User Interface ( GUI , window style operation by mouse
Multi-mode recording: manual / timed / sensor / motion / AI recording
Playback : 4 / 8 CH simultaneously playback
Search: time slice, time, event, tag search
Express and flexible backup via USB, network and so on
Pentaplex: preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE network protocol
Remote control via Web or CMS : preview, playback, backup, PTZ and configuration
Authorization management, log review and device status review
Support 1080P output, true high resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
Support NAT function and QRCode scanning by mobile phones
Powerful mobile surveillance by smart phones with iOS and Andriod OS
Dimensions 6 ? 6 ? 6 in

SPECIFICATIONS

255? 222? 42( W ? D ? H )
SATA ? 1, up to 10TB
4CH (up to 12CH)

HDMI ? 1 : 1920 ? 1080 / 1280 ? 1024 / 1024 ? 768
VGA ? 1 : 1920 ? 1080 / 1280 ? 1024 / 1024 ? 768
BNC ? 1 : CVBS ( used as the main or spot output )

RS 485 ? 1 (half-duplex)

?8W( without HDD)
Up to 5MP@30fps

DC12V / 2A
32Kbps ~ 4Mbps

USB 2.0 ? 2 ( in the rear panel )
ED8008H5-BN2

TVI/AHD/CVI:5MP/4MP/1080P/720P/WD1

5MP Lite/4MP Lite/1080P/1080P Lite/720P/WD1
Analog Channel: 5MP Lite :10fps; 4MP Lite/1080P : 12fps (PAL)/15fps (NTSC);
1080P Lite/720P/WD1 : 25fps (PAL)/30fps (NTSC)

IP Channel: 25fps (PAL)/30fps (NTSC)

32Mbps (max.60Mbps)
60Mbps
12CH

Playback

Network

-10~50?C, 10%~90% (humidity)
RCA ? 1
RCA ? 1 (linear, 600?)

No
No
Manual, timer, motion, smart event

Model

Audio

Working Environment
System

Video

OS
Analog Video Input

IP Video Input
Total Input
Output

Input
Output
Two-way audio
Resolution
Frame Rate
Bit Rate
Mode
Playback
Search
Smart Search
Function
Mode
Input
Output

Interface
Protocol
Incoming Bandwidth

OS
HDD
Local Backup
Network Backup
RS 485
USB
Remote Controller
Power Supply
Consumption
Dimensions(mm)

Embedded Linux

Take up channel one audio input

Time slice / time / event / tag search
Highlight colors to display the camera record in a certain period of time, different colors refer to different record
events
Play, pause, FF, FB, digital zoom, etc.
Manual, motion, exception, smart event

RJ 45 100Mbps ? 1
TCP / IP, IPv4, IPv6, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, 802.1x, FTP, RTP, RTSP, RTCP, NTP, SMTP, UDP,
Websocket, SNMP, IGMP

iOS, Andriod
U disk, USB mobile HDD
Yes

Optional

Record

Alarm

AI Function

Mobile Device
Storage
Backup
Port

Others

Compression
Multi-screen Display

Compression

H.264/H.265/H.265+

G.711(U/A)
BNC ? 8
BNC interface (1.0Vp-p; 75?)

8CH

Outgoing Bandwidth
Client Connection Max. 5 users access
1/4/6/8/9/13/16

Certificate
Environmental Protection
CE, FCC
Comply with Directive EU RoHS, WEEE, REACH
