Product Description

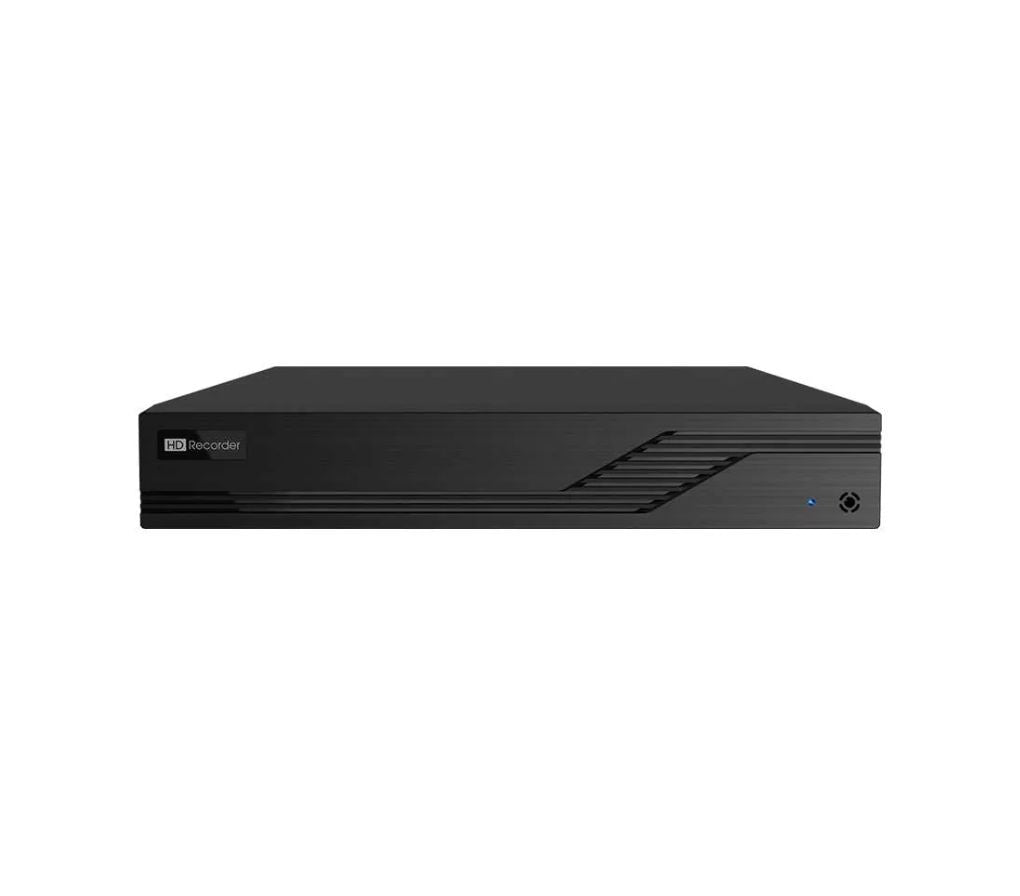

Titanium 16CH Hybrid 4 in 1 DVR ED8016H5-BN

? Max Recording Resolution: 5MP Lite
? Channels: 16CH
? LAN Ports: 1
? SATA: 1X SATA PORT
? Video Outputs: HDMI / VGA
? NDAA Compliant: Yes
? Hardware Features: Audio in, Audio out, BNC Video Out

Titanium 16CH Hybrid DVR Features

• 16 CH TVI / AHD/CVI 5MP/4MP/1080P video input
• Digital Video Recorder with 16chs are supported. IP video input 2 / 4 / 8 CH 5MP / 4MP / 3MP /1080P
• To acquire high-quality video at a considerably lower bit rate, use the standard H.265 high profile compression format.
• Window style operation by mouse, with an intuitive and user-friendly Graphics User Interface (GUI).
• Manual, timed, motion, and AI recording modes are all available. 16 CH are being played back at the same time.
• Time slice, time, event, and tag searches are all available.
• Backups can be done quickly and easily by USB, network, and other methods.
• Preview, record, playback, backup, and remote access are all included in the Pentaplex.
• DHCP, DDNS, and PPPoE are examples of network protocols.
• Preview, playback, backup, PTZ, and configuration may all be done remotely via the web or CMS.
• Dual stream technology for local storage with high definition, remote network transmission, and remote surveillance with the mobile device
• Authorization management, log review, and device status review
• 1080P output is supported, allowing for a truly high-resolution display.
• Up to 255 presets and 8 voyages are supported for PTZ presets and auto cruises.
• Mobile phones should be able to read QR codes and use the NAT function.
• Smartphones running iOS and Android OS provide powerful mobile surveillance.

This Titanium 16CH Hybrid Digital Video Recorder (DVR) works with Coaxial/ Analog Security Camera
