Product Description

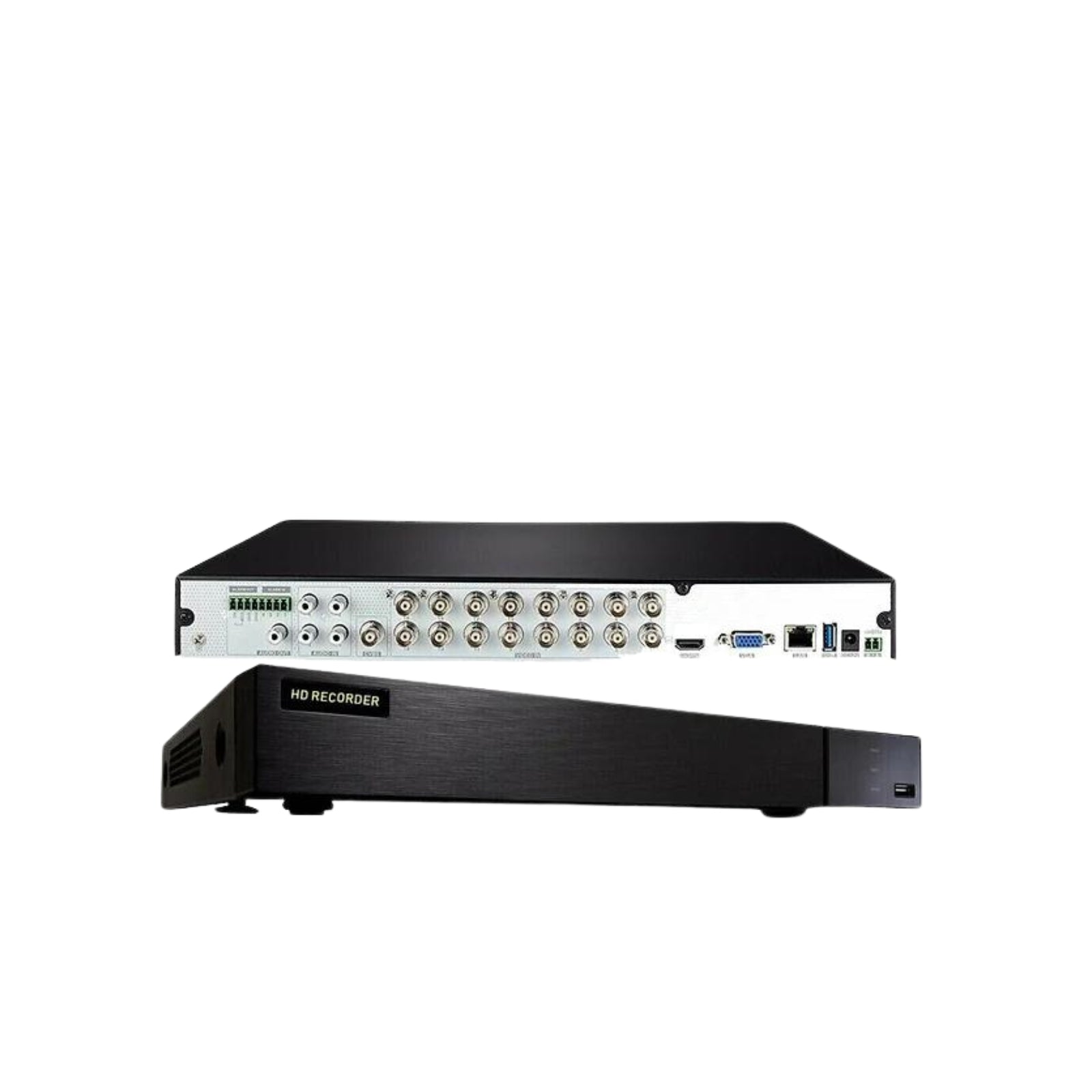

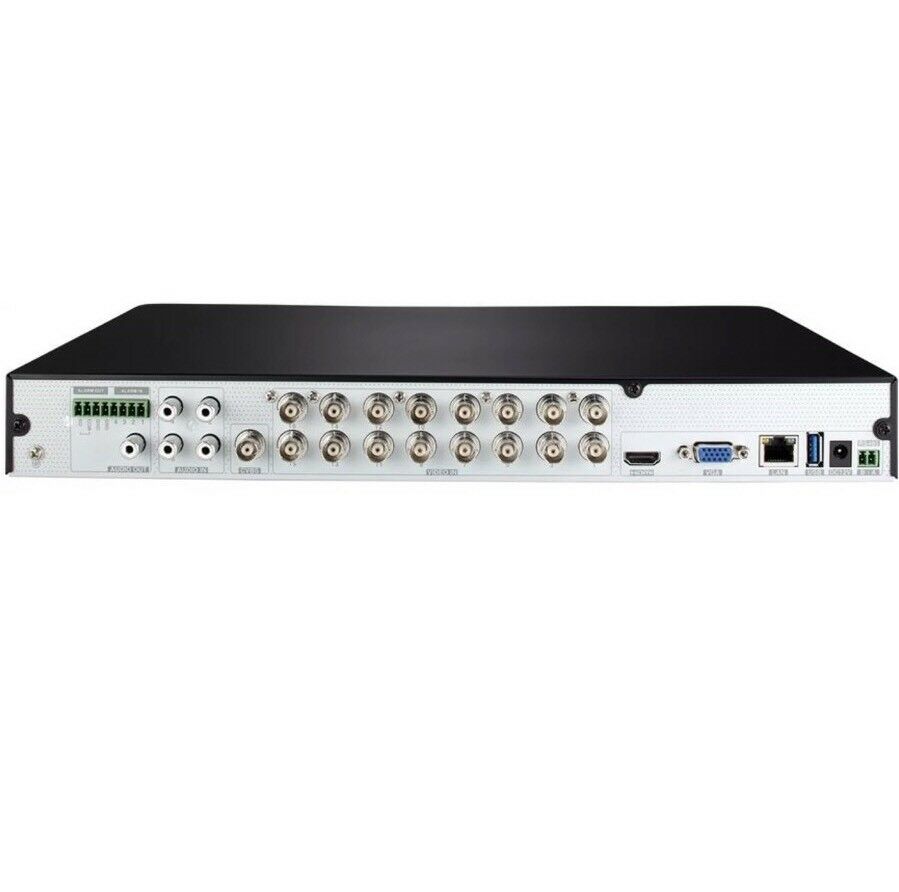

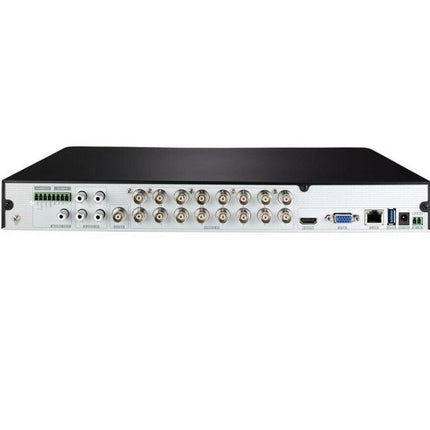

ED8216H5-F || Titanium, DVR, 8MP Lite, 16CH, 2X SATA PORTS

? Max Recording Resolution: 8MP Lite
? Channels: 16CH
? LAN Ports: 1
? SATA: 2X SATA PORTS
? Video Outputs: HDMI / VGA
? NDAA Compliant: No
? Hardware Features: Alarm in, Alarm out, Audio in, Audio out, BNC Video Out

Product Description

Features

16 CH TVI / AHD video input, support 8MP / 5MP/ 4MP / 3MP / 1080P / 720P / WD1
16 CH CVI video input, support 8MP/5MP/4MP/3MP/1080P/ 720P/ WD1
16 CH DVRs support 8 CH IPC 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P
Adopt standard H.265 high profile compression format to get high-quality video at a much lower bit rate
Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
Multi-mode recording: manual / timer / motion
Playback: 16CH simultaneous playback
Search: time slice, time, event ( manual, motion ), tag search
Express and flexible backup via USB, network and so on
Pentaplex: preview, record, playback, backup, and remote access
DHCP, DDNS, PP PoE network protocol, IE browse and CMS supported
Remote control via IE or CMS: preview, playback, backup, PTZ and configuration
Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with the mobile device
Multi-user online simultaneously
Authorization management, log review and device status review
HDMI 4K output, true high-resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
Support NAT function and QR Code scanning by mobile phone and PAD

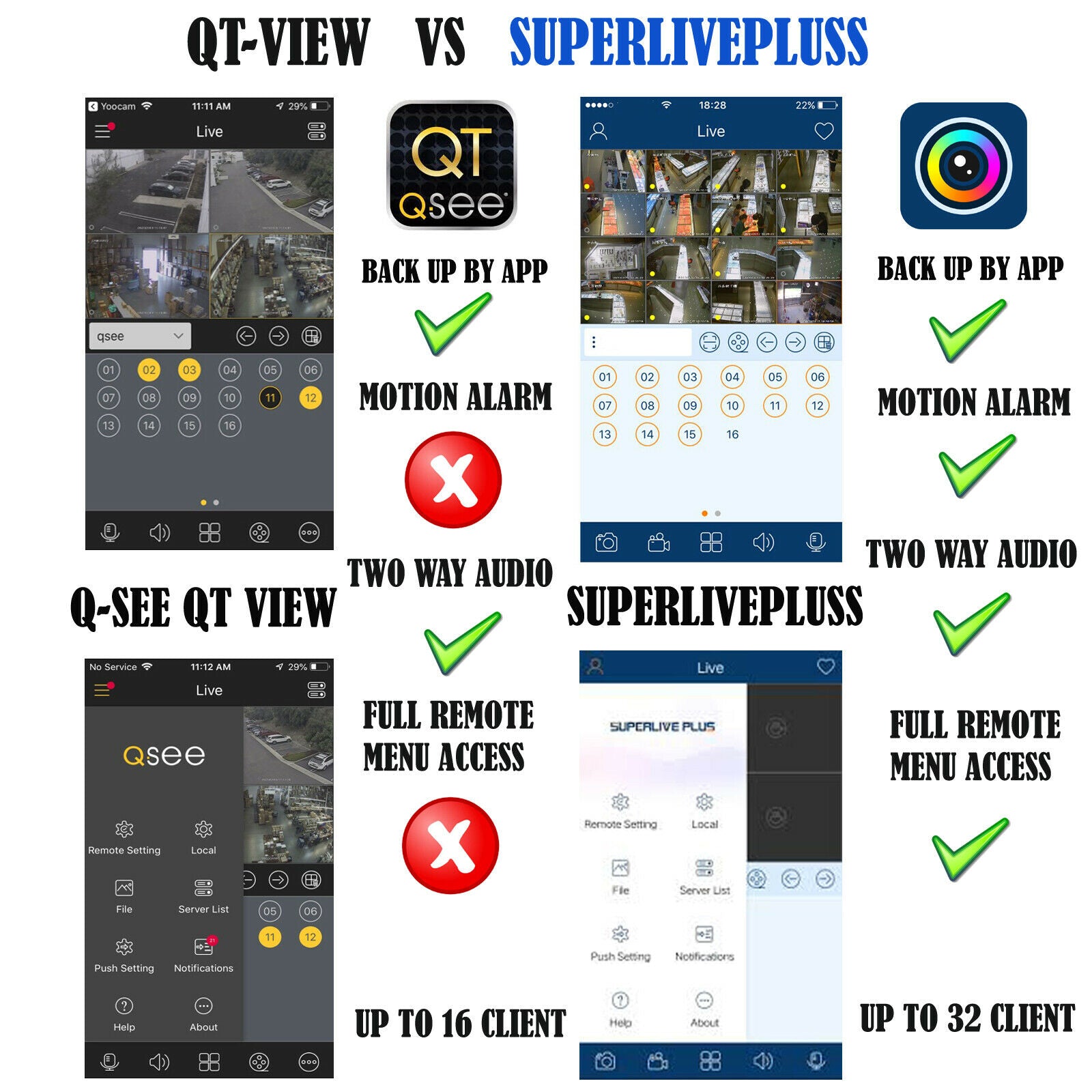

Powerful smartphone & Pad surveillance with iOS and Android OS
New than FW1.3.5?
Titanium DVR New Firmware Downloads

New FW1.3.5: Titanium DVR New Firmware Downloads
This Digital Video Recorder works with: Titanium HD Cameras
Weight 6.062705 lbs
Dimensions 6 ? 6 ? 6 in

Specification:

Design and specifications are subject to change without notice. www.ENSsecurity.com

ED8216H5-F
Compression
CPU
OS
Input BNC ?16
Resolu¢on
IP Input
Output

Input
Output
Two-way
audio
Resolu¢on

Frame Rate

Bit Rate
Mode
Resolu¢on
Frame Rate
Playback 16 CH
Search
Smart Search
Func¢on
Mode
Input 16 CH
Output 4 CH
Triggering
Interface
Protocol
Bandwidth
Mobile
Device OS
Storage HDD
Local Backup
Network
Backup
RS 485
USB
Remote
Controller
Power
Supply
Consump¢o
n ? 30W ( without HDD )
Dimensions(
mm)
Work
Environment
Others

DC12V / 4A

380 ? 268 ? 52 ( W ? D ? H )
-10~50?C, 10%~90% (humidity)

Backup

U disk, USB removable HDD
Yes

Port

RS 485 ? 1, connect to PTZ or keyboard
USB 2.0 ? 2
Op¢onal
Network RJ 45 1000Mbps ? 1

TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
32/96Mbps (access/transfer)
iOS, Andriod
SATA ? 2, up to 8TB per HDD; E-SATA ? 1

Playback

Time slice / ¢me / event / tag search
Highlight colors to display the camera record in a certain
period of ¢me, different colors refer to different record
events
Play, pause, FF, FB, digital zoom, etc.

Alarm

Manual, mo¢on, excep¢on
Record, snap, preset, e-mail, etc.

Record

4K/4K Lite/5MP/5MP Lite/4MP/4MP Lite / 1080P/
720P/WD1
4K@6/7fps (PAL/NTSC; 8CH: all channels support; 16 CH:
odd channels can support)
4K Lite@12fps/15fps (PAL/NTSC) 5MP@12fps (PAL /
NTSC)
5MP Lite@20fps (PAL / NTSC)
4MP@12fps(PAL) / 15fps (NTSC)
4MP Lite/1080P/720P/WD1@25fps (PAL) / 30fps (NTSC)
32Kbps ~ 5Mbps
Manual, ¢mer, mo¢on

IP Input 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P

25fps ( PAL ) / 30fps ( NTSC )

Video

TVI/AHD : 8MP/5MP/4MP/3MP/1080P/720P/WD1
CVI: 8MP/5MP/4MP/3MP/1080P/720P/WD1
HDMI ? 1 :
3840 ? 2160 / 1920 ? 1080 / 1280 ? 1024 / 1024 ? 768
VGA ? 1 : 1920 ? 1080 / 1280 ? 1024 / 1024 ? 768
BNC ? 1 : CVBS ( used as the main or spot output )

Audio

RCA ? 8
RCA ? 1
Take up channel one audio input

Model
System Standard H.265 High Profile

Cortex A9
Embedded Linux

8CH (up to 16CH
