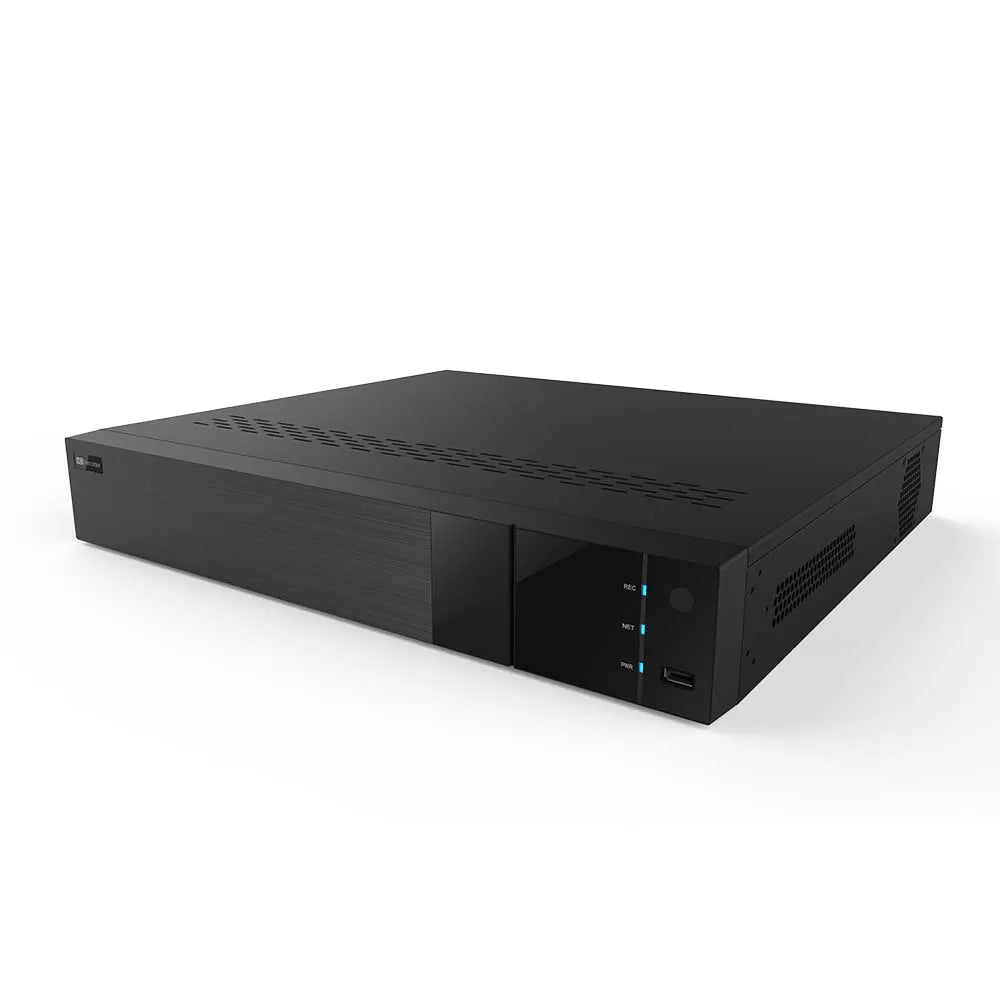

ED8432H5-DN || Titanium, DVR, 5MP Lite, 32CH, 4X SATA PORTS

? Max Recording Resolution: 5MP Lite
? Channels: 32CH
? LAN Ports: 1
? SATA: 4X SATA PORTS
? Video Outputs: HDMI / VGA
? NDAA Compliant: Yes
? Hardware Features: Alarm in, Alarm out, Audio in, Audio out, BNC Video Out

Product Description

32CH 5MP 4SATA Hybrid DVR Titanium ED8432H5-DN Features:

32 CH TVI/AHD/CVI video input
32 CH DVRs support 8 CH IP video input
16CH Analog video input can be switched to 16CH IP video input
Alarm in/Alarm out: 16CH/4CH
Adopt standard H.265 high profile compression format to get high-quality video at a much lower bit rate
Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
Search: time slice, time, event, tag, and smart search
Express and flexible backup via USB, network, and so on
Pentaplex: preview, record, playback, backup, and remote access
DHCP, DDNS, PPPoE network protocol
Remote control via Web Client or CMS: preview, playback, backup, PTZ, and configuration
Authorization management, log review, and device status review
1080P output, true high-resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
Support NAT function and QRCode scanning by mobile phones
Powerful mobile surveillance by smartphones with iOS and Andriod OS
General:

Power Supply: ATX-250W
Consumption: ? 30W ( without HDD )
Dimensions (mm): 440 ? 390 ? 70 ( W ? D ? H )
Working Environment: -10~50?C, 10%~90% (humidity)
Certificate: CE, FCC
Environmental Protection: Comply with Directive EU RoHS, WEEE, REACH
This 32CH 5MP 4SATA Hybrid DVR Titanium ED8432H5-DN is highly recommended to work with:
IP Network Cameras ? TITANIUM IPC

Coaxial Cameras ? Titanium HD Cameras

Weight 13.448182 lbs
Dimensions 21.653555 ? 5.511814 ? 18.2677264 in

Product Specifications
ENS Titanium Series | ED8432H5-DN

System
Main Processor Embedded Processor
Operating System Embedded LINUX
Port
RS 485 Yes (full-duplex), connect to PTZ or keyboard
USB USB 2.0 ? 1; USB 3.0 ? 1
Remote Controller Optional
Video and Audio
IP Video Input 8CH (up to 24CH), Up to 5MP@30fps
Total Input 40CH
AI Search

HDMI ? 1 : 1920?1080 /1280?1024 /1024?768
VGA ? 1 : 1920?1080 /1280?1024 /1024?768
BNC ? 1 : CVBS ( used as the main or spot output )

Input/Output

H.264/H.265
1/4/6/8/9/13/16/25/32/36
RCA ? 16
RCA ? 1 (linear, 600?)
Two-way audio Take up channel one audio input
Compression G.711(U/A)
Alarm
Input/Output

Manual, motion, exception, smart event
16CH/ 4CH

Playback
Playback 16CH
Search Time slice / time / event / tag /smart search
Smart Search Play, pause, FF, FB, digital zoom, etc.
TVI Camera Input
CVBS Camera Input PAL/NTSC
IP Camera Input 32 channels, each channel up to 12MP
Audio In/Out 4/1, BNC
Two-way Talk Yes
Recording
Bit Rate 32Kbps ~ 5Mbps
Resolution 5MP Lite/4MP Lite / 1080P/1080P Lite/720P/

WD1/D1

Frame Rate

Analog Channel:
5MP Lite@10fps (PAL / NTSC)
4MP Lite/1080P@12fps(PAL) / 15fps (NTSC)
1080P Lite/720P/WD1/D1@25fps (PAL) /30fps
IP Channel: 25fps (PAL) / 30fps (NTSC)

Interface RJ 45 1000Mbps ? 1
Protocol

TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP,
HTTP, HTTPs, NTP, SMTP

Incoming Bandwidth 40Mbps
Outgoing Bandwidth 160Mbps
Client Connection Max. 15users access
OS iOS, Andriod
Storage and Backup
HDD SATA?4, up to 10TB per HDD; E-SATA?1
Local Backup U disk, USB mobile HDD

Yes

RS 485 Yes (full-duplex), connect to PTZ or keyboard
OSD Camera title, Time, Video loss, Camera lock,
Motion detection, Recording

General
Power Supply ATX-250W
Consumption

Working Environment -10~50?C, 10%~90% (humidity)
Certificate CE, FCC
Environmental Protection Comply with Directive EU RoHS, WEEE, REACH
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP,
Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 ? 18), Video

Loss, Tampering and Diagnosis

Alarm input 16
Relay Output 6
Playback and Backup
Playback 1/4/9/16
Search Mode Time /Date, Alarm, MD and Exact Search

(accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play,
Next File, Previous File, Next Camera, Previous
Camera, Full Screen, Repeat, Shuffle, Backup
Selection, Digital Zoom
Backup Mode USB Device/Network
Storage
Internal HDD 4 SATA Ports, up to 10TB capacity for each disk
eSATA
