Product Description

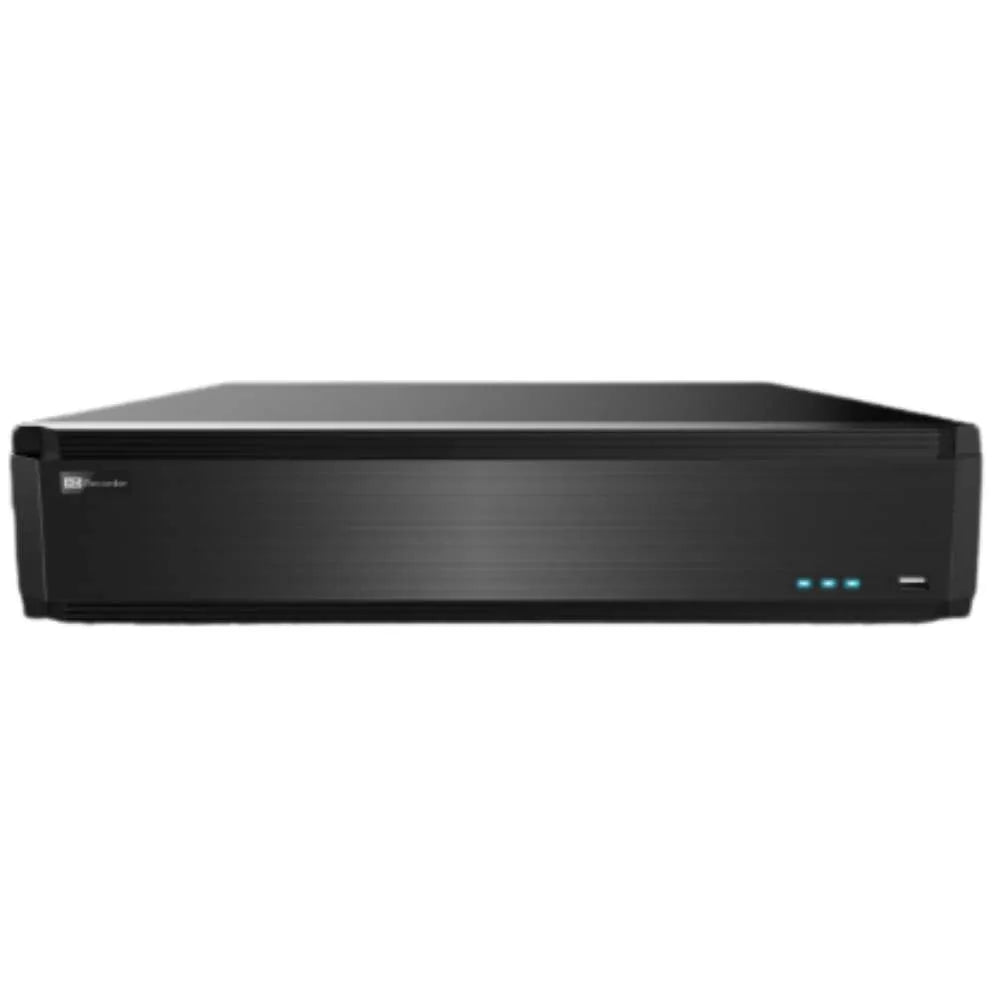

ED8632H5-FN || Titanium, DVR, 8MP, 32CH, 8X SATA PORTS

? Max Recording Resolution: 8MP
? Channels: 32CH
? LAN Ports: 2
? SATA: 8X SATA PORTS
? Video Outputs: HDMI / VGA, HDMI 2
? NDAA Compliant: Yes
? Hardware Features: Alarm in, Alarm out, Audio in, Audio out, BNC Video Out, Raid.

Product Specification Description

• 32 CH TVI / AHD/CVI 8MP/5MP/ 4MP/ 3MP / 1080P / 720P / WD1 video input
• 32 CH DVRs support 8 CH 8MP/5MP / 4MP / 3MP / 1080P / 960P / 720P IP video input
• 8CH analog video input can be switched to 8CH IP video input
• Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
• Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
• Multi-type recording: manual / timed / sensor / motion /AI recording
• Playback : 16 CH simultaneously playback
• Search: time slice, time, event, tag and smart search
• Express and flexible backup via USB, network and so on
• Supports local preview, record, playback and backup
• DHCP, DDNS, PPPoE network protocol
• Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
• Multi-user online simultaneously
• Authorization management, log review and device status review
• 4K output, true high resolution display
• Supports PTZ preset and auto cruise, up to 255 presets and 8 cruises
• Supports RAID 0, 1, 5, 6, 10
• Supports NAT function and QRCode scanning by mobile phones
• Powerful mobile surveillance by smart phones with iOS and Andriod OS

Specifications

445 ? 436 ? 90( W ? D ? H )
ATX-200W

Playback

Network

-10~50?C, 10%~90% (humidity)
HDMI 1 : 3840 ? 2160 / 1920 ? 1080 / 1280 ? 1024
HDMI 2 : 1920 ? 1080 / 1280 ? 1024 / 1024 ? 768( HDMI1 and HDMI2 output different video sources)
VGA ? 1 : 1920 ? 1080 / 1280 ? 1024 (VGA and HDMI1 output the same video source)
BNC ? 1 : CVBS ( used as the main or spot output )

? 50W ( without HDD )
RCA ? 16
RCA ? 1 (linear, 600?)

16CH
8CH
32Kbps ~ 5Mbps

USB 2.0 ? 2; USB 3.0 ? 1

Model ED8632H5-FN

Audio

Working Environment
System

Video

OS
Analog Video Input

IP Video Input
Total Input
Output

Input
Output
Two-way audio
Resolution
Frame Rate
Bit Rate
Playback
Search
Smart Search
Function
Input
Output

Interface
Protocol
Incoming Bandwidth

OS
HDD
RAID
Local Backup
Network Backup
RS 485
USB
Remote Controller
Power Supply
Consumption
Dimensions(mm)

Embedded Linux
BNC ? 32

8CH (up to 16CH)

16CH
TVI/AHD/CVI : 4K@15fps; 5MP@20fps; 4MP/3MP/1080P/720P/WD1@25fps/30fps (live)

Take up channel one audio input
4K/4K Lite / 5MP/5MP Lite/4MP/4MP Lite/3MP/1080P/1080P Lite/720P/WD1/D1

Time slice / time / event / tag /smart search
Highlight colors to display the camera record in a certain period of time, different colors refer to different record events
Play, pause, FF, FB, digital zoom, etc.

RJ 45 1000Mbps ? 2
TCP / IP, HTTP, HTTPS, 802.1x, DHCP, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IPv6, UDP, WebSocket, PPPoE, SNMP, IGMP
48Mbps (max. 96Mbps)

iOS, Andriod
SATA?8, up to 10TB per HDD
U disk, USB mobile HDD
Yes
Yes (full-duplex), connect to PTZ or keyboard
Optional

Record

Alarm

MobileDevice
Storage
Backup
Port

Others

Up to 8MP@30fps
40CH

Compression

Compression

H.264/H.265

G.711(U/A)
BNC interface (1.0Vp-p; 75?)

Outgoing Bandwidth 192Mbps
Multi-screen Display

Main output: 1/4/6/8/9/13/16/25/32/36
AUX. output:1/4/6/8/9
Total output: 36+9

Client Connection Max. 20 users access

Comply with Directive EU RoHS, WEEE, REACH
