Product Description

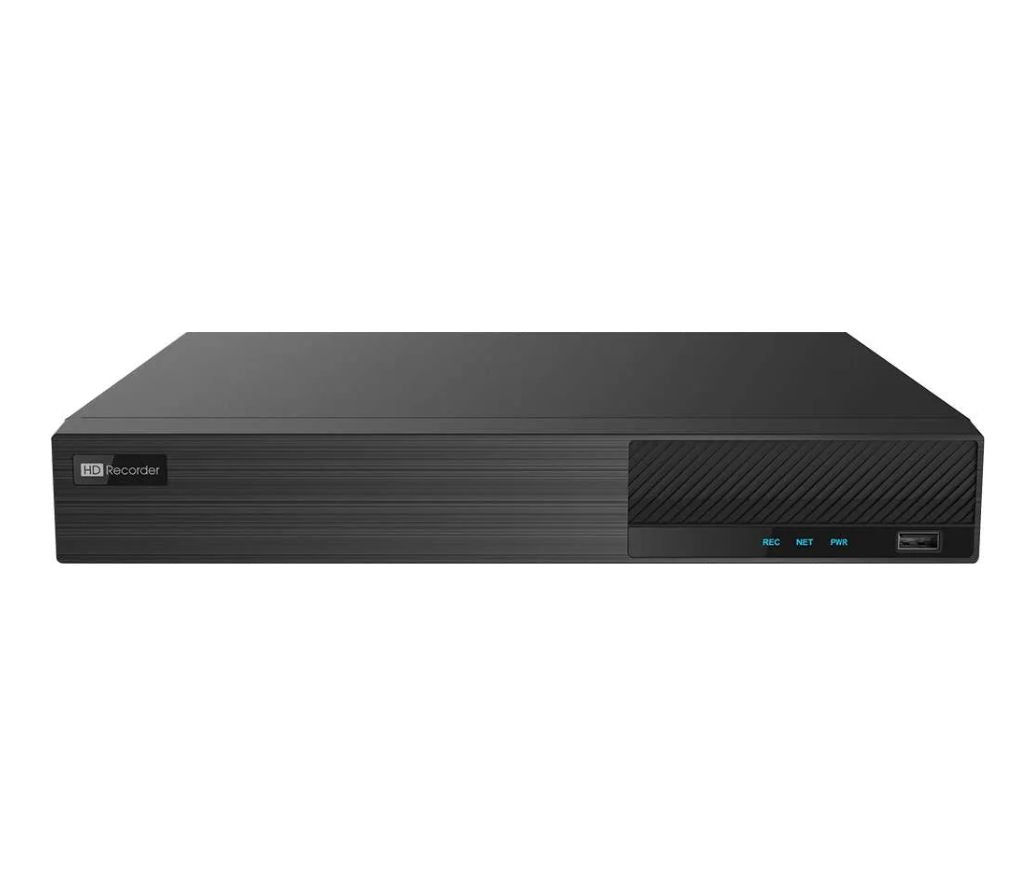

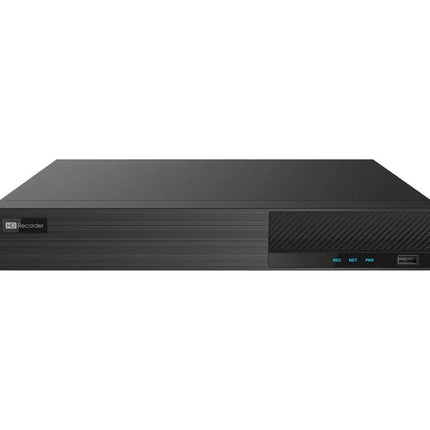

Titanium 8Ch 8PoE High Definition NVR ED9308H5NV-8P-3N

? Max Recording Resolution: 8MP
? Channels: 8CH
? Built-in POE : 8 Port PoE
? LAN Ports: 1
? SATA: 1X SATA PORT
? Video Outputs: HDMI / VGA
? NDAA Compliant: Yes
? VCA Features: Basic VCA, Human / Vehicle Classification, People Counting, POS / Point of Sale
? Hardware Features: Audio in, Audio out

Titanium 8Ch 8PoE High Definition NVR Features

• Support 8ch 8MP/6MP/5MP/4MP/3MP/1080P/1280?1024/960P/720P/ 960H/ DI/CIF IP video input
• Adopt standard H.265 and H.264 high profile compression format to get high-quality video at the much lower bit rate
• Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
• Multi-mode recording: manual / timed / motion / sensor / POS / AI recording
• Playback: 8chs simultaneous playback
• Search: time slice, time, event, tag, smart search
• Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc.
• Support POS information overlay on live view and playback
• Express and flexible backup via USB, network, and so on
• Pentaplex: preview, record, playback, backup, and remote access
• DHCP, DDNS, PPPoE network protocol
• Remote control via Web or CMS: preview, playback, backup, PTZ, and configuration
• 8 PoE network ports; IPC can be directly connected to NVR; PoE power supply supported
• Dual stream technology for local storage with high definition, remote network transmission, and remote surveillance with the mobile device
• Multi-user online simultaneously
• Authorization management, log view, and device status view
• 4K output, true high-resolution display
• Support NAT function and QR Code scanning by mobile phones
• Powerful mobile surveillance by smartphones with iOS and Android OS

This Titanium 8Ch 8PoE High Definition Networking Video Recorder(NVR) works with: IP Security Camera
