Product Description

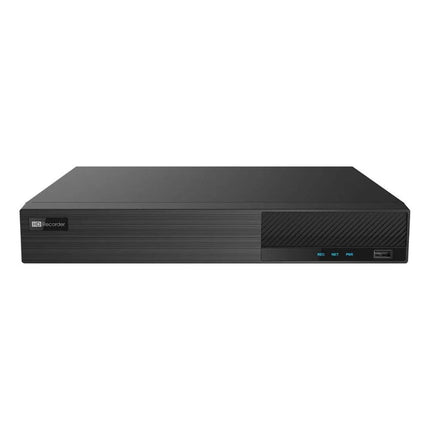

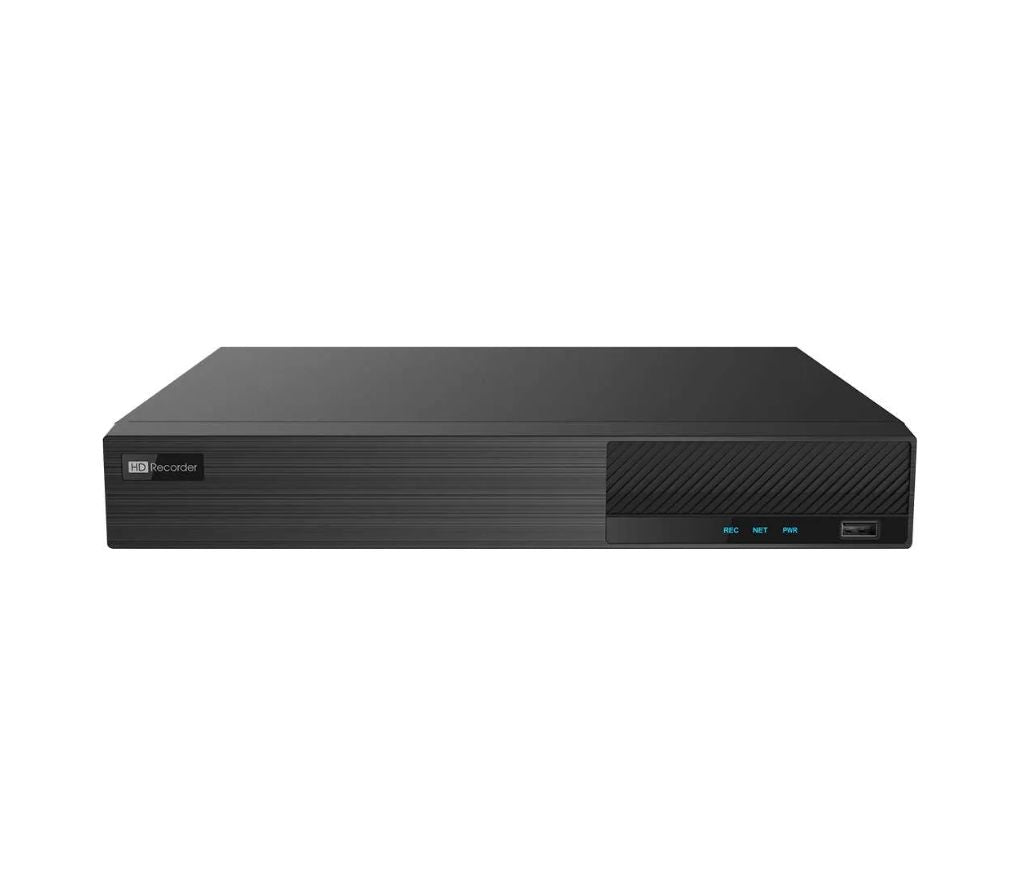

ED9516H5NV-16ports-3N || Titanium, NVR, 8MP, 16CH, 2X SATA PORTS

? Max Recording Resolution: 8MP
? Channels: 16CH
? Built-in POE : 16 Port PoE
? LAN Ports: 1
? SATA: 2X SATA PORTS
? Video Outputs: HDMI / VGA
? NDAA Compliant: Yes
? VCA Features: Basic VCA, Human / Vehicle Classification, LPR, POS / Point of Sale
? Hardware Features: Audio in, Audio out

• Supports 16CH 6MP/5MP/4MP/3MP/1080P/ 960P/720P/960H/DI/CIF IP video input
• H.265S/H.265 /H.265/H.264 coding
• Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
• Multi-mode recording: manual / timed / motion / sensor/ POS / AI recording
• Playback : 16CH simultaneous playback
• Search : time slice, time, event, tag and smart search
• Supports multiple VCA (Video Content Analytics) events, such as object
• Abandoned/Missing, region intrusion, tripwire, video exception, etc.
• Supports POS information overlay on live view and playback
• Express and flexible backup via USB, network and so on
• Pentaplex : preview, record, playback, backup and remote access
• DHCP, DDNS, PPPoE network protocol
• Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
• 16 PoE network ports; PoE power supply supported
• Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
• Multi-user online simultaneously
• Authorization management, log view and device status view
• 4K ultra high definition output, true high resolution display
• Supports NAT function and QRCode scanning by mobile phones
• Powerful mobile surveillance by smart phones with iOS and Andriod OS
