Product Description

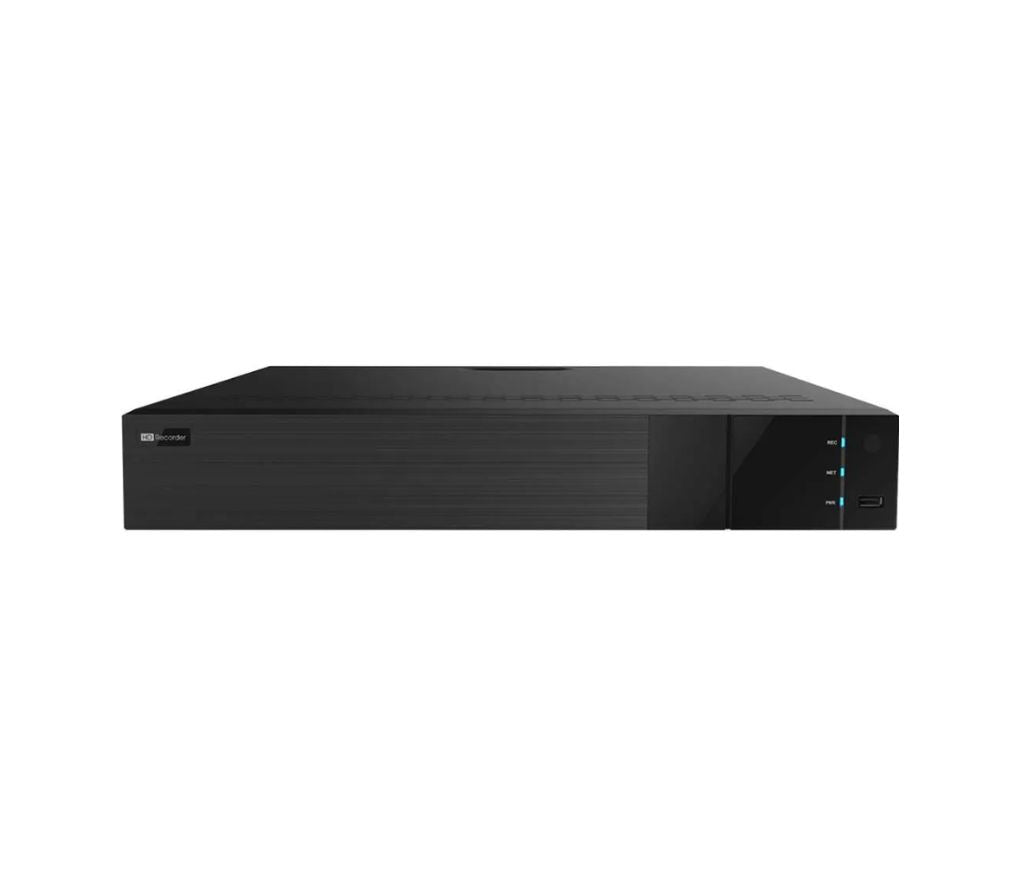

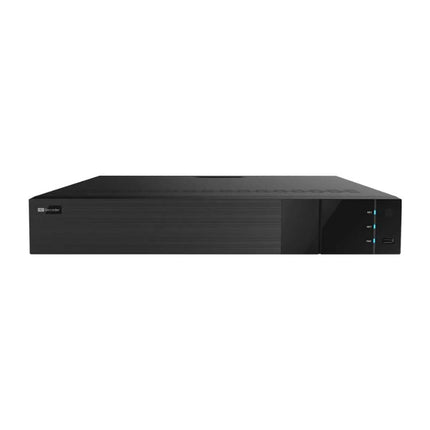

16Channels 16portsoE Titanium 8MP Face Recognition NVR ED9616H5NV-16ports-A

? Max Recording Resolution: 8MP
? Channels: 16CH
? Built-in POE : 16 Port PoE
? LAN Ports: 1
? SATA: 4X SATA PORTS
? Video Outputs: HDMI, VGA
? NDAA Compliant: No
? VCA Features: Basic VCA, Face Detection, Facial Recognition, Fisheye Dewarping, Human / Vehicle Classification, LPR, People Counting, POS / Point of Sale
? Hardware Features: Alarm in, Alarm out, Audio in, Audio out

16Channels 16portsoE Titanium 8MP Face Recognition NVR Features

• Support 16 CH 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input
• Adopt standard H.265 high profile compression format to get high-quality video at a much lower bit rate
• Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
• Multi-mode recording: manual / timer / motion / sensor
• Playback: 16 CH simultaneous playback
• Search: time slice, time, event, tag, smart and target database search
• Face Picture Database:16 libraries 10000 Face Pictures
• Computing Capability:240 pictures / minute
• Face Picture Search: Search by picture is supported
• Database Management: Add, modify, delete and search face pictures
• Face Picture Adding: Add face pictures through APP, WEB and local PC
• External face picture enrollment: Resolution:64 x 64 ~ 1920 x 1080 Size: less than 200KB Format : jpg
• Face Picture Comparison: Support allow list and block list alarm
• Face Trace: yes
• Map of Face Trace:Reolution:600 x 300 ~ 3840 x 2160 Size: within 200KB, Format : jpg
• Statistic Graph of Face Information: Bar graph, pie chart
• Statistic Mode of Face Information: Statistics by day, week, month, quarter as well as customized time period
• Support face detection and comparison
• Express and flexible backup via USB, network and so on
• Pentaplex: preview, record, playback, backup, and remote access
• DHCP, DDNS, PPPoE network protocol and CMS supported
• Remote control via IE or CMS: preview, playback, backup, PTZ and configuration
• 16 PoE network ports, support IPC direct connection to NVR; support PoE power supply
• Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with the mobile device
• Multi-user online simultaneously
• Authorization management, log view and device status view
• 4K output, true high-resolution display
• Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
• Support NAT function and QRCode scanning by mobile phone and PAD
• Powerful smart phone & Pad surveillance with iOS and Andriod OS

This Networking Video Recorder(NVR) in Titanium Series works with:

Titanium IP Security Camera
