Data sheet PDF Product Description

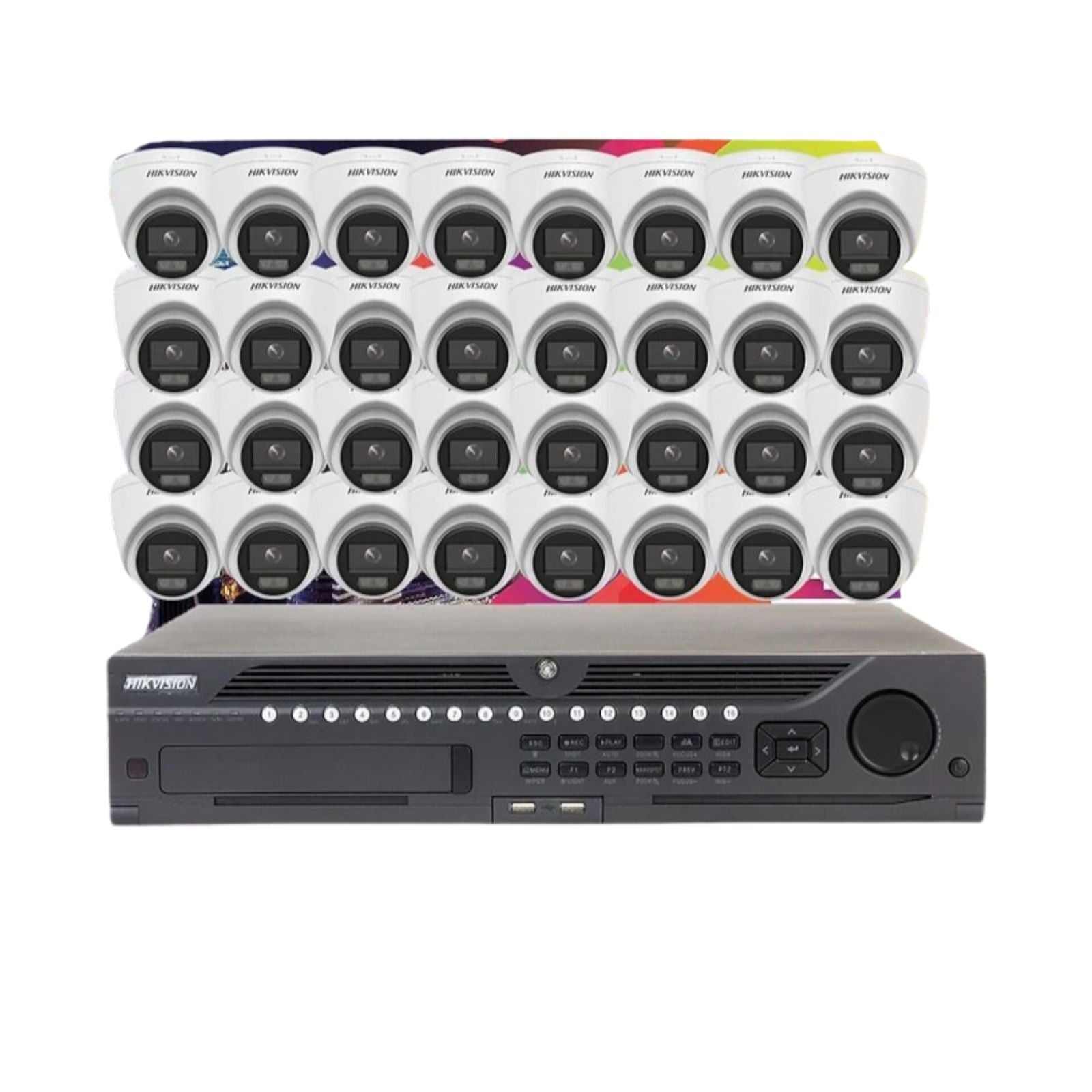

5 MP ColorVu Fixed Turret Network Camera
High quality imaging with 5 MP resolution 24/7 colorful imaging Excellent low-light performance Water and dust resistant (IP67) Efficient H.265+ compression technology Specification
Camera Image Sensor1/2.7" Progressive Scan CMOS Max. Resolution2560 ? 1920 Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light Shutter Time1/3 s to 1/100,000 s Day & Night24/7 color imaging Angle AdjustmentPan: 0? to 360?,tilt: 0? to 75?,rotate: 0? to 360? Lens Lens TypeFixed focal lens, 2.8 and 4 mm optional Focal Length & FOV2.8 mm, horizontal FOV 95?, vertical FOV 70?, diagonal FOV 125?
4 mm, horizontal FOV 76?, vertical FOV 57?, diagonal FOV 98?
Lens MountM12 Iris TypeFixed ApertureF1.0 Depth Of Field2.8 mm: 2 m to ?
4 mm: 2.7 m to ?
DORI DORI2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m
Illuminator Supplement Light TypeWhite Light Supplement Light RangeUp to 30 m Smart Supplement LightYes Video Main Stream50 Hz:
20 fps (2560 x 1920)
25 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 720)
60 Hz:
20 fps (2560 x 1920)
30 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 720)
Sub-Stream50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)
60 Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)
Video CompressionMain stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps H.264 TypeBaseline Profile,Main Profile,High Profile H.265 TypeMain Profile Bit Rate ControlCBR,VBR Region Of Interest (ROI)1 fixed region(s) for main stream Audio Audio Type-U: Mono sound Environment Noise Filtering-U: Yes Audio Sampling Rate-U: 8 kHz/16 kHz Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC Audio Bit Rate-U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) Network ProtocolsTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour,FTP,802.1x,SMTP Simultaneous Live ViewUp to 6 channels APIOpen Network Video Interface (Profile S, Profile G ((only -U model supports)),ISAPI,SDK User/HostUp to 32 users
3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,security audit log, TLS 1.2, host authentication (MAC address) ClientiVMS-4200,Hik-Connect Web BrowserPlug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+
Image Wide Dynamic Range (WDR)120 dB SNR? 52 dB Day/Night SwitchDay,Night,Auto,Schedule Image EnhancementBLC,HLC,3D DNR Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser Privacy Mask4 programmable polygon privacy masks Interface Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage-F: Built-in memory card slot, support MicroSD/SDHC/SDXC card, up to 256 GB Built-In Microphone-U: Yes Reset Key-F: Yes Event Basic EventMotion detection,video tampering alarm,exception LinkageUpload to FTP/memory card (-F), notify surveillance center, send email, trigger recording (-F), trigger capture General Power12 VDC ? 25%, 0.4 A, max. 5 W,?5.5 mm coaxial power plug,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
MaterialMetal & Plastic Dimension?109.9 mm ? 10 (?4.3 ? 4.1\")"
Package Dimension150 mm ? 150 mm ? 141 mm (5.9" ? 5.9" ? 5.6") Weight-L: Approx. 390 g (0.9 lb) -LUF: Approx. 410 g (0.9 lb)
With Package Weight-L: Approx. 630 g (1.4 lb) -LUF: Approx. 650 g (1.4 lb)
Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing) Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing) LanguageEnglish, Ukranian General FunctionHeartbeat,anti-flicker,mirror,password protection,password reset via email Approval EMCFCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
KC: KN32: 2015, KN35: 2015
SafetyUL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
EnvironmentCE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013
Data sheet PDF Product Description

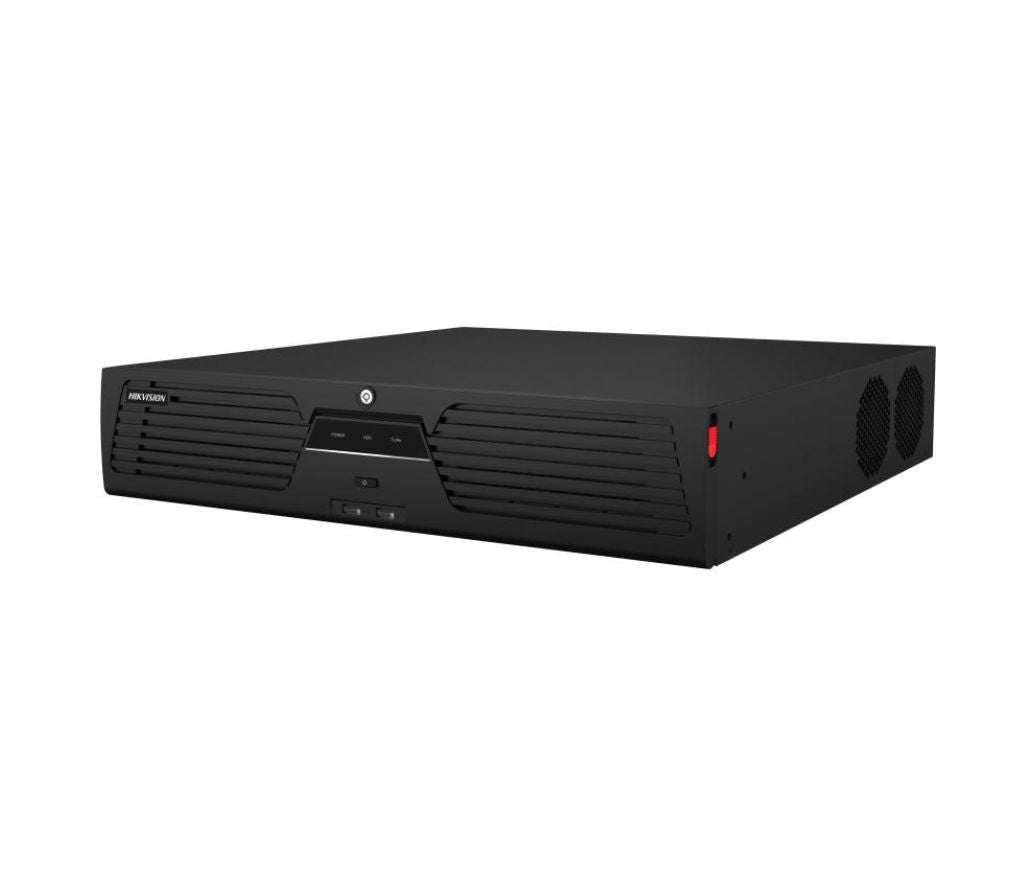

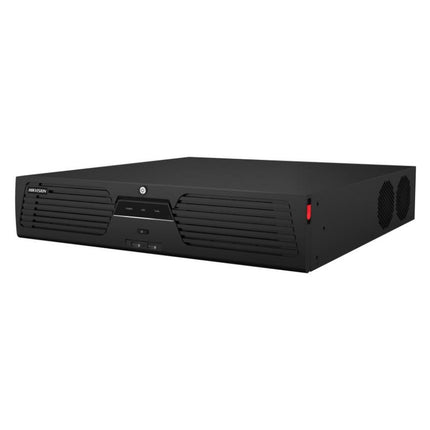

32ch 2U 8K NVR
Up to 32ch IP camera inputs Up to 2-ch@32 MP/2-ch@24 MP/4ch@12 MP/8ch@8 MP/16ch@4 MP/32ch@1080p decoding capacity Up to 320 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth 2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera Advanced streaming technology enables smooth live view in poor network conditions Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks Specification
Video And Audio IP Video Input32ch Incoming Bandwidth320 Mbps Outgoing Bandwidth400 Mbps HDMI 1 Output8K (7680 ? 4320)/30 Hz, 4K (3840 ? 2160)/60 Hz, 4K (3840 ? 2160)/30 Hz, 2K (2560 ? 1440)/60 Hz, 1920 ? 1080/60 Hz, 1600 ? 1200/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz, 1024 ? 768/60 Hz HDMI 2 Output4K (3840 ? 2160)/60 Hz, 4K (3840 ? 2160)/30 Hz, 2K (2560 ? 1440)/60 Hz, 1920 ? 1080/60 Hz, 1600 ? 1200/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz, 1024 ? 768/60 Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
VGA 1 Output1920 ? 1080/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz, 1024 ? 768/60 Hz VGA 2 Output1920 ? 1080/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz, 1024 ? 768/60 Hz Video Output ModeHDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;
HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480 Audio Output2-ch, RCA (Linear, 1 K?) Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input) Decoding Decoding FormatH.265+/H.265/H.264+/H.264 Recording Resolution32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback16ch Decoding Capability2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps) Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM Network Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface RAID RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10 Auxiliary Interface Serial Interface1 RS-485 (full-duplex), 1 RS-232 SATA8 SATA interfaces supporting hot-plug ESATA1 eSATA interface CapacityUp to 16 TB capacity for each disk Alarm In/Out16/9 USB InterfaceFront panel: 2 ? USB 2.0; Rear panel: 2 ? USB 3.0 Ctrl 12VControllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.
*: The Ctrl 12V power is controlled by alarm output 9.
DC 12V12 VDC, 1 A power output General Power Supply100 to 240 VAC, 50 to 60 Hz Consumption? 50 W (without HDD) Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F) Working Humidity10% to 90% Chassis2U chassis Dimension (W ? D ? H)445 ? 465 ? 93 mm ( 17.5"? 18.3" ? 3.7") Weight? 10 kg (without HDD, 22 lb.) Certification Obtained CertificationCE, FCC CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
